Hikvision iDS-7204HTHI-M1/XT 4-ch 4K 1U H.265 AcuSense DVR
Hikvision
- AcuSense Technology
- Audio over Coax
- 3 year guarantee
The Hikvision iDS-7204HTHI-M1/XT is a hybrid AcuSense network NVR with 4 analogue channels & 4 IP channels (up to 8 IP channels in enhaced IP mode). (Read more)
PRODUCT DETAILS
The Hikvision iDS-7204HTHI-M1/XT is a hybrid network NVR with 4 channels that can record from analogue cameras with a resolution up to 8MP and 4 IP channels that can record from network cameras up to 8mp. A further 4 IP channels can be created using the enhanced IP mode, making a maximum of 12 channels.
The iDS-7204HTHI-M1/XT also features intelligent AcuSense technology which can be provided to non AcuSense cameras on all analogue channels. The clever AcuSense AI will only alert the user when it recognises a human form and will eliminate false alarms caused by animals or other non-flag events.

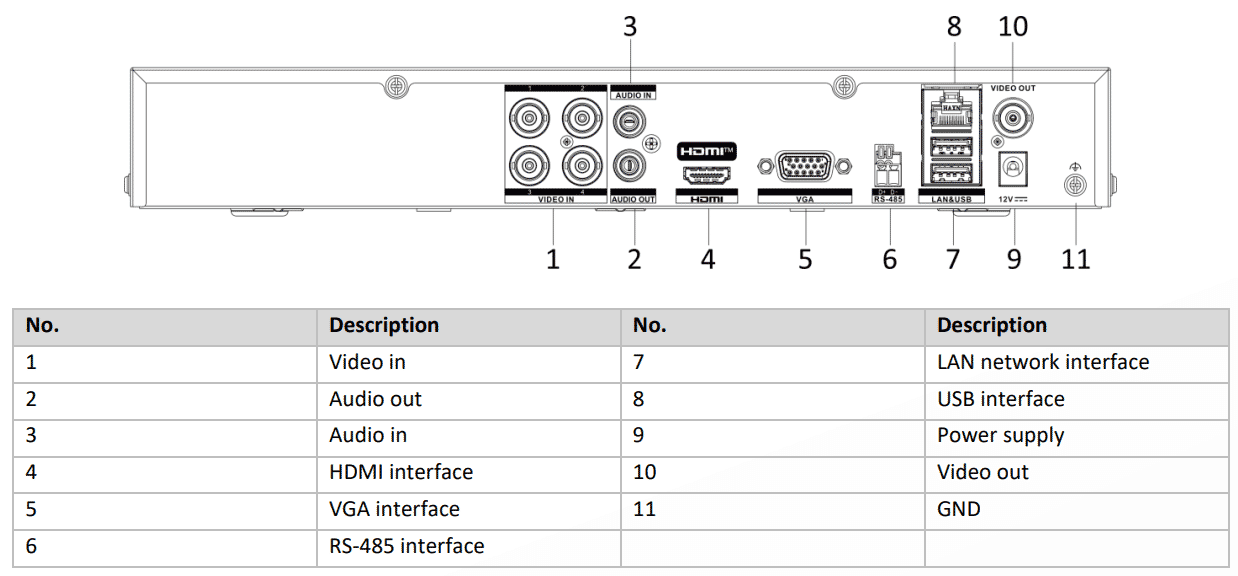

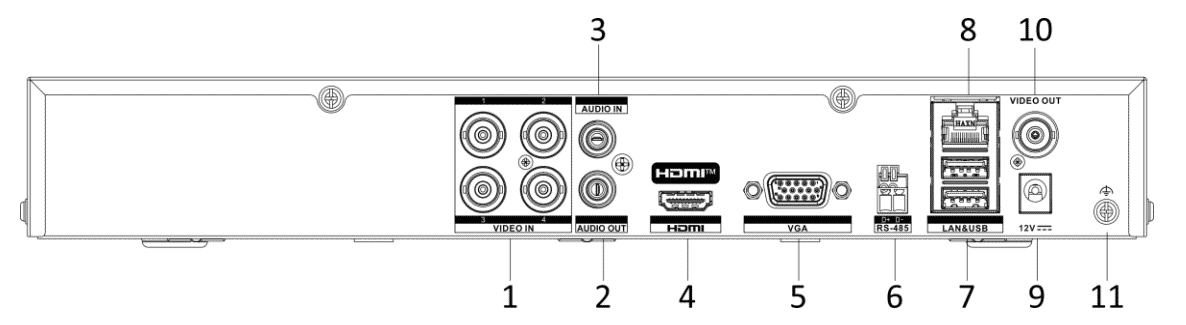

Interface
| No | Description |
|---|---|
| 1 | Video in |
| 2 | Audio out |
| 3 | Audio in |
| 4 | HDMI interface |
| 5 | VGA interface |
| 6 | RS-485 interface |
| No | Description |
|---|---|
| 7 | LAN network interface |
| 8 | USB interface |
| 9 | Power supply |
| 10 | Video out |
| 11 | GND |
Features:
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Encoding ability up to 4K/8MP@ 15fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection technology
- Support HDTVI Two-Way Audio technology
- Efficient H.265 pro+ compression technology
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison | Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analogue camera) |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Video and Audio | |
| IP Video Input | 4-ch (up to 8-ch), each up to 8 MP |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous Playback | 4-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | Main stream: 8 MP@12/15 fps/3K@25/20 fps/5 MP@20 fps/4MP/1080P@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 16 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
