Hikvision iDS-7204HUHI-M1/PXT 4-ch 3K 5MP 1U AcuSense DVR
Hikvision
- AcuSense Technology
- Power over Coax
- 3 year guarantee
The Hikvision IDS-7204HUHI-M1/PXT is an 4-channel AcuSense hybrid network DVR that can record from analogue cameras up to 5MP & 8 IP cameras up to 8MP (Read more)
PRODUCT DETAILS
The Hikvision IDS-7204HUHI-M1/PXT is a hybrid digital video recorder (DVR) with 4 BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras up to 5 mega-pixel, and 8 IP cameras up to 8MP. The IDS-7204HUHI-M1/PXT can support 12 cameras in total when combining analogue and IP cameras. The IDS-7204HUHI-M1/PXT also features intelligent AcuSense deep learning technology, and facial recognition.
The IDS-7204HUHI-M1/PXT features deep learning-based AcuSense by default for all analogue channels, which can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and animals. Other deep learning features include face picture comparison and face picture search. It also supports AoC (Audio over Coax) and PoC (Power over Coax) which reduces the number of cables required and speeds up installation time.

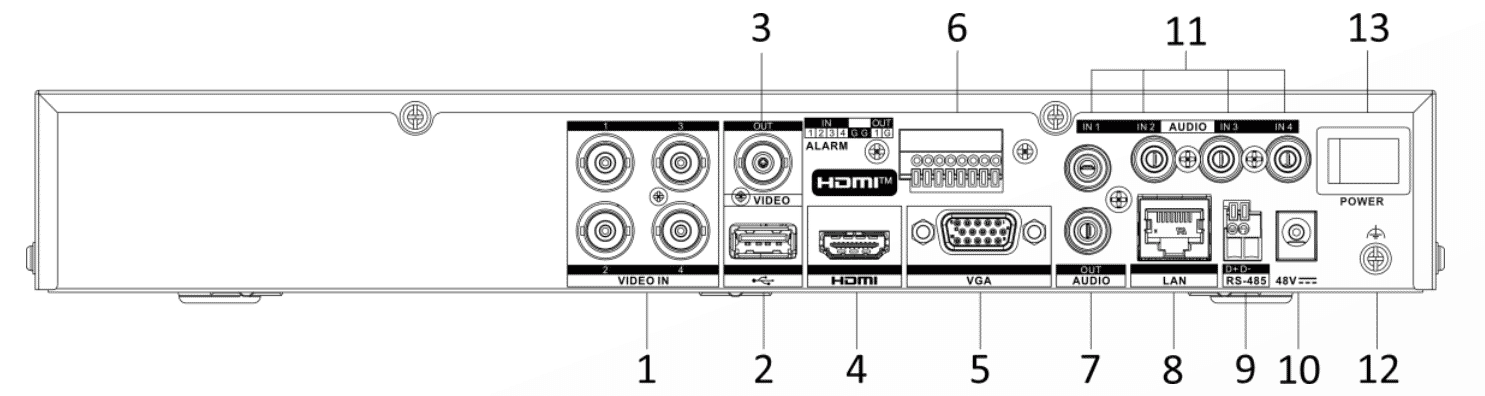

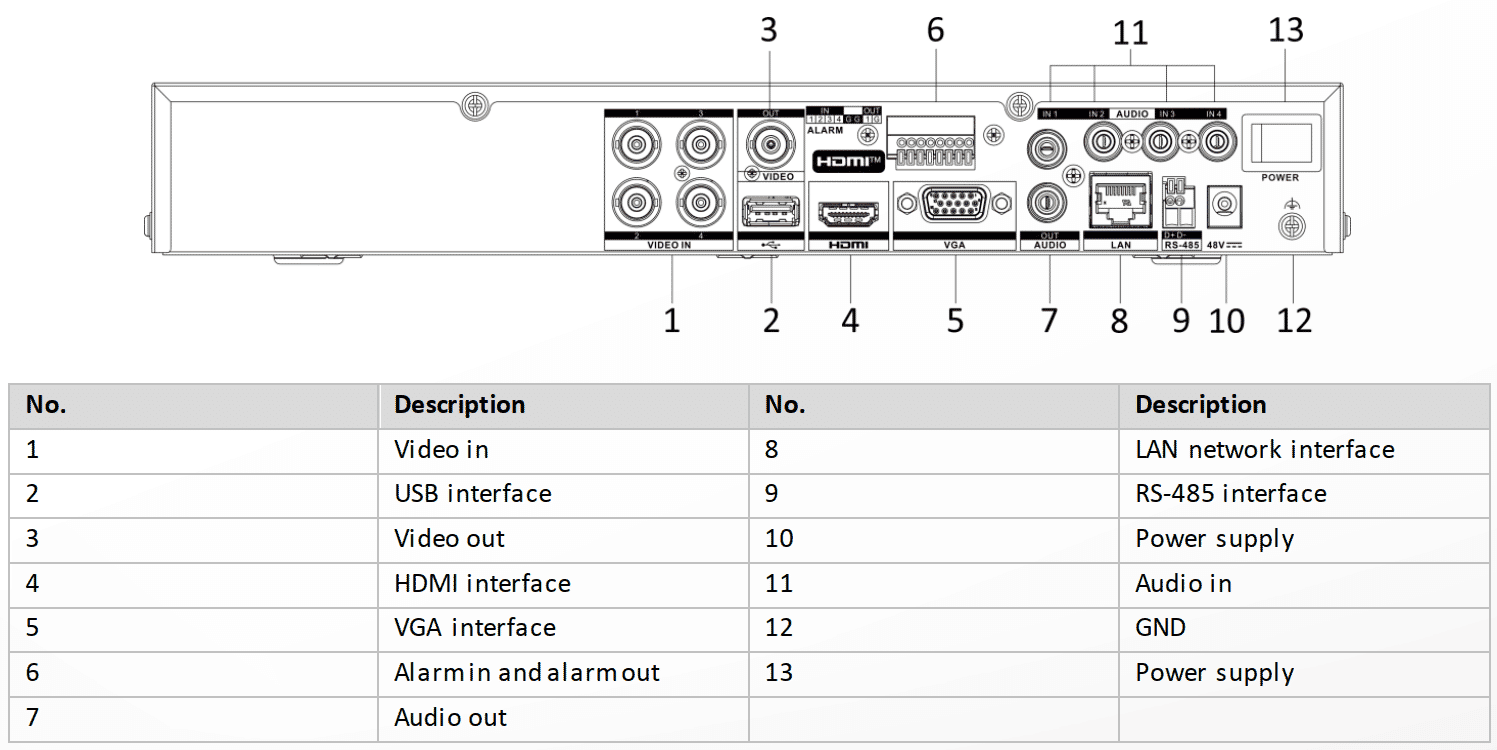

Interface
| No | Description |
|---|---|
| 1 | Video in |
| 2 | USB interface |
| 3 | Video out |
| 4 | HDMI interface |
| 5 | VGA interface |
| 6 | Alarm in and alarm out |
| 7 | Audio out |
| No | Description |
|---|---|
| 8 | LAN network interface |
| 9 | RS-485 interface |
| 10 | Power supply |
| 11 | Audio in |
| 12 | GND |
| 13 | Power supply |
Features:
- 4 channels and 1 HDD 1U AcuSense PoC DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection technology
- Support HDTVI Two-Way Audio technology
- Efficient H.265 pro+ compression technology
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison | Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analogue camera) |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Video and Audio | |
| IP Video Input | 4-ch (up to 8-ch), each up to 8 MP |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| PoC Camera Input | Support Hikvision PoC camera |
| HDMI Output | 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous Playback | 4-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | ≤ 20 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision iDS-7204HUHI-M1/PXT Datasheet |
| Hikvision iDS-7204HUHI-M1/PXT Quick Start Guide |
| Hikvision iDS-7204HUHI-M1/PXT User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
