Hikvision iDS-7216HUHI-M2/PXT 16 Channel 5MP 1U AcuSense PoC DVR
Hikvision
- AcuSense Technology
- Power over Coax
- 3 year guarantee
The Hikvision IDS-7216HUHI-M2/PXT is a 16 Channel (up to 48 channel), 5-megapixel Acusense Hybrid DVR that supports both Audio and Power over Coax (Read more)
PRODUCT DETAILS
The Hikvision IDS-7216HUHI-M2/PXT is a hybrid digital video recorder (DVR) with 16 analogue BNC inputs that supports analogue TVI/CVI/AHD cameras up to 5 mega-pixel, and 16 IP cameras up to 8MP (32 IP cameras can be added when used in Enhanced IP mode). The IDS-7216HUHI-M2/PXT can support 48 cameras in total when combining analogue and IP cameras. The IDS-7216HUHI-M2/PXT also features intelligent AcuSense deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection). It also supports PoC (Power over Coax), which reduces the number of cables required and speeds up installation time.

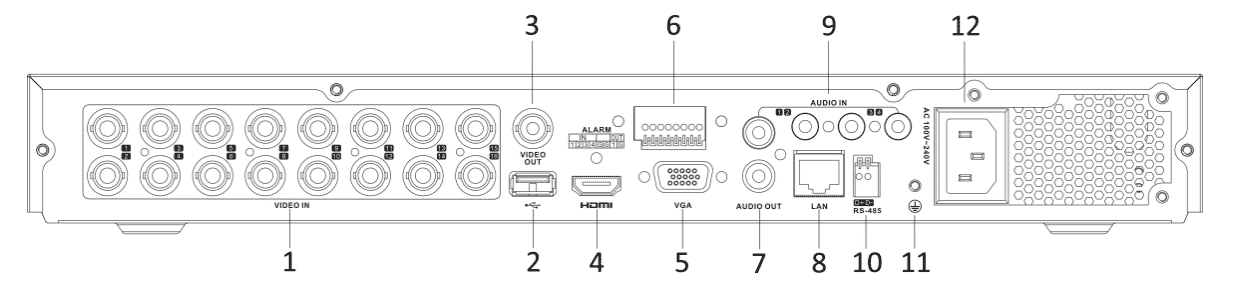

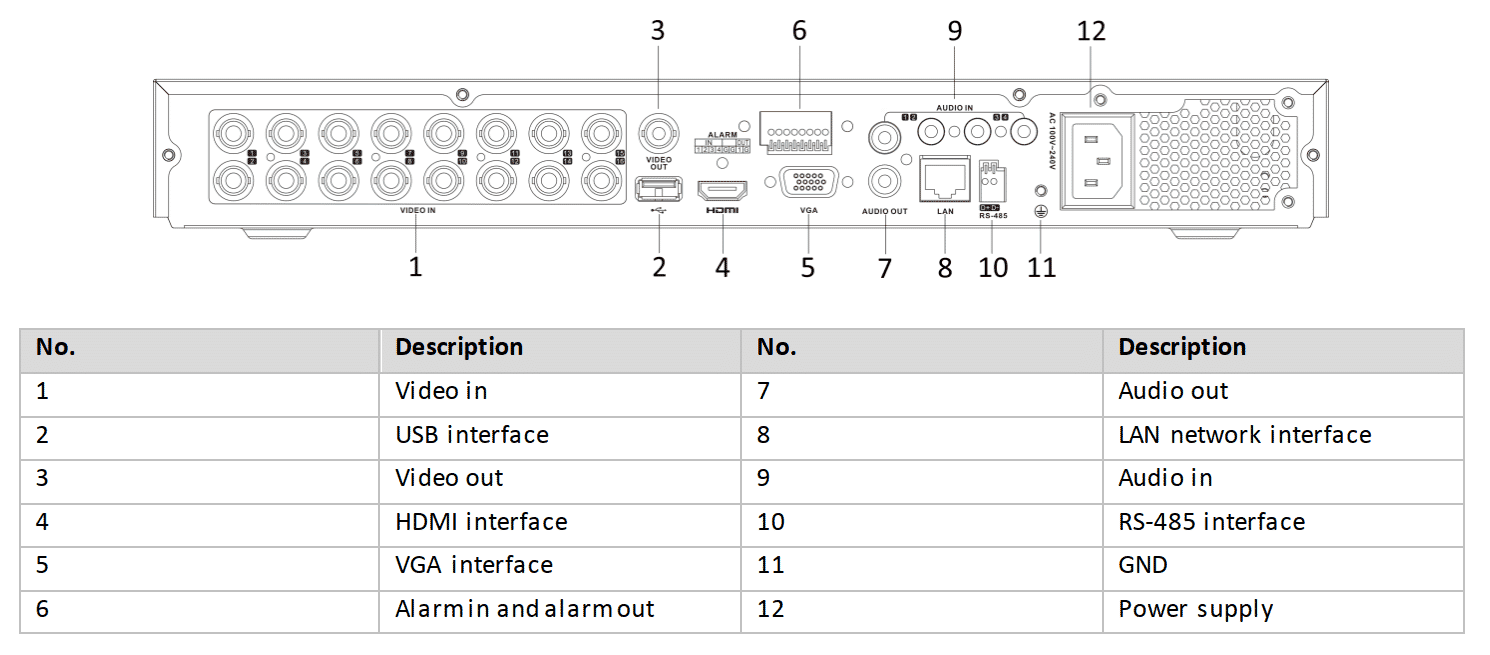

Interface
| No. | Description |
|---|---|
| 1 | Video in |
| 2 | USB interface |
| 3 | Video out |
| 4 | HDMI interface |
| 5 | VGA interface |
| 6 | Alarm in and alarm out |
| No. | Description |
|---|---|
| 7 | Audio out |
| 8 | LAN network interface |
| 9 | Audio in |
| 10 | RS-485 interface |
| 11 | GND |
| 12 | Power supply |
Features:
- 16 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Efficient H.265 pro+ compression technology
- Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
- Up to 32 channels IP camera inputs, each channel up to 8MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection technology
- Support HDTVI Two-Way Audio technology
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison (Captured from Camera) | 4-ch face picture comparison alarm (HD analogue camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default
for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face picture detection, face picture search； 4-ch face picture capture |
| Video and Audio | |
| IP Video Input | 16-ch (up to 32-ch), each up to 8MP |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| PoC Camera Input | Support Hikvision PoC camera |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous playback | 16-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Decoding | |
| Decoding Capability | up to 24-ch 1080P@30fps |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet
interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 20 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch) |
| Weight | ≤ 2.1 kg (4.6 lb) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision iDS-7216HUHI-M2/PXT Datasheet |
| Hikvision iDS-7216HUHI-M2/PXT Quick Start Guide |
| Hikvision iDS-7216HUHI-M2/PXT User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
