Hikvision iDS-7216HUHI-M2/XT 16-ch 5MP 1U H.265 AcuSense DVR
Hikvision
- AcuSense Technology
- Motion Detection 2.0
- 3 year guarantee
The Hikvision iDS-7216HQHI-M2/XT is a hybrid AcuSense network NVR with 16 analogue channels & 16 IP channels (up to 32 IP channels in enhaced IP mode) (Read more)
PRODUCT DETAILS
The Hikvision iDS-7216HUHI-M2/XT is a hybrid digital video recorder (DVR) with 16 analogue BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras up to 5 mega-pixel, and 32 IP cameras up to 8MP. The iDS-7216HUHI-M2/XT can support 48 cameras in total when combining analogue and IP cameras. The iDS-7216HUHI-M2/XT also features 2 SATA interfaces suitable for hard drives up to 12TB per disk, and deep learning-based motion detection 2.0 is available for all analogue channels.

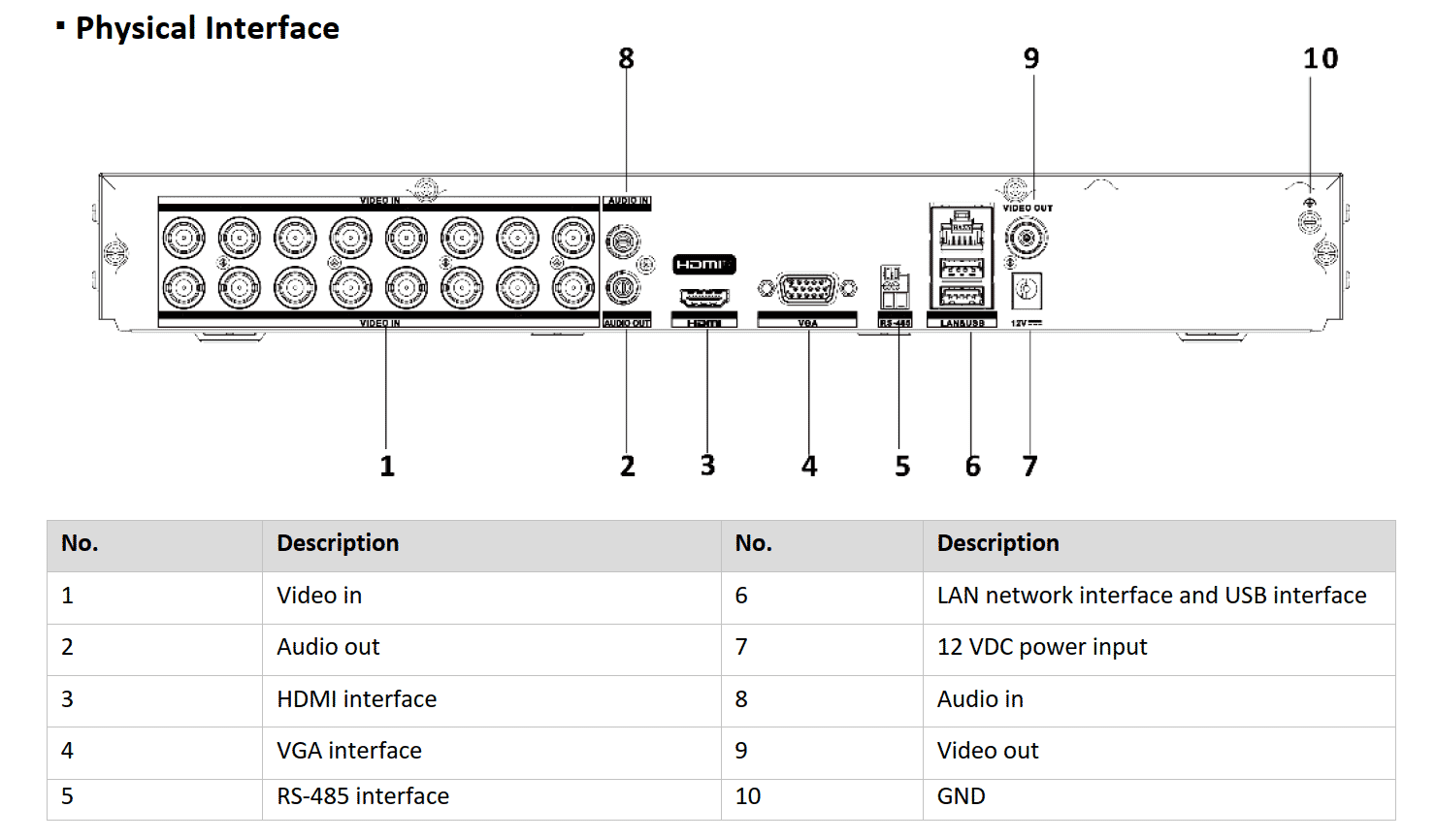

Interface
| No | Description |
|---|---|
| 1 | Video in |
| 2 | Audio out |
| 3 | HDMI interface |
| 4 | VGA interface |
| 5 | RS-485 interface |
| No | Description |
|---|---|
| 6 | LAN network interface and USB
interface |
| 7 | 12 VDC power input |
| 8 | Audio in |
| 9 | Video out |
| 10 | GND |
Features:
- Up to 16-ch analogue camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 34-ch network camera inputs
- POS triggered recording and POS information overlay
- RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Full channel recording at up to 8 MP resolution
- 4 SATA interfaces and 1 eSATA interface
- 16-ch 1080p@30 fps decoding capability
- RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison (Captured from Camera) | 4-ch face picture comparison alarm (HD analogue camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default
for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face picture detection, face picture search； 4-ch face picture capture |
| Video and Audio | |
| IP Video Input | 16-ch (up to 32-ch), each up to 8MP |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous playback | 16-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Decoding | |
| Decoding Capability | up to 24-ch 1080P@30fps |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet
interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| General | |
| Power Supply | 12 VDC, 5 A |
| Consumption | ≤ 60 W |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch) |
| Weight | ≤ 2.1 kg (4.6 lb) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision iDS-7216HUHI-M2/XT Datasheet |
| Hikvision iDS-7216HUHI-M2/XT Quick Start Guide |
| Hikvision iDS-7216HUHI-M2/XT User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
