Hikvision iDS-7232HQHI-M2/XT 32 Channel 1080p 1U Acusense DVR
Hikvision
- AcuSense Technology
- Motion Detection 2.0
- 3 year guarantee
The Hikvision iDS-7232HQHI-M2/XT is a hybrid AcuSense network NVR with 32 analogue channels & 8 IP channels (up to 40 IP channels in enhaced IP mode) (Read more)
PRODUCT DETAILS
The Hikvision iDS-7232HQHI-M2/XT is a hybrid AcuSense network NVR with 32 channels that can record from analogue cameras with a resolution up to 2mp and 8 IP channels that can record from network cameras up to 6mp. A further 32 IP channels can be created using the enhanced IP mode.
The iDS-7232HQHI-M2/XT features deep learning-based motion detection 2.0 by default for all analogue channels, which can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Other deep learning features include face recognition on up to 4 channels and advanced model Perimeter Protection on up to 8 channels.

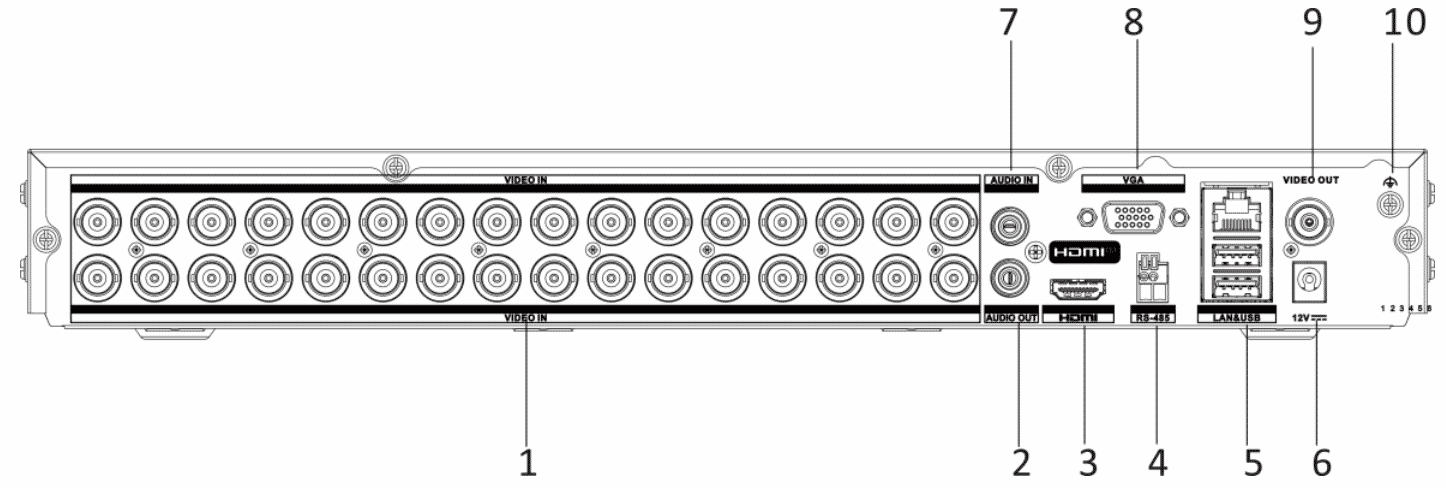

Interface
| No. | Description |
|---|---|
| 1 | Video in |
| 2 | Audio out |
| 3 | HDMI interface |
| 4 | RS-485 interface |
| 5 | LAN network interface and USB
interface |
| No. | Description |
|---|---|
| 6 | 12 VDC power input |
| 7 | Audio in |
| 8 | VGA interface |
| 9 | Video out |
| 10 | GND |
Features:
- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries ; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison (Captured from Camera) | 4-ch face picture comparison alarm (HD analogue camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection
2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face picture detection, face picture
search； 4-ch face picture capture |
| Video and Audio | |
| IP Video Input | 8-ch (up to 40-ch), each up to 6 MP resolution, |
| Analog Video Input | 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60
Hz, 1280 × 720/60 Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous playback | 16-ch |
| HDTVI Input | 3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not
enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Decoding | |
| Decoding Capability | up to 24-ch 1080P@30fps |
| Network | |
| Total Bandwidth | 256Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive
Ethernet interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| General | |
| Power Supply | 12 VDC, 5 A |
| Consumption | ≤ 60 W |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch) |
| Weight | ≤ 2.1 kg (4.6 lb) |
