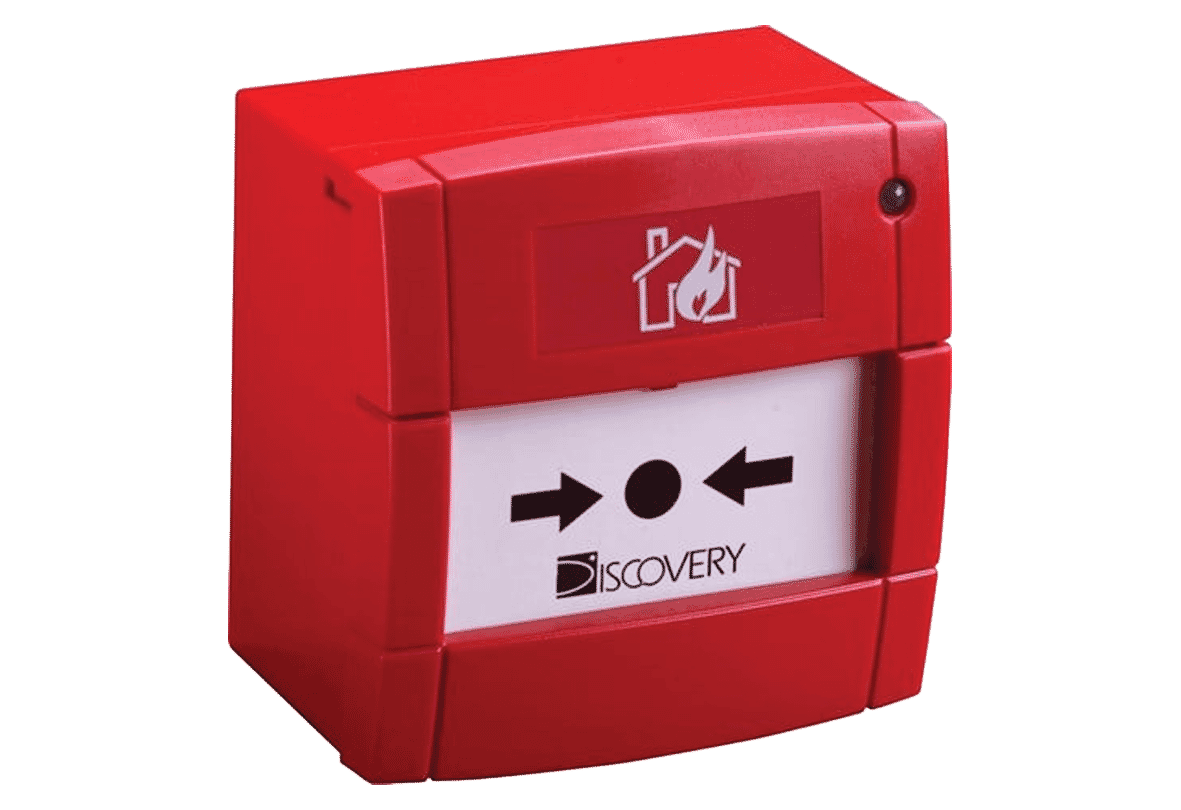

Apollo Fire Detectors Discovery Manual Call Point - Red (Surface)
Apollo
- Resettable Element
- EN 54-11 Certified
- Supplied with Key
The Apollo 58100-910APO is a discovery manual call point designed for use with Apollo Discovery, XP95, and CoreProtocol intelligent fire alarm systems (Read more)
PRODUCT DETAILS
The Apollo 58100-910APO is a discovery manual call point designed for use with Apollo Discovery, XP95, and CoreProtocol intelligent fire alarm systems. Engineered for rapid and reliable manual fire alarm activation, it enables building occupants to quickly raise the alarm in an emergency, making it an essential component of commercial, industrial, healthcare, education, and public-sector fire detection installations.
Featuring a resettable operating element, the 58100-910APO eliminates the need to replace glass after activation, reducing maintenance costs and minimising system downtime. Once activated, the call point reports an alarm in under 0.2 seconds, while the integrated high-visibility red LED and resettable element provide clear confirmation that the device has been operated.
Designed for fast and straightforward installation, the call point incorporates plug-and-play terminal connections and a continuity link, allowing installers to complete wiring tests before commissioning. Addressing is performed using an easily accessible seven-segment DIL switch, enabling quick configuration without removing the unit from its mounting surface.
Manufactured from durable flame-retardant polycarbonate, the 58100-910APO is suitable for flush or surface mounting and carries an IP24D rating for dependable indoor operation. The front-reset mechanism, operated using the supplied reset key, allows the device to be restored quickly after testing or activation.
Features:
- Addressable manual call point for Apollo Discovery, XP95, and CoreProtocol systems
- Resettable operating element – no replacement glass required
- Reports alarm activation in under 0.2 seconds
- EN 54-11 certified
- Plug-and-play terminal connections for faster installation
- Continuity link for pre-commissioning cable testing
- Seven-segment DIL switch for simple device addressing
- High-visibility red LED alarm indication
- Front-reset mechanism with supplied reset key
- Suitable for flush or surface mounting
- Flame-retardant polycarbonate housing
- IP24D-rated for indoor applications
| General |
|
| Warranty |
10 year |
| Wireless |
No |
| Mechanical |
|
| Colour |
Red |
| Weight |
180g |
| Materials housing |
Polycarbonate |
| Product length |
88mm |
| Product width |
88mm |
| Product depth |
59mm |
| Detection principle |
Operation of a switch |
| Key type |
KAC Manal Call Point test & reset key |
| Product length |
3.46in |
| Product width |
3.46in |
| Product width |
2.32in |
| Conformance |
|
| Standards |
EN 54-11 |
| Approvals |
LPCB CPR |
| Performance |
|
| Analogue value nominal |
16 |
| Electrical |
|
| Protocol voltage (max) |
9V |
| Protocol voltage (min) |
5V |
| Protocol voltage |
5 to 9V peak to peak |
| Power-up surge current |
1mA |
| Quiescent current |
100μA |
| Polarity |
L1 & L2 are polarity sensitive |
| Loop powered |
Yes |
| Environmental |
|
| Humidity (max) |
95% RH |
| Humidity (min) |
0% RH |
| Humidity |
0% to 95% (no condensation or icing) |
| Humidity Note |
no condensation or icing |
| Operating temperature (min) |
-20°C |
| Operating temperature (max) |
60°C |
| Operating temperature |
-20 to 60°C |
| IP rating Value |
IP24D |
| Operating temperature |
-4 to 140°F |
| Operating temperature (max) |
140°F |
| Operating temperature (min) |
-4°F |
