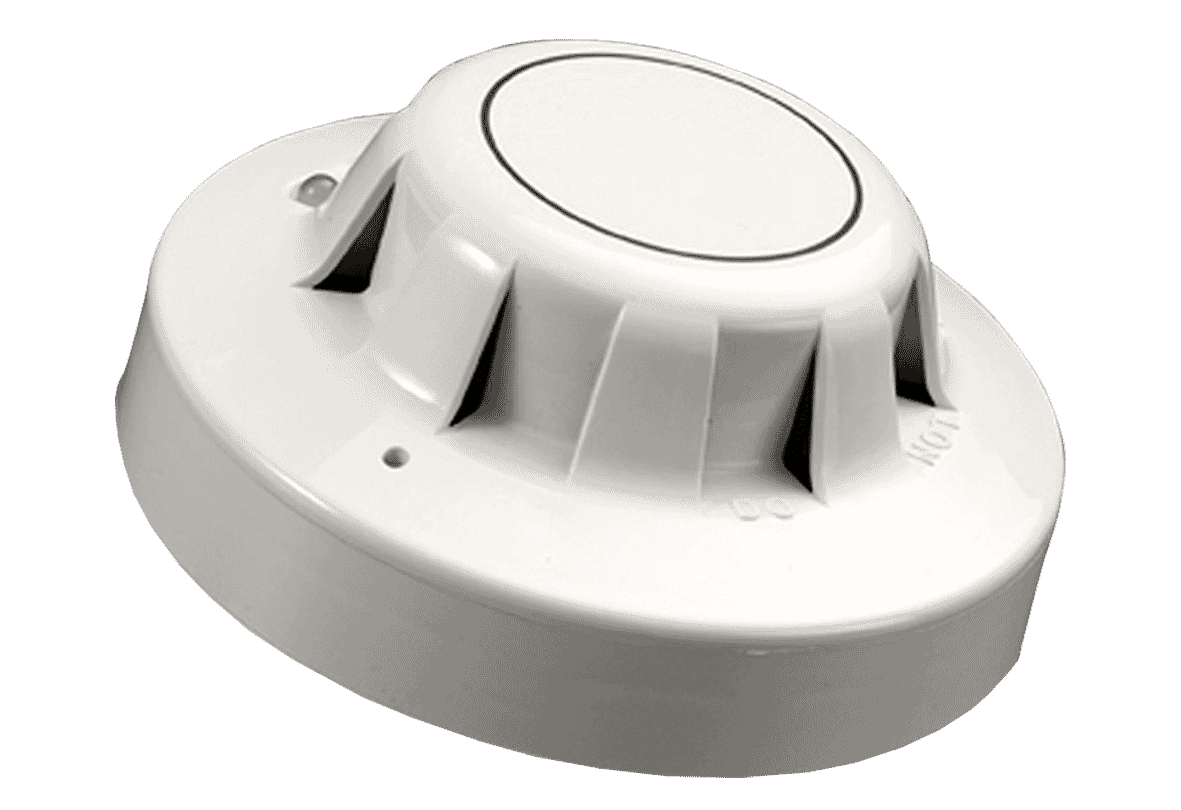

Apollo Series 65 Conventional Optical Smoke Detector Flashing LED
Apollo
- Insect resistant cover
- Flashing Red LED
- 10 year guarantee
The Apollo 55000-316APO is an optical smoke detector that features an Insect resistant cover & an internal flashing LED that detects smoke using light (Read more)
PRODUCT DETAILS
The Apollo 55000-316APO is a series 65 smoke detector which uses advanced optical detection technology to provide reliable and accurate results. It incorporates a built-in insect guard to prevent false alarms and has an internal Infrared LED that flashes every 3 seconds. Once smoke enters the chamber it scatters the light particles and sounds the alarm. This also illuminates an external, visible LED to provide a visual alert that warns deaf and hard of hearing uses that the alarm has been activated.
The Apollo 55000-316APO optical detector is compatible with a range of conventional fire detection systems.
Features:
- Responds well to slow-burning, smouldering fires
- Well-suited to bedrooms and escape routes
- Unaffected by wind or atmospheric pressure
- Internal IR LED
- External LED warning light
| General |
|
| Warranty |
10 years |
| Applications |
|
| Fire Type |
Slow burning, smouldering fires |
| Mechanical |
|
| Colour |
White |
| Sensor configuration |
Horizontal optical bench housing infra-red
emitter and sensor, arranged radially to detect forward scattered
light. |
| Weight |
99g |
| Materials housing |
Polycarbonate |
| Materials terminals |
Nickel plated stainless steel |
| Product height |
42mm |
| Product diameter |
100mm |
| Detection principle |
Photo-electric light scattering |
| Product length |
1.65in |
| Product diameter |
3.94in |
| Conformance |
|
| Standards |
EN 54-7 |
| Approvals |
CPR LPCB |
| Performance |
|
| Chamber type |
Chevron |
| Electrical |
|
| Power-up surge current |
0.115mA |
| Maximum power-up time |
30 seconds |
| Status indicator - Alarm |
Red |
| Status indicator - Fault |
Off |
| Quiescent current |
50μA |
| Quiescent current tested at |
24V dc |
| Supply voltage (max) |
33V dc |
| Supply voltage (min) |
9V dc |
| Supply voltage (Vmin-Vmax) |
9 to 33V dc |
| Terminal functions L2 |
-L2 Line in & out negative |
| Terminal functions L1 in |
+L1 in |
| Terminal functions L1 out |
+L1 out |
| Terminal functions -R |
-R Remote indicator negative connection |
| Polarity |
L1 & L2 are polarity insensitive |
| Battery powered |
No |
| Sampling frequency |
Once every 3 seconds |
| Holding voltage (min) |
6V |
| Minimum voltage to light alarm LED |
12V |
| Alarm reset time |
1s |
| Alarm load |
420Ω in series with 2V drop |
| Environmental |
|
| Humidity (max) |
95% RH |
| Humidity (min) |
0% RH |
| Humidity Note |
no condensation or icing |
| Humidity |
0% to 95% (no condensation or icing) |
| Operating temperature |
-20 to 60°C |
| Operating temperature (max) |
60°C |
| Operating temperature (min) |
-20°C |
| IP rating Value |
IP23D |
| Storage temperature (max) |
80°C |
| Storage temperature (min) |
-30°C |
| Storage temperature |
-30 to 80°C |
| Effect of wind speed |
None |
| Operating temperature |
-4 to 140°F |
| Operating temperature (max) |
140°F |
| Operating temperature (min) |
-4°F |
