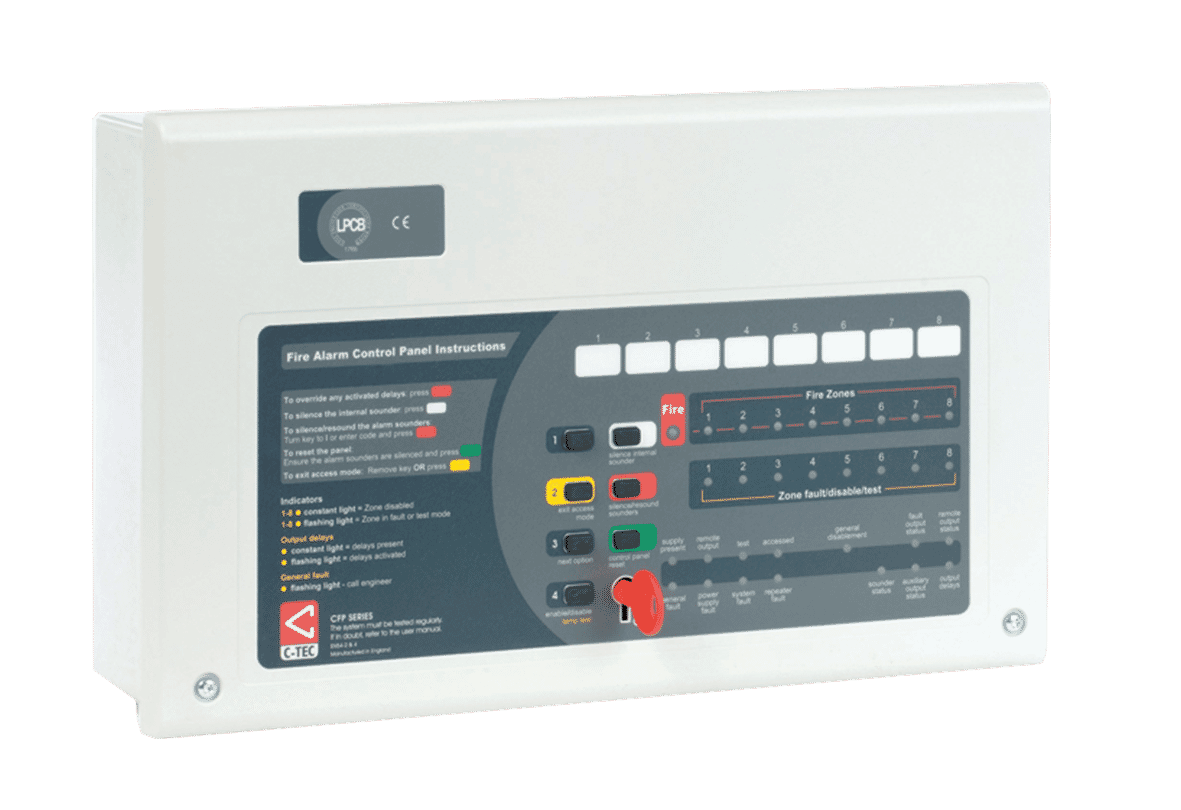

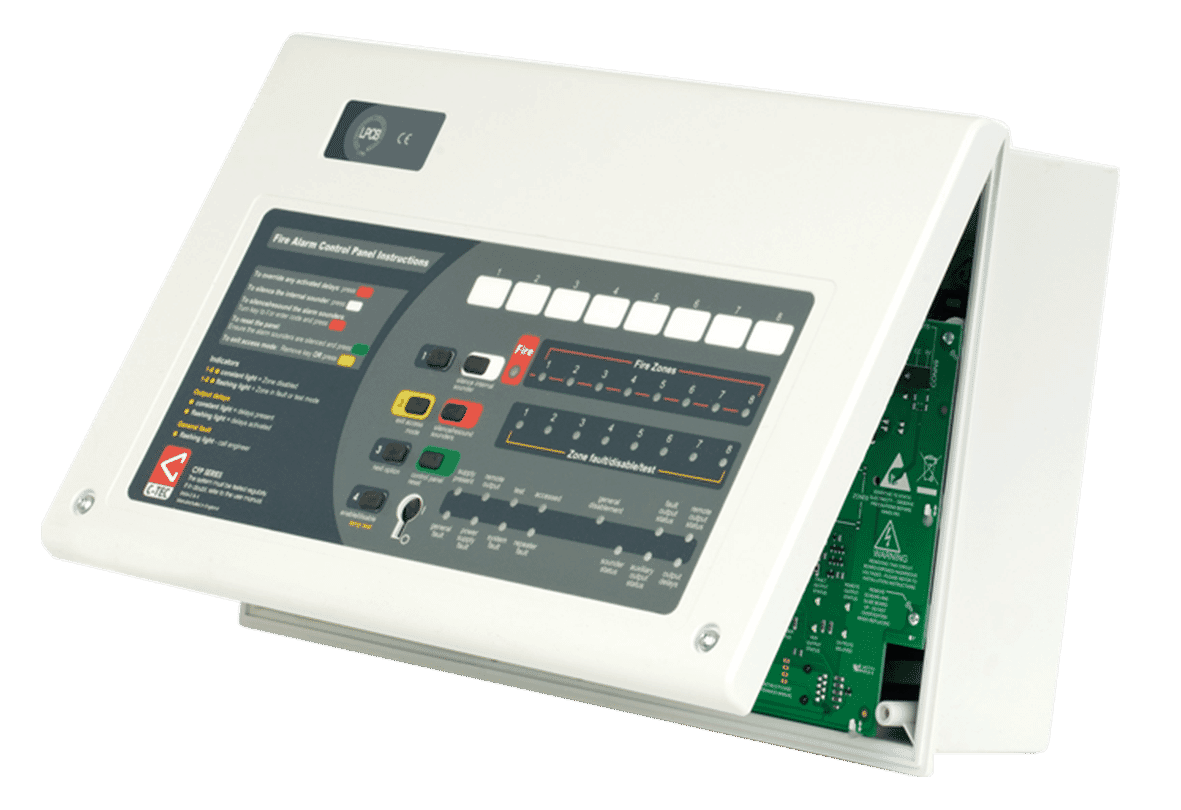

C-TEC CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel
C-TEC CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel
C-TEC CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel
swipe to view images
fullscreen

C-TEC CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel

Rated 0/5   0 reviews | 1 Questions
C-TEC logo C-TEC
  • Certified to EN54
  • Four detector zone circuits
  • Flush or surface mount

The C-TEC CFP 4 zone conventional fire alarm panel has 4 detector zones and 4 sounder zones and accepts optional zone and relay expansion modules (Read more)

Loading
£139.46
£116.22 Ex VAT
In stock
Free delivery availale
Order before 15:30 for delivery from Tuesday 26th November
Product Code12704
ModelCFP704-4
More Information
RELATED PRODUCTS

PRODUCT DETAILS

C-TEC's range of CFP fire alarm panels are the UK's best selling conventional fire panels. The C-TEC CFP 4 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price and is ideal for small fire alarm systems in commercial or residential buildings.

Supplied in a flush or surface mount plastic enclosure that does not require a bezel, it includes four detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad and key-switch entry.

A wide range of engineering functions are also provided including zone delays, coincidence and non-latching zone facilities as well as test and fault finding facilities.

A range of optional repeaters, relay expansion boards and accessories are also available.


Features

  • Third-party certified to British standards
  • Intuitive user-friendly interface with combined keypad/keyswitch
  • Manufactured by C-TEC in the UK
  • Four detector zone circuits
  • Four conventional sounder circuits
  • Built-in power supply
  • Engineering functions including zone test, coincidence, zone delay and non-latching zones
  • Two on-board relays
  • Two open-collector outputs
  • Installer-friendly design.
  • Flush or surface mount plastic lid and enclosure
  • Expand with up to eight two-wire repeaters, CFP relay boards and sounder boards
  • Space for two x 12V 3.3Ah batteries
  • Compatible with a wide range of conventional fire detectors and accessories
SPECIFICATIONS
Specification
Approvals/certifications Certified to EN54-2/4 by the LPCB (176b) / (0832-CPD-1704).
Mains supply 230V 50/60Hz.
Mains rated current 350mA maximum.
Internal power supply 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Total output current limited to 1.5A @ 230Vac (ImaxA eq 146mA).
Quiescent current 25mA (mains failed, internal sounder active, PSU & gen fault LED lit).
Max battery size and type 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
No. of detector zone circuits 4 (Max. length per circuit is 500m).
Call point resistor value 470 to 680Ω.
Max. devices per detector zone 25 detectors (or 32 detectors/manual call points combined).
No. of conventional sounder circuits 4 (Max. length per circuit is 500m).
EOL resistor value 6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Alarm voltage 27V max, 20V min (final battery voltage).
Max. sounder output current 4 x 200mA (800mA total).
Auxiliary relays Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Open collector outputs Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit voltage 27Vdc)
Other outputs 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed).
Auxiliary inputs Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching)
Engineer (AL3) functions Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) when a new zone enters alarm; Enter fault diagnostic facilities
Expansion connections Yes - for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards.
Product dimensions (mm) 380 W x 235 H x D 96mm.
Construction & finish Plastic lid and base; RAL7035 textured.
IP Rating IP30.
Weight 1.75kg (without batteries).
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
Product dimensions: 380 W x 235 H x 96 D mm.
Hole required for flush mounting: 367 W x 220 H x 75 D mm. No bezel required.
USEFUL FILES AND LINKS
Videos
No videos available
Files
  C-TEC CFP702-4 Datasheet
Links*
C-TEC website
C-TEC support site

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

QUESTIONS AND ANSWERS

Get expert answers to questions specific to this product below or for more help visit our Q&A forum


Is this fire control panel compatible with Apollo devices?
( )
Yes you can use Apollo conventional detectors with this panel.
( )
