Aico EI168RC 230V Mains RadioLINK Base with Rechargeable Battery
Aico
- Quick and Easy
- Mains Powered
- Battery Backup
Ei168RC RadioLINK Base adds wireless interconnection to Aico 140e Series alarms. Mains powered with lithium back-up for easy hybrid alarm system setup (Read more)
PRODUCT DETAILS

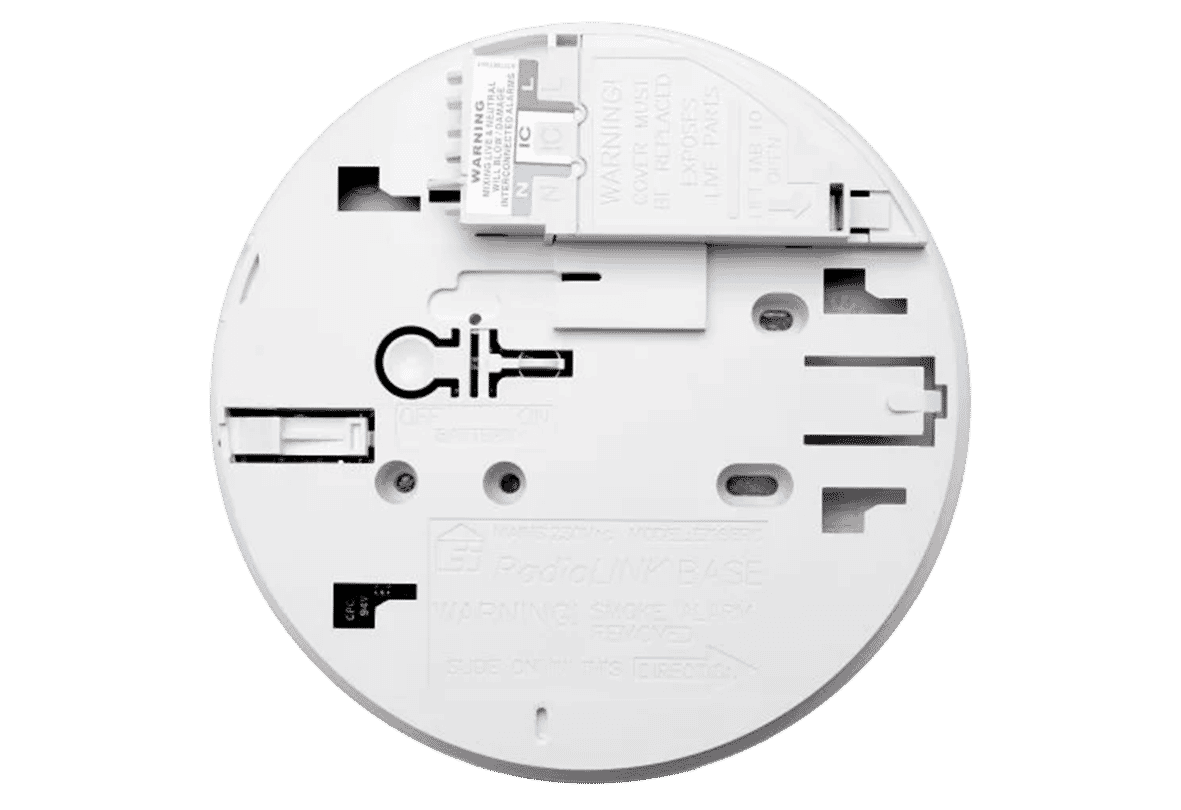

The Ei168RC RadioLINK Base is a mains-powered easi-fit mounting plate that adds wireless interconnection capability to Aico’s 140e Series alarms, including the Ei146e and Ei144e models. Featuring built-in RadioLINK technology, it allows multiple alarms to communicate wirelessly—so when one alarm is triggered, all others sound for complete property coverage.
Designed to replace the standard easi-fit base, the Ei168RC is simple to install and eliminates the need for complicated wiring runs, saving time, mess, and installation costs. The unit also includes a rechargeable lithium back-up cell, ensuring continued operation even during power interruptions. Once fitted, alarms are linked together using a secure House Coding function, preventing interference from other nearby wireless systems.
The Ei168RC is ideal for creating hybrid systems, combining both
wired and wireless interconnections. It’s perfect for extending
existing setups or upgrading older systems to include additional
alarms and accessories without the hassle of running new cables.
Reliable, easy to use, and fully compatible with Aico’s wireless
interconnection products, the Ei168RC delivers professional-grade
performance for both domestic and commercial installations.
Features:
- Mains powered base with rechargeable lithium cell back-up
- Add this to the 140e series alarms for RadioLINK wireless interconnection
- Compatible with other Aico wireless interconnection products
- Eliminates tricky wiring runs
- Saves time, mess and money
- Makes it easier to add in new alarms and accessories
| Technical |
|
| RF Frequency (MHz) |
868.499 |
| Indicators |
Blue - RF transmission |
| Voltage Type |
AC |
| Power Consumption (W) |
2.4 |
| RF Range (m) |
>100 in free air |
| Supply Voltage (V) |
230 |
| Battery Type |
Lithium rechargeable |
| Technologies |
RadioLINK |
| Dimensions &
Weights |
|
| Depth (mm) |
45 |
| Width (mm) |
155 |
| Packaged weight (kg) |
0.232 |
| Height (mm) |
155 |
| Product weight (kg) |
0.176 |
| Approvals &
Warranty |
|
| Certification/Approvals |
EN300220-3 / 301498-3 |
| EAN Number |
5099383004281 |
| Warranty |
5 year warranty |
| Environmental |
|
| Humidity Range (%) |
15-95 |
| Temperature Range (°C) |
-10 to 40 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| EI168RC Datasheet |
| EI168RC Instructions |
| Links* |
|---|
| Aico website |
