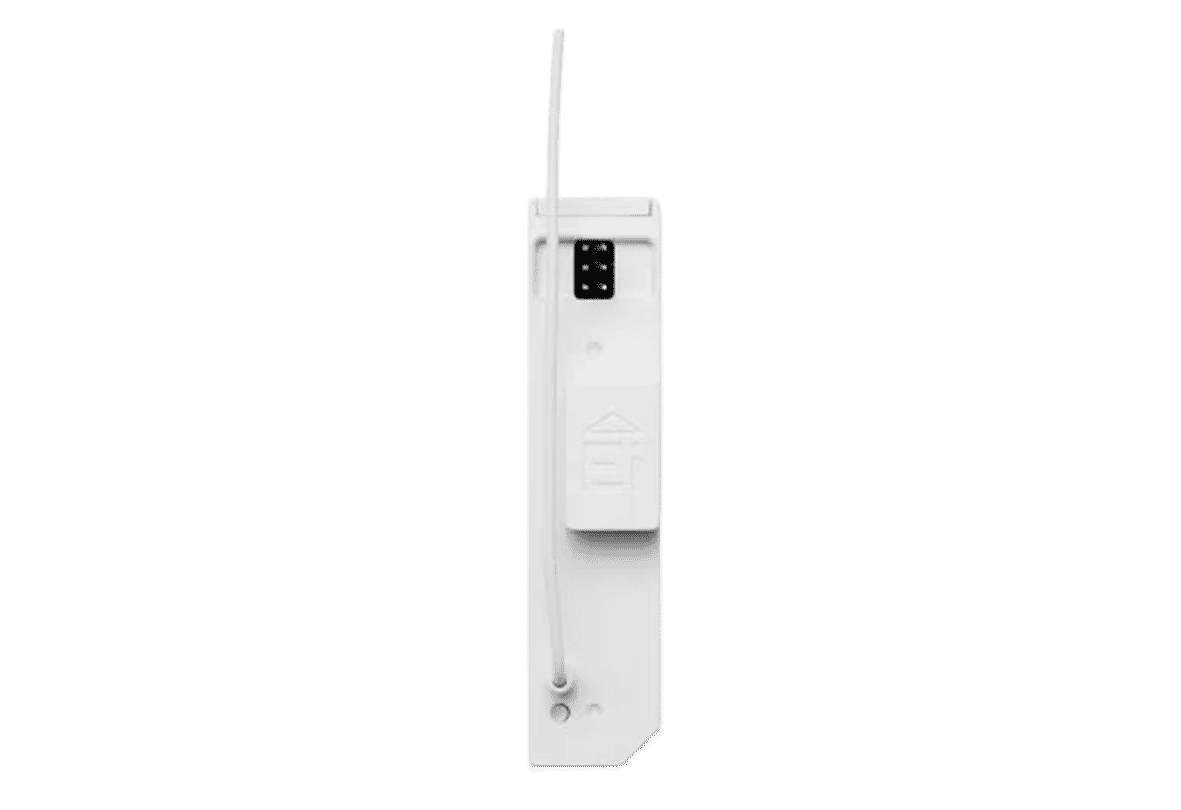

Aico EI3000MRF SmartLINK Module for 3000 Series Alarm
- Powered from Alarm
- Up to 12 RF Devices
- 10 Year Warranty
The Ei3000MRF SmartLINK Module is a next-generation wireless interconnection system, designed to make fire and CO alarm networks smarter and faster. (Read more)
PRODUCT DETAILS
The Ei3000MRF SmartLINK Module is part of Aico’s next-generation wireless interconnection system, designed to make fire and CO alarm networks smarter, faster, and easier to manage. Simply plug the module into any alarm from the Aico 3000 Series to enable SmartLINK functionality for wireless interconnection and real-time data monitoring when used with the Ei1000G Gateway.
Powered directly from the alarm head, the Ei3000MRF eliminates the need for additional wiring, creating a clean and simple installation process. Once connected, it allows up to 12 alarms and devices to interlink wirelessly, ensuring simultaneous activation for complete property coverage. The module also enables remote house coding, configurable notifications, and live system visibility, so you can forecast alarm replacements, track performance, and streamline maintenance with ease.
Built on reliable RF mesh architecture, the Ei3000MRF maintains
strong, stable communication between all linked devices. Fully
compatible with existing Aico RadioLINK and RadioLINK+ systems, it
offers seamless expansion and future-proof integration across all
Aico wireless products—perfect for professional installers and
property managers looking for efficient, connected fire and CO
alarm systems.
Features:
- Powered from alarm head
- Add this to an Ei3000 series alarm to allow for SmartLINK interconnection and data extraction by working in conjunction with the Ei1000G Gateway
- Compatible with other Aico wireless interconnection products
- Interconnect up to 12 alarms and devices wirelessly
- Real-time configurable notifications
- Full visibility of your connected SmartLINK systems
- Forecast alarm replacements and maintenance
- Remote House Code Entry
- Transmits, receives and repeats RF specific data
- RF mesh architecture
- Unique House Coding feature
- RF Data Download
| Technical |
|
| RF Frequency (MHz) |
868.499 |
| Indicators |
Blue - RF Transmission / Green - monitoring
mode / Red - monitoring mode cancel |
| RF Range (m) |
>100 in free air |
| Technologies |
SmartLINK |
| Dimensions &
Weights |
|
| Depth (mm) |
35 |
| Height (mm) |
75 |
| Width (mm) |
90 |
| Packaged weight (kg) |
0.028 |
| Product weight (kg) |
0.010 |
| Approvals &
Warranty |
|
| Certification/Approvals |
EN 62368-1:2014/AC:2017 / EN 62479:2010 |
| Warranty |
10 year warranty |
| EAN Number |
5099383006605 |
| Environmental |
|
| Humidity Range (%) |
15-95 |
| Temperature Range (°C) |
-10 to 40 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| EI3000MRF Datasheet |
| EI3000MRF Instructions |
