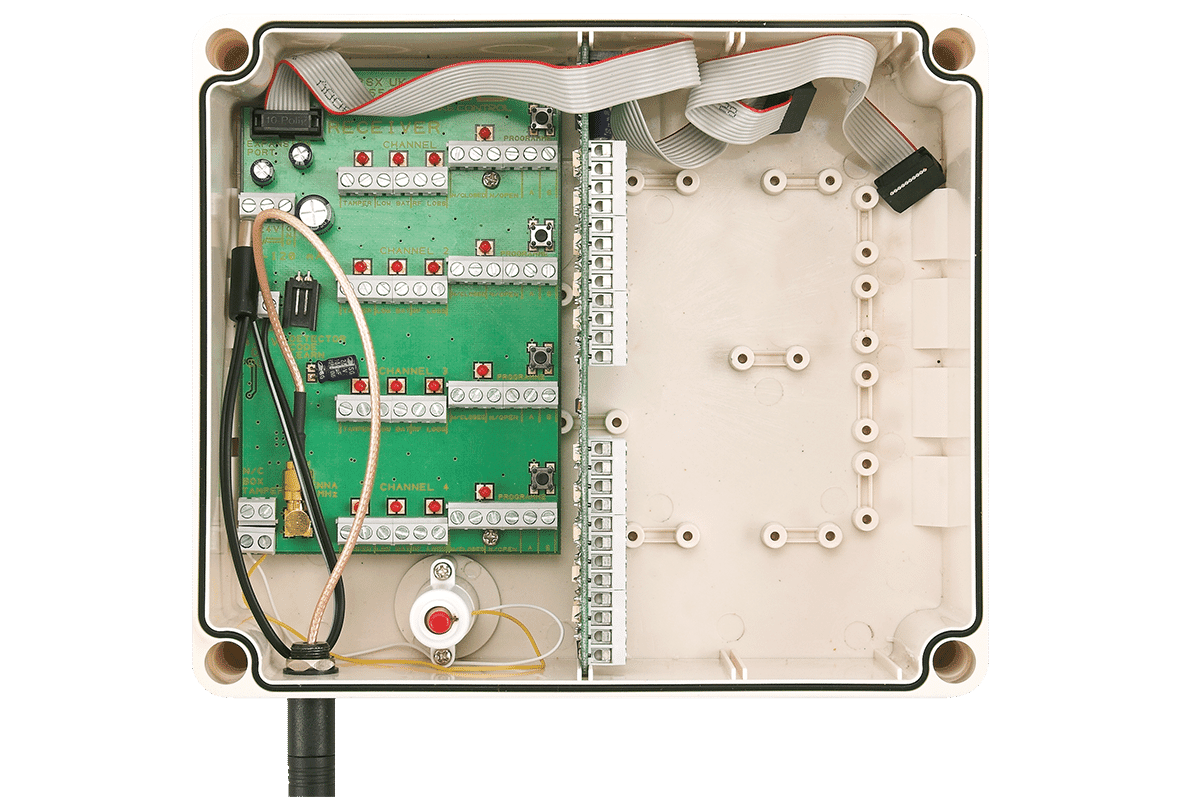

GJD D-TECT X 4 Channel Wireless Receiver - 500m Range
GJD
- IP55 Rated
- Four Channels
- Tamper Protected
The D-TECT X is an IP55 weatherproof, tamper protected, four channel unit equipped with two volt free & two negative switched outputs per channel. (Read more)
PRODUCT DETAILS
The GJD GJD392 D-TECT X 4 Channel Wireless Receiver is a versatile receiver unit designed to work seamlessly with the D-TECT X range of wireless external PIR detectors and transmitters. It provides reliable long-range wireless connectivity, enabling simple integration of detection devices into security, lighting, or CCTV systems.
With four programmable channels, the GJD392 allows you to connect and manage multiple detectors, giving you the flexibility to trigger alarms, activate lights, or control cameras. Its robust design, dependable performance, and installer-friendly setup make it the ideal choice for both residential and commercial security applications.
Features:
- 4-Channel Receiver – Connects up to four D-TECT X wireless detectors or transmitters.
- Reliable Wireless Range – Long-distance communication ensures dependable performance.
- Flexible Outputs – Programmable relay outputs for triggering alarms, lights, or CCTV systems.
- Secure Operation – Robust wireless protocol minimises interference and ensures signal integrity.
- Easy Installation – Compact unit with straightforward wiring and setup.
| Specifications | |
| COMMUNICATION RANGE |
Up to 500 m (line of sight) |
| COMMUNICATION CODES |
16,700,000, 868MHz |
| POWER INPUT |
12 - 24V AC/DC |
| INDICATORS (PER DETECTOR) |
1 x LED Detection 1 x LED Tamper 1 x LED RF loss 1 x LED Low battery indication |
| OPERATING TEMPERATURE |
-20ºC to +55ºC Conformally coated
electronics for increased stability |
| CONNECTIONS |
1 x program socket for detectors. Expansion socket for connection to additional modules |
| OUTPUTS (PER DETECTOR) |
2 volt-free, silent solid state magnetically
immune contacts 2 neg. switched plus one common tamper (front and rear switches) 1 RF Loss 1 Low battery |
| CAPACITY |
4 detector modules fitted as standard 3 slots for additional 4 channel expansion modules (total 16 detectors) |
| CASE |
High impact, flame retardant, UV stabilized
Polycarbonate |
| PROTECTION HOUSING |
Minimum IP55 |
| DIMENSIONS |
210 x 180 x 75 mm (excluding aerial) |
| WEIGHT |
658g NET, 720g GROSS |
| Videos |
|---|
| No videos available |
| Files |
|---|
| GJD GJD392 datasheet |
| GJD GJD392 User Manual |
| Links* |
|---|
| GJD website |
| GJD support site |
