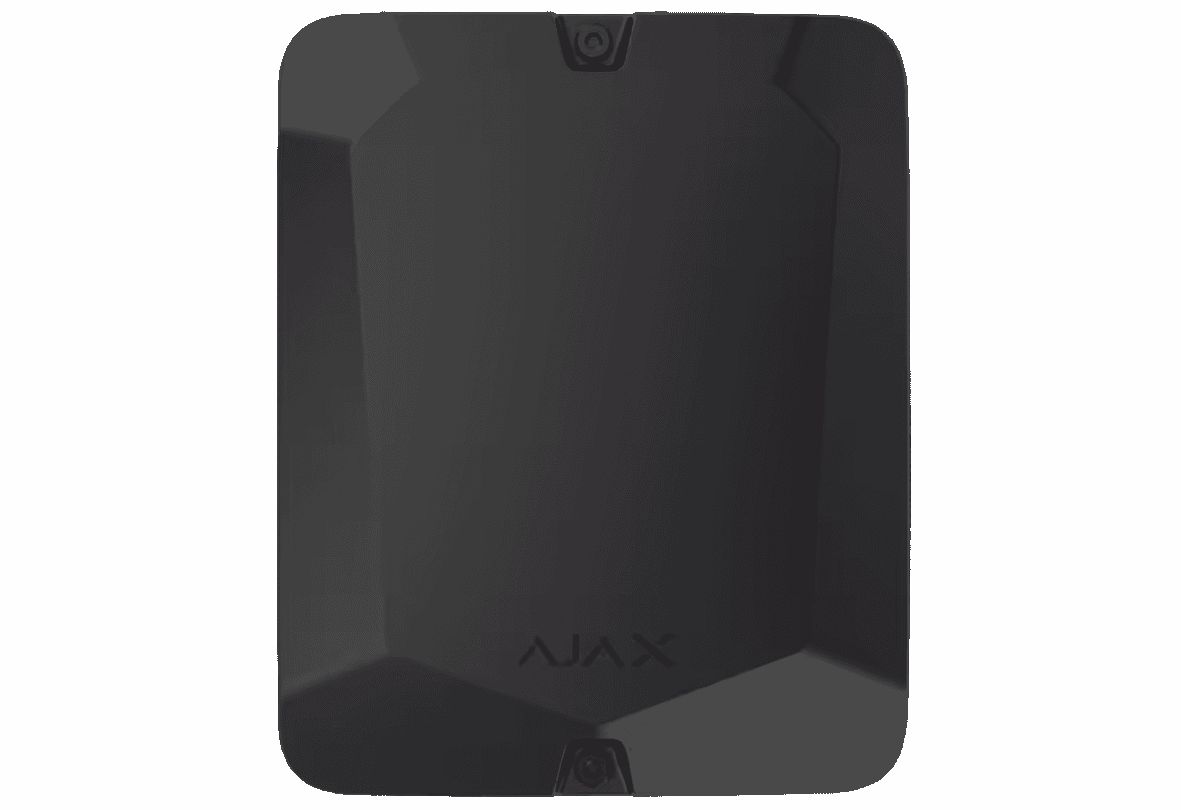

Ajax Case C - (260) Casing for an Ajax Module and a 7Ah Battery- Black
Ajax
- Lid Tamper
- Easy Installation
- 2 year guarantee
The Ajax Case C is designed to protect 1 Ajax device and 1 7Ah battery. It features perforated cable zones and a sprirt level for easy installation. (Read more)
PRODUCT DETAILS
The Ajax Case range is the casing designed to install one or more compatible Ajax wired devices. The complete set includes the tamper board to protect devices from sabotage, and has fasteners to fix the cables and channels for convenient cable organization. The casing is intended for indoor use only.
Quality is the most important thing in today’s security
industry. The mounting box for wired protection complies with the
international safety standards that you would expect from an Ajax
product. The robust casing walls do not deform and retain their
integrity, even during drilling. The stiffeners are designed to
provide strength and enhance load-bearing safety. Additionally, the
box for boards features a stylish and user-friendly design. It is
also specifically crafted to withstand exposure to sunlight.
Case is produced in several versions. Each model has a different
number of slots depending on the device combination:
Case A (106) — one Ajax device
Case B (175) — up to two Ajax devices
Case C (260) — one Ajax device and 7 Ah
battery
Case D (430) — up to eight devices and two 18 Ah batteries
Interface (Case C)
| Number |
Description |
|---|---|
| 1 |
Holding screws to secure the casing
lid. Can be unscrewed with a bundled hex key (Ø 4 mm) |
| 2 |
Perforated part to run the
wires |
| 3 |
Rails for installing LineSupply
Fibra |
| 4 |
Bubble level to check the inclination
angle of the mount during installation |
| 5 |
The tamper board with a wire to connect
a module |
| 6 |
Holders for a battery |
| Number |
Description |
|---|---|
| 7 |
Recesses to drill the holes
conveniently |
| 8 |
Holes to attach the casing to the
surface |
| 9 |
Perforated part of the casing. Do not
break it off. This part is necessary for tamper triggering in case
of any attempt to detach the casing from the surface |
| Number |
Description |
|---|---|
| 10 |
Stoppers to protect devices during
drilling |
| 11 |
Fasteners to fix the cables with
ties |
The casing has a tamper board. It connects to the Ajax device with a wire in the complete set. The tamper detects attempts to open the lid or detach the casing from the surface. In the case of a sabotage attempt, users and the CMS will receive a notification about the tamper triggering of the device.
What devices can be installed in the Ajax Case?
Features:
- Convenient cable management
- Solutions for any configuration
- Durable plastic latches to fix devices without additional tools
- Mounting holes placed at different angles and pre-installed spirit level to set the casing horizontally
- Pre-installed tamper to detect the lid opening and alert of detachment of the casing from the surface
- Perforated zones and fasteners for easy cable routing and management
- Multiple use – even after dismantling and changing device configuration
- All mountings are included – PRO does not need to take an additional mount to the facility
- Lid and device fixing in two positions – errors are excluded
| Compatibility |
|
| LineSupply Fibra |
with a battery up to 7 Ah |
| Devices
installation |
|
| Number of slots |
1 |
| Plastic rails |
to secure a module Slide LineSupply Fibra along the rails to remove it from the casing. |
| Cable fasteners |
to hold the cables together with
ties |
| Plastic stoppers |
During drilling, the instrument rests on the
Case stoppers. |
| Bubble level |
To check the inclination angle of the casing
during installation. |
| Recesses for drilling |
Ø20 mm or Ø32 mm The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic. |
| Wider holes |
To ensure that the casing is installed
correctly, even if there are errors during installation. |
| Holders for a battery |
up to 7 Ah To prevent accidental dislodgement of the battery. |
| Key features |
|
| Tamper board |
Included in the Case complete set. The tamper board connects to
the appropriate LineSupply Fibra connector and protects the
installed device from sabotage. |
| Holding screws |
in the casing lid |
| Latches |
to secure the lid during installation The latches prevent the lid from falling off Case until it is secured with screws. |
| Recommendations |
The device is designed for indoor use only |
| Product |
|
| Dimensions |
260 × 195 × 93 mm |
| Weight of Case |
997 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Colour |
Black |
| Complete set |
Case C (260) Tamper board Installation kit Quick start guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Ajax Case C Datasheet |
| Ajax Case C User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
