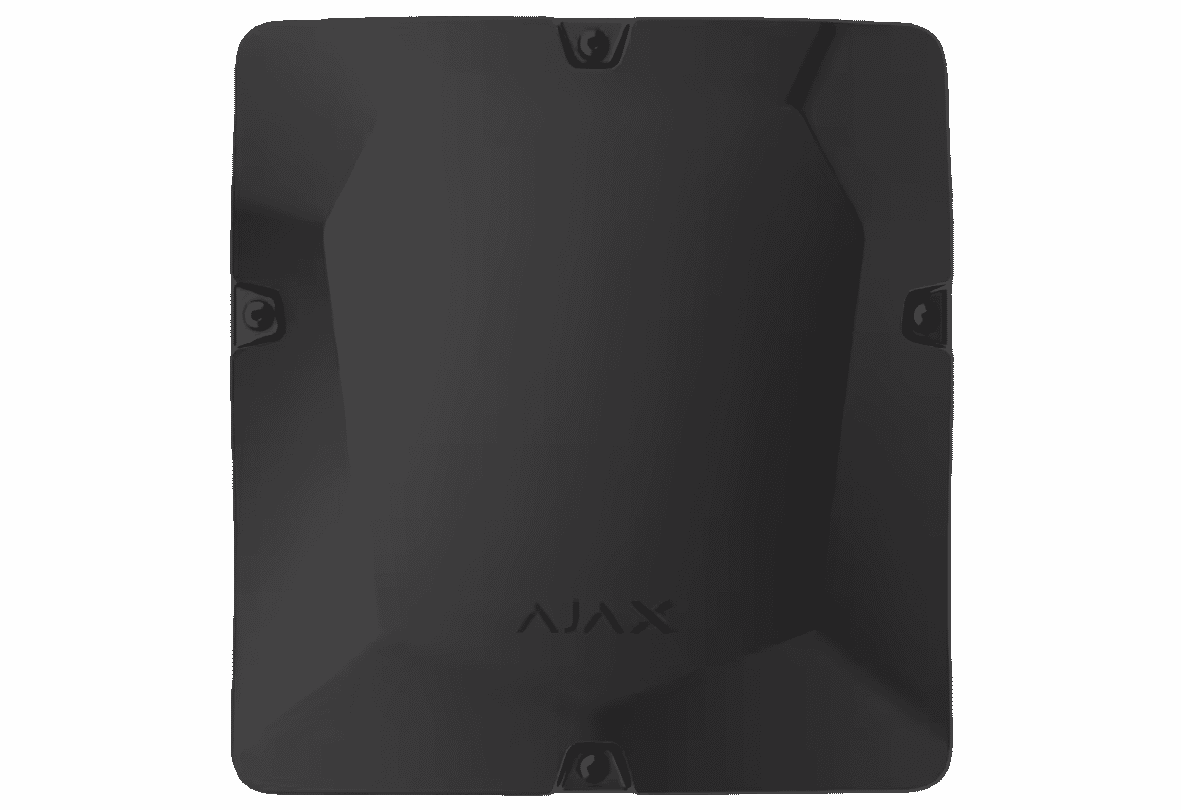

Ajax Case D - (430) Casing for up to 8 Ajax Modules & 2 x 18Ah Batteries - Black
Ajax
- Lid Tamper
- Easy Installation
- 2 year guarantee
The Case D is designed to protect up to 8 Ajax devices & an 18Ah battery. It features perforated cable zones & a sprirt level for easy installation. (Read more)
PRODUCT DETAILS
The Ajax Case range is the casing designed to install one or more compatible Ajax wired devices. The complete set includes the tamper board to protect devices from sabotage, and has fasteners to fix the cables and channels for convenient cable organization. The casing is intended for indoor use only.
Quality is the most important thing in today’s security
industry. The mounting box for wired protection complies with the
international safety standards that you would expect from an Ajax
product. The robust casing walls do not deform and retain their
integrity, even during drilling. The stiffeners are designed to
provide strength and enhance load-bearing safety. In particular,
Case D (430) can hold two 18 Ah batteries, weighing a total of
about 10 kg. Additionally, the box for boards features a stylish
and user-friendly design. It is also specifically crafted to
withstand exposure to sunlight.
Case is produced in several versions. Each model has a different
number of slots depending on the device combination:
Case A (106) — one Ajax device
Case B (175) — up to two Ajax devices
Case C (260) — one Ajax device and 7 Ah battery
Case D (430) — up to eight devices and two 18 Ah
batteries
Interface (Case D)
| Number |
Description |
|---|---|
| 1 |
Holding screws to secure the casing
lid. Can be unscrewed with a bundled hex key (Ø 4 mm) |
| 2 |
The tamper board with a wire to connect
an Ajax device |
| 3 |
Bubble level to check the inclination
angle of the mount during installation |
| 4 |
Holders for batteries |
| Number |
Description |
|---|---|
| 5 | Perforated part of the casing. Do not
break it off. This part is necessary for tamper triggering in case
of any attempt to detach the casing from the surface |
| 6 | Perforated parts to run the
wires |
| 7 | Rails for installing LineSupply
Fibra |
| Number |
Description |
|---|---|
| 8 | Holes to attach the casing to the
surface |
| 9 | Rails for installing LineSupply Fibra
and holders |
| Number |
Description |
|---|---|
| 10 | Fasteners to fix the cables with
ties |
| 11 | Recesses to drill the holes
conveniently |
| 12 | Module Holder (type B) |
| 13 | Module Holder (type A) |
The casing has a tamper board. It connects to the Ajax device with a wire in the complete set. The tamper detects attempts to open the lid or detach the casing from the surface. In the case of a sabotage attempt, users and the CMS will receive a notification about the tamper triggering of the device.
What devices can be installed in the Ajax Case?
Features:
- Convenient cable management
- Solutions for any configuration
- Durable plastic latches to fix devices without additional tools
- Mounting holes placed at different angles and pre-installed spirit level to set the casing horizontally
- Pre-installed tamper to detect the lid opening and alert of detachment of the casing from the surface
- Perforated zones and fasteners for easy cable routing and management
- Multiple use – even after dismantling and changing device configuration
- All mountings are included – PRO does not need to take an additional mount to the facility
- Lid and device fixing in two positions – errors are excluded
| Compatibility |
|
| LineSplit Fibra LineProtect Fibra MultiRelay Fibra LineSupply Fibra |
with a battery up to 18 Ah |
| Devices
installation |
|
| Number of slots |
up to 8 |
| Plastic rails |
to secure a module Slide LineSupply Fibra along the rails to remove it from the casing. |
| Cable fasteners |
to hold the cables together with
ties |
| Plastic stoppers |
During drilling, the instrument rests on the
Case stoppers. |
| Bubble level |
To check the inclination angle of the casing
during installation. |
| Recesses for drilling |
Ø32 mm, Ø40 mm, or Ø63 mm The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic. |
| Wider holes |
To ensure that the casing is installed
correctly, even if there are errors during installation. |
| Holders for a battery |
up to 18 Ah At the bottom of the casing. |
| Key features |
|
| Tamper board |
Included in the Case complete set. The tamper board connects to
the appropriate LineSupply Fibra connector and protects the
installed device from sabotage. |
| Device rotation |
by 180° The devices in the casing can be rotated by 180°, providing two fixation options. |
| Holding screws |
in the casing lid |
| Latches |
to secure the lid during installation The latches prevent the lid from falling off Case until it is secured with screws. |
| Recommendations |
The device is designed for indoor use only |
| Product |
|
| Dimensions |
430 × 400 × 133 mm |
| Weight of Case |
3,343 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Colour |
Black |
| Complete set |
Case D (430) Tamper board Holding stripe for a battery Module Holder (type A) — 4 pcs. Installation kit Quick start guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Ajax Case D Datasheet |
| Ajax Case D User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
