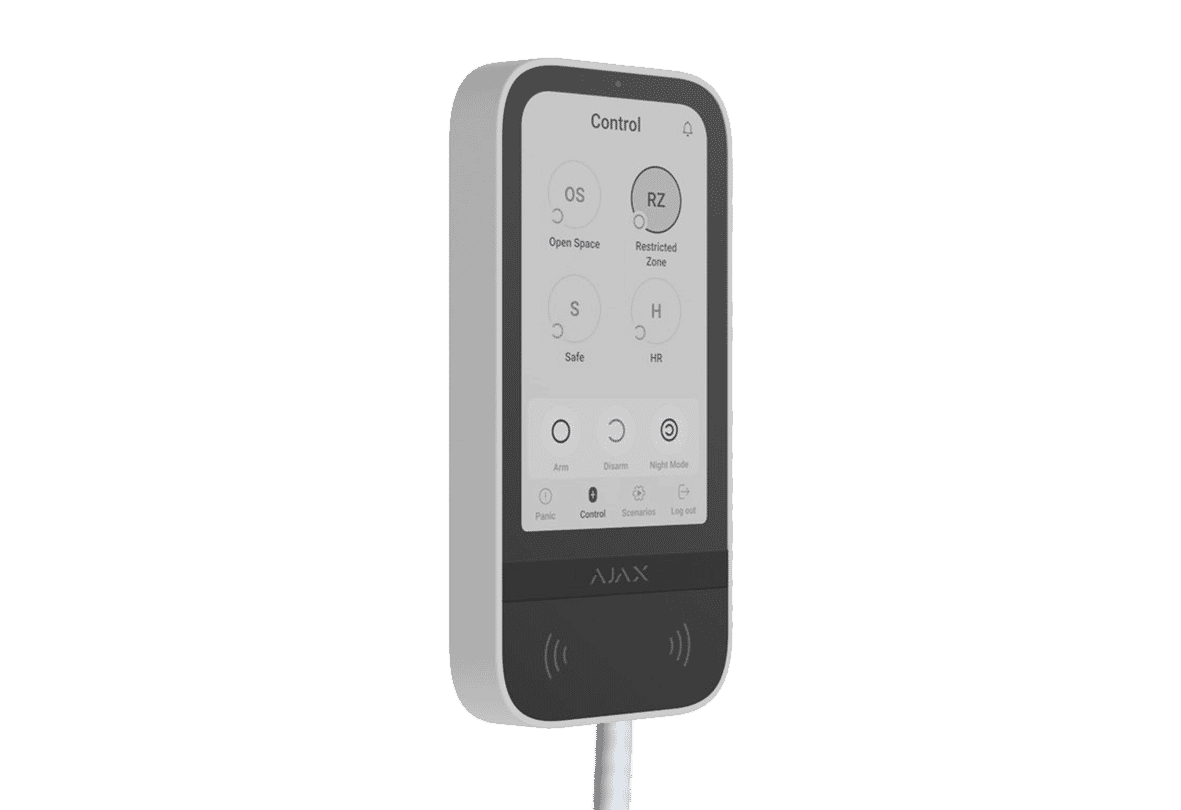

Ajax KeyPad Touchscreen Fibra Wired Touch Keyboard with Screen (White)
Ajax
- 5'' Colour Touchscreen
- Smart Device Management
- Black or White
The Ajax KeyPad TouchScreen Fibra is a wired keypad with a 5'' colour touch screen designed for managing the Ajax Fibra wired security alarm system. (Read more)
PRODUCT DETAILS
The Ajax KeyPad TouchScreen Fibra is a wired keypad with a touch screen designed for managing the Ajax system. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for indoor use.
The Touchscreen is developed for easy-to-view security and convenient control. With the graphical interface and sound notifications, all the users commands and the systems responses are perfectly expressed. The keypad clearly shows is a command is accepted. For example, it shows the cause of the malfunction during the integrity check. The users are always aware of the system status and what action should be taken.
The keypad operates in the Ajax system and exchanges data with the hub using the secure Fibra wired communication protocol.
Interface
| Number | Description |
|---|---|
| 1 | Ambient light sensor for automatically
adjusting the backlight brightness |
| 2 | IPS touchscreen display with a 5-inch
diagonal |
| 3 | Ajax logo with an LED
indicator |
| 4 | Cards/key fobs/Bluetooth
reader |
| 5 | The SmartBracket mounting panel. To
remove the panel, slide it down |
| 6 | Perforated part of the mounting panel
for triggering a tamper in case of any attempt to detach the keypad
from the surface. Do not break it off |
| 7 | Built-in buzzer |
| 8 | The hole for attaching the SmartBracket
mounting panel with a holding screw |
| 9 | Tamper button |
| 10 | QR code with the device ID for adding
the keypad to the Ajax system |
| Number |
Description |
|---|---|
| 11 | Terminals for connecting an external
power supply unit (not included). The terminals can be removed from
the holders when necessary |
| 12 | Input terminals for connecting the
Fibra line to KeyPad TouchScreen Fibra |
| 13 | Perforated part of the mounting panel
for routing cables from the top |
| 14 | Perforated part of the mounting panel
for routing cables through the wall |
| 15 | Perforated part of the mounting panel
for routing cables from the bottom |
| 16 | Fasteners to fix the cables with
ties |
KeyPad TouchScreen features a built-in buzzer, a touchscreen display, and a reader for contactless authorization. The keypad can be used to control security modes and automation devices and to notify about system events.
The keypad can automatically adjust the backlight brightness and wakes up upon approach. Sensitivity is adjustable in the app. KeyPad TouchScreen interface is inherited from Ajax Security System app. There are dark and light interface appearances to choose from. A 5-inch diagonal touchscreen display provides access to the security mode of an object or any group and control over automation scenarios. The display also indicates system malfunctions, if present (when system integrity check is enabled).
Features:
- 5'' colour touchscreen with a resolution of 480 x 854 px
- For use with Ajax Fibra wired alarm systems
- Smart home device management
- Available in black or white
- Easy group management
- Security mode of each group is available on the screen
- Management of night mode and security mode of the entire system
- Up to 6 devices or groups of devices on one screen
- Sound notifications about alarms and events
- Instant malfunction notifications
- Three authentication methods; Smartphone, Pass card and Tag key fob, and manual code entry
- Up to 99 keypad access codes
- Screen protection against scrapes, scratches, etc.
- Complex sabotage protection
- Intuitive setup and installation
| Communication |
|
| Fibra communication technology |
Proprietary wired communication technology.
Fibra combines the reliability of wires with the freedom of radio
connection. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in Ajax apps. |
| Line connection |
4-core cable |
| Connection |
to any point of the Fibra line KeyPad TouchScreen Fibra can be installed after a hub, detector, siren, or other keypad. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair cable. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Display |
|
| Diagonal |
5″ |
| Matrix type |
IPS |
| Resolution |
480 × 854 px |
| Sensor |
capacitive |
| Brightness settings |
|
| Backlight lifetime |
30,000 hours Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| User interface |
Light/Dark |
| Key features |
|
| Panic buttons |
|
| Control |
|
| Contactless access |
DESFire® EV1, EV2 ISO 14443-А (13.56 MHz) |
| Access codes |
up to 50 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen. |
| Duress codes |
up to 50 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen. |
| Codes for unregistered people |
up to 50 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. |
| Arming without entering a code |
The enabled feature allows the user to arm the system without
entering a code or presenting the access device. |
| Group management |
Changing the security mode of the groups to which the user has
access from the keypad’s display. |
| Scenarios management |
A separate keypad tab contains up to 6 buttons, and each one
can control one automation device or a group of devices. |
| Indication of malfunctions and security mode |
|
| Fire alarm muting |
Turns off the fire detectors alarm, including the
interconnected alarm. |
| User pre-authorization |
When the feature is enabled, viewing the current system status
and control screen is unavailable. For access, the user must
pre-authorize: enter a code or present a personal access device to
the keypad. |
| Contactless authorization with a smartphone |
A smartphone with the installed Ajax app and Bluetooth Low
Energy (BLE) support can be used instead of Tag or Pass to
authorize a user. BLE is a radio protocol with low power
consumption. The keypad supports Android and iOS smartphones with
BLE 4.2 and higher. |
| Auto screen wakeup |
The keypad wakes up automatically when approaching it. The
approaching distance can be adjusted in the app. |
| Remote firmware update |
When a new firmware is available, an admin or PRO with the
rights to configure the system can run the update in Ajax
apps. |
| Recommendations |
The device is designed for indoor use only. Please note that
the keypad must be connected to an external power supply to keep
the screen always active. |
| Sabotage
protection |
|
| Unauthorized access auto-lock |
The keypad locks if an incorrect code is entered or unverified
access devices are used more than 3 times in a row within 1 minute.
The lock time is adjusted by a PRO or a user with admin rights in
the Ajax app. |
| Tamper alarm |
Notifications on attempts to detach the keypad from the surface
or remove it from the mounting panel. |
| Holding screw |
To secure the keypad on SmartBracket. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply |
|
| Fibra line |
7−30 V⎓, up to 54.6 mA The keypad is powered by the control panel. Connect the external power supply for the Always Active Display mode. |
| Backup batteries |
2 × LTO AA Pre-installed. |
| External power supply |
10.5–14 V⎓, from 0.5 A The recommended voltage of the power supply is 12 V⎓. External power supply is not included. It is needed for the Always Active Display mode. |
| Enclosure |
|
| Dimensions |
171 × 82 × 28 mm |
| Weight |
327 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Colours |
Black or white |
| Complete set |
|
| Complete set |
KeyPad TouchScreen Fibra SmartBracket mounting panel 2 LTO AA backup batteries (pre-installed) Installation kit Quick start guide |
| AJA0253 | KeyPad TouchScreen Fibra Black | Ordered on Request | |
| AJA0254 | KeyPad TouchScreen Fibra White | Ordered on Request |
