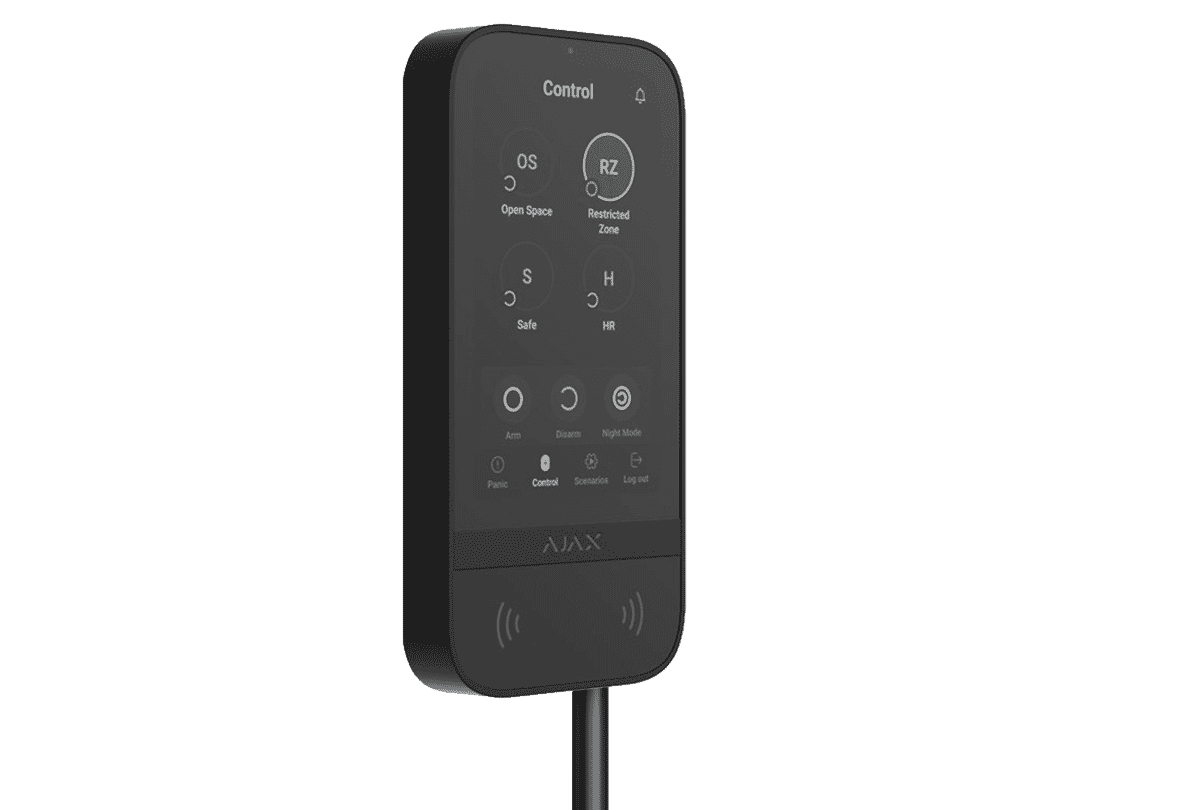

Ajax Superior KeyPad TouchScreen Fibra - 143607.226.BL1
Ajax
- 5'' Colour Touchscreen
- Smart Device Management
- Multiple Authentication
The Ajax KeyPad TouchScreen Fibra is a wired keypad with a 5'' colour touch screen designed for managing the Ajax Fibra wired security alarm system (Read more)
PRODUCT DETAILS
The Ajax Superior KeyPad TouchScreen Fibra is a premium wired control panel designed to deliver intuitive and secure system management for modern security installations. Combining sleek design with advanced functionality, this touchscreen keypad provides users with a seamless way to control and monitor Ajax security systems.
Featuring a responsive colour touchscreen interface, the KeyPad TouchScreen Fibra offers clear visual feedback and effortless navigation. Users can arm and disarm the system, view status updates, and manage security settings with ease, making it ideal for both residential and commercial environments.
Built on Ajax’s Fibra wired communication technology, the device ensures fast, encrypted, and highly reliable data transmission, even across large sites. This makes it particularly well-suited for projects where wired infrastructure is preferred for enhanced stability and security.
The keypad supports multiple authentication methods, including passcodes, access tags, and smartphones (via Ajax apps), providing flexible and secure access control. Its robust construction and tamper protection features add an extra layer of security, helping to prevent unauthorised interference.
Features:
- Full-colour 5'' touchscreen for intuitive system control
- Ajax Fibra wired technology for fast, stable communication
- Multiple authentication options: passcodes, tags, and mobile app
- Real-time system status and alerts display
- Tamper protection for enhanced security
- Modern, low-profile design for professional installations
- Ideal for residential, commercial, and high-security environments
| Communication |
|
| Fibra communication technology |
Proprietary wired communication technology.
Fibra combines the reliability of wires with the freedom of radio
connection. Key features:
|
| Line connection |
4-core cable |
| Connection |
to any point of the Fibra line Superior KeyPad TouchScreen Fibra can be installed after a hub, detector, siren, or other keypad. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair cable. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Display |
|
| Diagonal |
5″ |
| Matrix type |
IPS |
| Resolution |
480 × 854 px |
| Sensor |
capacitive |
| Brightness settings |
|
| Backlight lifetime |
30,000 hours Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| Key features |
|
| Panic buttons |
|
| Control |
codes Tag key fobs Pass cards smartphone (Bluetooth) |
| Contactless access |
DESFire® EV1, EV2 ISO 14443-А (13.56 MHz) |
| Access codes |
up to 50 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen. |
| Duress codes |
up to 50 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen. |
| Codes for unregistered people |
up to 50 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. |
| Arming without entering a code |
The enabled feature allows the user to arm the system without
entering a code or presenting the access device. |
| Group management |
Changing the security mode of the groups to which the user has
access from the keypad’s display. |
| Scenarios management |
A separate keypad tab contains up to 6 buttons, and each one
can control one automation device or a group of devices. |
| Indication of malfunctions and security mode |
|
| Fire alarm muting |
Turns off the fire detectors alarm, including the
interconnected alarm. |
| User pre-authorization |
When the feature is enabled, viewing the current system status
and control screen is unavailable. For access, the user must
pre-authorize: enter a code or present a personal access device to
the keypad. |
| Contactless authorization with a smartphone |
A smartphone with the installed Ajax app and Bluetooth Low
Energy (BLE) support can be used instead of Tag or Pass to
authorize a user. BLE is a radio protocol with low power
consumption. The keypad supports Android and iOS smartphones with
BLE 4.2 and higher. |
| Auto screen wakeup |
The keypad wakes up automatically when approaching it. The
approaching distance can be adjusted in the app. |
| Remote firmware update |
When a new firmware is available, an admin or PRO with the
rights to configure the system can run the update in Ajax
apps. |
| Recommendations |
The device is designed for indoor use only. Please note that
the keypad must be connected to an external power supply to keep
the screen always active. |
| Sabotage
protection |
|
| Unauthorized access auto-lock |
The keypad locks if an incorrect code is entered or unverified
access devices are used more than 3 times in a row within 1 minute.
The lock time is adjusted by a PRO or a user with admin rights in
the Ajax app. |
| Tamper alarm |
Notifications on attempts to detach the keypad from the surface
or remove it from the mounting panel. |
| Holding screw |
To secure the keypad on SmartBracket. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply |
|
| Fibra line |
7−30 V⎓, up to 54.6 mA The keypad is powered by the control panel. Connect the external power supply for the Always Active Display mode. |
| Backup batteries |
2 × LTO AA Pre-installed. |
| External power supply |
10.5–14 V⎓, from 0.5 A The recommended voltage of the power supply is 12 V⎓. External power supply is not included. It is needed for the Always Active Display mode. |
| Enclosure |
|
| Dimensions |
171 × 82 × 28 mm |
| Weight |
327 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Colours |
Black/White |
| Complete set |
|
| Includes | Superior KeyPad TouchScreen Fibra SmartBracket mounting panel 2 LTO AA backup batteries (pre-installed) Installation kit Quick start guide |
