Ajax Superior DoorProtect G3 Fibra Black - 61341.177.BL
Ajax
- Grade 3
- Door/Window Contact
- Controlled through App
The Ajax DoorProtect G3 Fibra is a professional-grade wired magnetic detector designed for high-security environments where reliability is critical. (Read more)
PRODUCT DETAILS
The Ajax Superior DoorProtect G3 Fibra is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. The detector is equipped with two reed switches as opening sensors and a magnetometer for protection against magnet spoofing. Two sizes of magnets provide more mounting options. The device also identifies shock and tilt with a built-in accelerometer, protecting the facility even when windows are in airing mode. All in line with the Ajax user experience, ensuring quick and easy installation of the device.
Superior DoorProtect G3 Fibra has terminals for connecting any third-party wired NC detector, enhancing the reliability of the entire system. For example, an installer can integrate an additional detector operating on a different principle, such as a roller shutter motion detector. When connected to Superior DoorProtect G3 Fibra, it promptly responds to alarms from detectors and cable breakage.
The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. Everything for smooth and quick installation is included. Intuitive Ajax apps help make the device a part of the system, and each device can be reconfigured remotely at any moment. No need for programmers — everything is available out of the box.

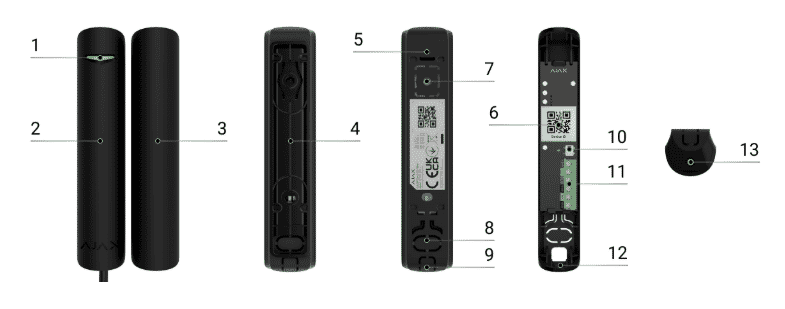

Interface
| No. | Description |
|---|---|
| 1 | LED indicator. |
| 2 | Superior DoorProtect G3 Fibra
detector. |
| 3 | Big magnet. |
| 4 | Spacer to mount the detector and/or
magnet on the surface (2 pcs. in the set). |
| 5 | Mounting panel of the detector
enclosure. It is used to mount the device to the spacer or directly
to the surface. |
| 6 | QR code with the device ID. It is used
to add the detector to the Ajax system. |
| 7 | Perforated part of the detector
enclosure. Do not break it off. Necessary for tamper triggering in
case of any attempt to detach the detector from the
surface. |
| 8 | Perforated part of the detector
enclosure for routing cables through the wall. |
| 9 | Perforated part of the detector
enclosure for routing cables from the bottom or top of the
detector. |
| 10 | Tamper. |
| 11 | Terminals to connect the detector. |
| 12 | Hole for attaching the detector with a screw. |
| 13 | Screw. |
Features:
- Grade 3 Certified – Ensures high-level protection for critical and high-risk sites.
- Reliable Intrusion Detection – Precisely monitors door and window openings.
- Advanced Tamper Protection – Detects attempts to remove, open, or sabotage the device.
- Seamless Integration – Works with Ajax Fibra-enabled hybrid security systems.
- Wired Connection – Stable and interference-free communication for maximum reliability.
- Compact, Durable Design – Discreet installation suitable for commercial, financial, and industrial environments.
| Compatibility |
|
| Compatible hub models |
Hub Hybrid (2G) Hub Hybrid (4G) |
| Compatible range extenders |
Range extenders with Fibra devices
support will be soon added to the Ajax product line |
| Communication |
|
| Fibra communication
technology |
Proprietary wired communication
technology. Fibra combines the reliability of wires with the
freedom of radio connection. It features:
|
| Bus connection |
4-core cable |
| Fibra line length |
up to 2,000 meters When using the U/UTP cat.5 twisted pair. |
| Detection |
|
| Sensing element |
1 accelerometer 1 magnetic masking sensor 2 reed switches |
| Protection against reed switch
chattering |
The detector ignores vibrations lasting
up to 0.15 s. |
| Input to connect an additional
detector |
Wired detector with the normally closed
(NC) contact type |
| Shock sensor sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in the Ajax app. The detection radius depends on the material type:
|
| Option to ignore single impact |
Adjusted by a PRO or a user with admin rights in the Ajax
app. |
| Tilt sensor activation threshold |
from 5° to 25° Adjusted by a PRO or a user with admin rights in the Ajax app. |
| Spacers |
2 pcs. Are needed to install the detector or the magnet on a metal surface, as they help to reduce the distance between the detector and the magnet. You can use one or two spacers at once. |
| Chime |
When the system is disarmed, the siren makes a special sound to
notify that the opening detectors are triggered. |
| Recommendations |
Do not install the detector using both magnets at the same
time. The detector recognizes only one magnet on one side of the detector — left or right. The device is designed for indoor use only. |
| Anti-sabotage
protection |
|
| Tampering alarm |
2 tampers Notifications on attempts to detach the detector from the surface or open the front lid. |
| Magnetic masking sensor |
The device detects an attempt to mask
the main magnet of Superior DoorProtect G3 Fibra with a fraudulent
magnet. |
| Holding screw |
to secure the detector on the mounting panel |
| Protection against spoofing |
device authentication |
| Power supply |
|
| Detector’s operating voltage
range |
5−30 V⎓, up to 23 mW |
| Detector’s nominal operating
voltage |
24 V⎓ |
| Quiescent detector’s current
consumption at nominal voltage |
120 μA |
| Maximum detector’s current consumption
at nominal voltage |
2 mA |
| Enclosure |
|
| Dimensions |
102 × 21 × 19.2 mm |
| Magnet dimensions |
102 × 21 × 19.2 mm |
| Weight |
62 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP30, IK04 |
| Colours |
Black and white |
| Complete set |
Superior DoorProtect G3 Fibra Big magnet Small magnet Installation kit Quick start guide |
| AJA0314 | Ajax DoorProtect G3 Fibra Black | Back order | |
| AJA0315 | Ajax DoorProtect G3 Fibra White | Back order |
| Videos |
|---|
Ajax Superior Range. Rule your space
Fibra technology: how to install a wired security system in 6 hours| Files |
|---|
| Ajax DoorProtect G3 Fibra Datasheet |
| Ajax DoorProtect G3 Fibra User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
