Ajax Superior MotionProtect Plus G3 Fibra - 117717.09.WH1
Ajax
- Grade 3
- 15m Detection Range
- 2 year guarantee
The Ajax Superior MotionProtect Plus G3 Fibra is a pet immune, Grade 3, wired dual tech PIR which detects movement at a distance of up to 15 meters. (Read more)
PRODUCT DETAILS

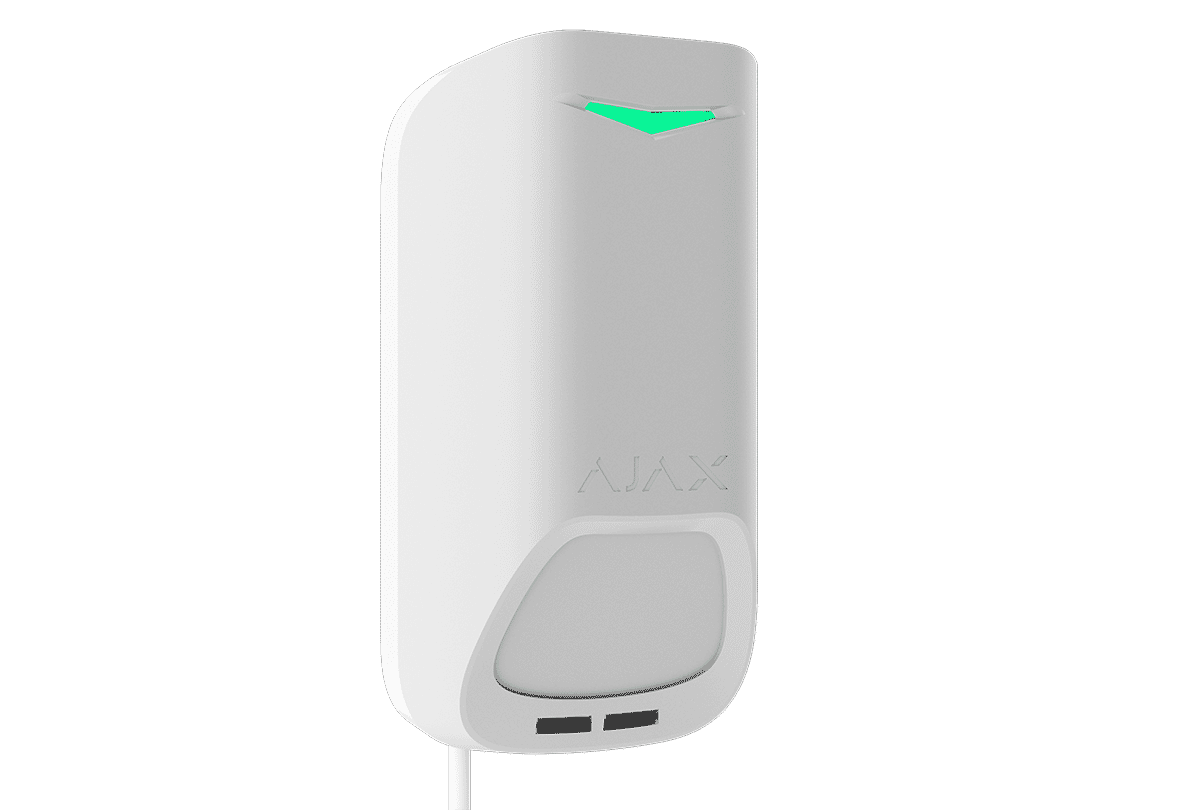

The Ajax Superior MotionProtect Plus G3 Fibra is a Grade 3 wired PIR which detects movement at a distance of up to 15 meters. In addition to using the IR sensor, the detector applies an additional radio frequency scan with a K-band microwave sensor that filters out infrared interference. Also, it features an anti-masking system that detects attempts to block the detector’s field of view. The device is designed for indoor use only and complies with EN 50131 (Grade 3) requirements.
All Ajax motion detectors use PIR sensors by Excelitas Technologies, a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor’s Superior quality at the production stage and test 100% of manufactured devices. This approach ensures the utmost accuracy of intrusion detection

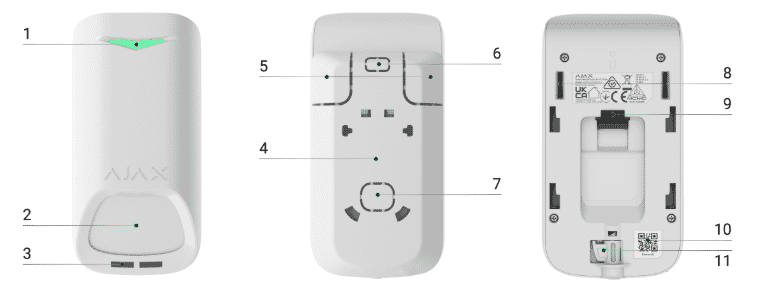

Interface
| No | Description |
|---|---|
| 1 | LED indicator |
| 2 | Detector’s IR motion sensor sensitive
area |
| 3 | Masking sensor |
| 4 | SmartBracket mounting panel. To remove
the panel, slide it down |
| 5 | Perforated parts of the mounting panel.
Trigger a tamper in case of any attempt to detach the device from
the surface. Do not break them off |
| 6 | Perforated part of the mounting panel
for routing cables from the top of the device |
| 7 | Perforated part of the mounting panel
for routing cables through the wall |
| 8 | Tamper Buttons |
| 9 | Terminal strip connection
socket |
| 10 | QR code with the device ID. It is used
to add the device to the hub |
| 11 | Latch with a tamper button on the lock
for SmartBracket |

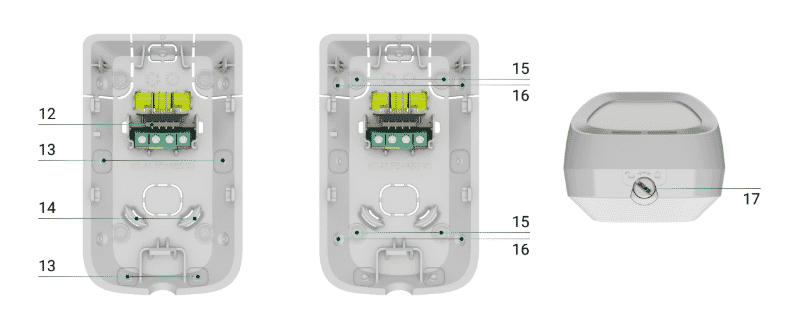

| No | Description |
|---|---|
| 12 | Terminal strip for the device
connection |
| 13 | Recesses for drilling holes to route
cables from the sides or bottom of the device |
| 14 | Fasteners to fix the cables with
ties |
| 15 | Spots for drilling holes to mount the
device on the surface |
| 16 | Spots for drilling holes to mount the
device on the corner |
| 17 | Lock for SmartBracket. It is used to
fix the device on the SmartBracket mounting panel |
Features:
- Wired indoor PIR
- Built-in microwave sensor to filter interference
- Ignores pets weighing up to 20 kg and with a height up to 50 cm
- Up to 15m Detection range
- Grade III
- Quick and easy to install
- Green warning LED
- Controlled through smart phone app
| Communication |
|
| Fibra communication technology |
Proprietary wired communication technology
to transmit commands, alarms, and events. Key features:
|
| Line connection |
4-core cable |
| Connection |
to any point of the Fibra line The device can be installed behind the hub, detector, keypad, or siren. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair cable. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Detection |
|
| Sensitive elements |
1 × PIR sensor 1 × K-band microwave sensor Operating frequency: 24 GHz. |
| Motion detection distance |
up to 15 m When installed at a height of 2.4 m. |
| Reduced blind zone |
up to 0.5 m Detects a crawling person at a distance of 50 cm from the detector. |
| Motion detection angles |
horizontal: 90° vertical: 71° |
| Motion detection speed |
from 0.1 to 4.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. |
| False alarm prevention |
Dual motion detection technology SmartDetect |
| Temperature compensation |
Effective motion detection at temperatures from −10 °C to +40
°C. |
| Self-test of sensitive elements |
The device checks its sensors’ state and notifies if any
malfunction is detected. |
| Recommendations |
It is recommended to install the detector at a height of 2.4
m. The pet immunity feature is not available for this device. The device is designed for indoor use only. |
| Sabotage
protection |
|
| Tamper alarm |
3 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel. |
| Protection against spoofing |
device authentication |
| Anti-masking system |
detects attempts to block the detector view |
| Lock for SmartBracket |
To secure the detector on SmartBracket. |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply |
|
| Operating voltage range |
7−30 V⎓ The hub powers the detector via the Fibra line. |
| Nominal operating voltage |
24 V⎓ |
| Quiescent current consumption at nominal voltage |
4.3 mA |
| Maximum current consumption at nominal voltage |
11.6 mA |
| Enclosure |
|
| Dimensions |
120 × 62 × 52 mm |
| Weight |
156 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP30 |
| Complete set |
Superior MotionProtect Plus G3 Fibra SmartBracket mounting panel Installation kit Quick start guide |
