Ajax Hub BP Jeweller 8EU/ECG ASP Wireless Battery-powered Control Panel

The Ajax Hub BP Jeweller 8EU/ECG is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.

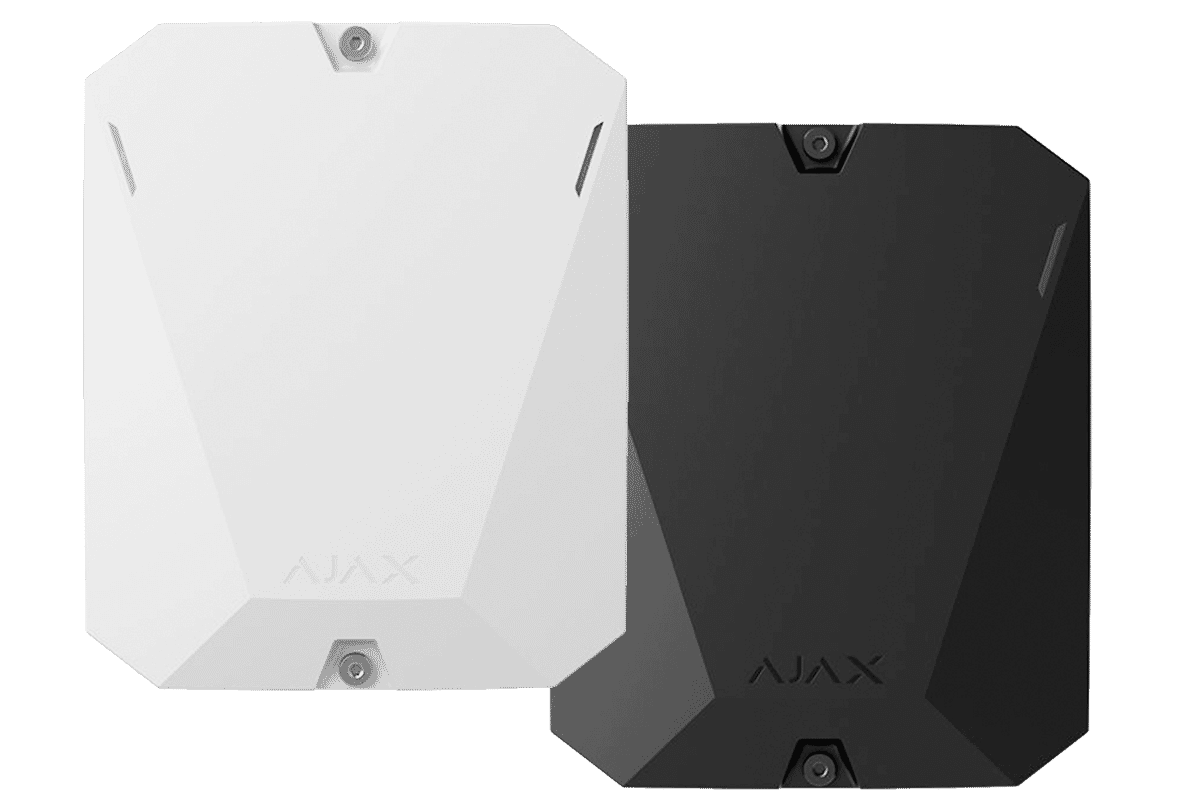

Available in black or white.

You can connect up to 100 wireless Ajax devices to Hub BP Jeweller. Connected devices protect against intrusion, fire, and flooding and also allow you to control electrical appliances according to scenarios or manually — in a mobile app or by pressing the panic button, LightSwitch, or keypad with a touch screen.

To monitor the operation of all security system devices, the hub communicates with the connected devices using two encrypted protocols:

1. Jeweller is a radio protocol for transmitting events and alarms from Ajax wireless devices. The communication range is up to 2,000 m without obstacles, such as walls, doors, or inter-floor constructions.
2. Wings is a radio protocol for transmitting photos from MotionCam and MotionCam Outdoor detectors. The communication range is up to 2,000 m without obstacles, such as walls, doors, or inter-floor constructions.

If a detector is triggered, the system raises an alarm in less than a second. In case of an alarm, the hub activates the sirens, starts the scenarios, and notifies the security company’s monitoring station and all users.

Batteries supplied by Ajax

Batteries from third-party suppliers

Always connected via cellular networks

Communication with the outside world is critical for the security system’s control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.

Hub BP can connect to internet service providers via two SIM cards supporting 2G, 3G, and LTE networks. Different mobile operators can be used for each SIM card to enhance fault tolerance, providing stable connectivity. The automatic switching between channels takes seconds, guaranteeing uninterrupted operation.

Unique wireless technologies

Hub BP supports up to three external antennas and uses Jeweller and Wings proprietary radio protocols for reliable communication. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication provides block cipher encryption and device authentication at each communication session between the hub and connected devices to prevent sabotage, spoofing, or data theft.

Automated security

Hub BP Jeweller allows the creation of 32 automation scenarios and expands the system’s capabilities. This flexibility enables PRO users to set up various security configurations to meet their specific requirements. The hub can arm and disarm the entire system or a group by schedule. Take photos by schedule for constant monitoring of the facility and shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector’s alarm.

Features:

• 100 wireless Ajax devices
• Powered by internal and external batteries
• Remote control and configuration
• Up to 2000m
• Alarm photo verifications in 9 seconds
• 2 independent communication channels
• external antennas
• Jeweller radio communication
• Multi-tier account security
• Enclosure protection with tamper
• Advanced battery power saver
• 32 automation scenarios
