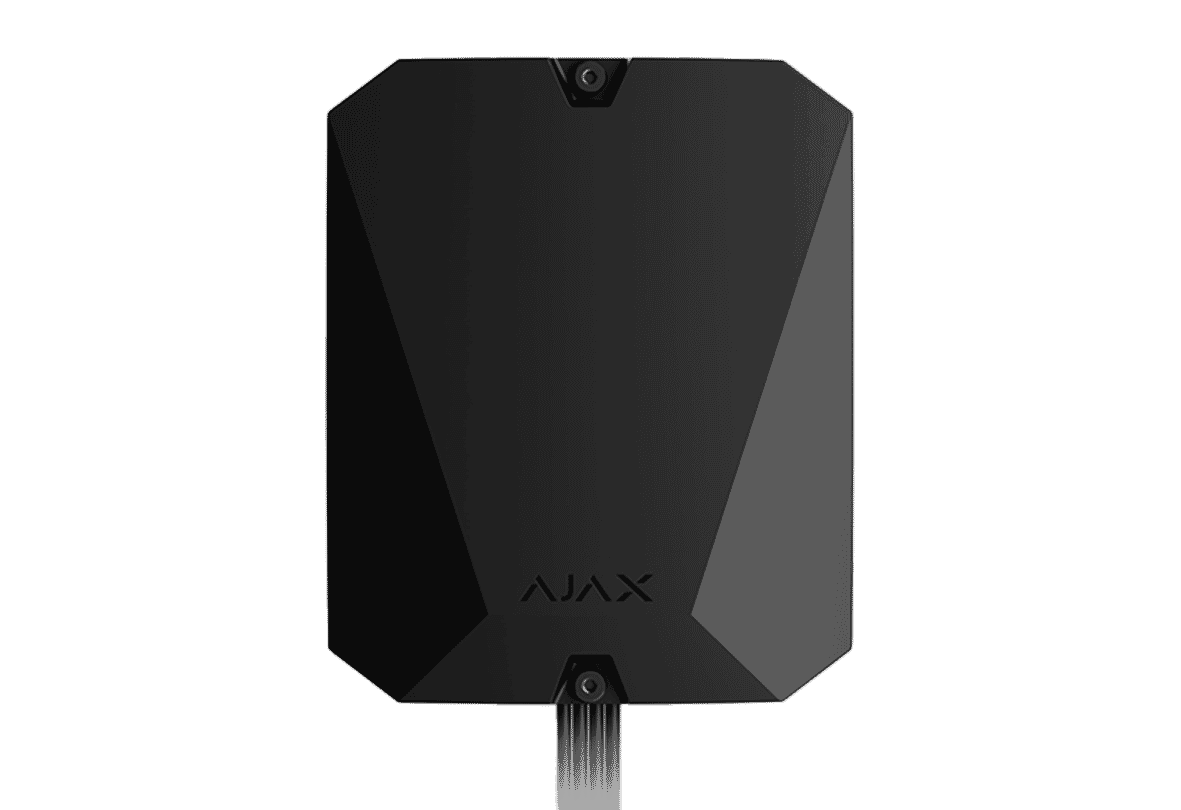

Ajax Superior Hub Hybrid (2G) (8PD) black - 143575.111.BL1
Ajax
- Up to 100 Devices
- Star or Ring Topology
- supports Photo Verification
The Ajax Superior Hub Hybrid (2G) is a hybrid security control panel, designed to unify wired and wireless protection into a single intelligent system (Read more)
PRODUCT DETAILS
The Ajax Superior Hub Hybrid (2G) is a powerful, next-generation hybrid security control panel, designed to unify wired and wireless protection into a single, intelligent system. Built for professional installations, it combines Ajax’s advanced Fibra wired technology with the proven Jeweller wireless platform, delivering unmatched flexibility and reliability across a wide range of environments.
Engineered for modern security demands, the hub supports up to 100 connected devices in any combination of wired and wireless, making it ideal for residential, commercial, and industrial applications. Whether protecting offices, retail spaces, or large facilities with challenging layouts, the hybrid design ensures consistent performance even through steel and concrete structures.
With Ethernet and dual 2G SIM connectivity, the hub maintains constant communication with the Ajax Cloud and monitoring stations. If one connection fails, it automatically switches to another, ensuring uninterrupted protection at all times.
Powered by Ajax’s secure OS Malevich, the system delivers real-time operation, encrypted communication, and over-the-air updates to keep your security system up to date. Advanced features such as photo verification, automation scenarios, and instant alarm notifications provide enhanced control and situational awareness.
Designed with resilience in mind, the hub supports a backup battery (up to 60 hours runtime depending on setup), ensuring continued operation during power outages. Built-in tamper protection and anti-jamming technologies further safeguard the system against interference or unauthorised access.
Features:
- Hybrid system supporting Fibra (wired) and Jeweller/Wings (wireless) devices
- Connects up to 100 devices in any combination
- Ethernet + dual SIM (2G) for reliable multi-channel communication
- Automatic failover between communication channels
- Advanced photo verification and real-time alerts
- Secure OS Malevich with encrypted communication and OTA updates
- Supports automation scenarios for smart security and building control
- Backup battery support for extended operation during power loss
- Tamper protection and anti-jamming detection
| Capacity |
|
| Ajax devices |
up to 100
|
| Cameras or DVRs |
up to 25
|
| Users |
up to 50
|
| Automation scenarios |
up to 32
|
| Security groups |
up to 9 |
| Rooms |
up to 50 |
| Event log |
up to 1000 events Events are saved on the non-volatile onboard flash memory. |
| Wired
communication |
|
| Fibra communication technology |
Proprietary wired communication technology.
Fibra combines the reliability of wires with the freedom of radio
connection. It features:
|
| Compatible wire |
4–core cable Bus connection. |
| Input |
8 Fibra lines Compatible with Fibra devices only. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair. |
| Power supply of devices |
up to 14.4 W For all connected wired devices |
| Output voltage range |
19–24 V⎓ |
| Topologies |
|
| Devices polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax app. |
| Wireless
communication |
|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit
alarms and events. It features:
|
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 2,000 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax app. |
| Encrypted communication |
All the data stored and transmitted are protected by block
encryption with a dynamic key. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo
verifications. It features:
|
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal range |
up to 1,700 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Radio frequency hopping |
Radio communication uses frequency hopping to prevent
interception and jamming. |
| Recommendations |
100–240 V~ power supply. For indoor use only. |
| Communication
channels |
|
| Ethernet |
1 × 8P8C socket Up to 100 Mbps. |
| Cellular |
2 × micro–SIM slot |
| Cellular bands |
2G (GSM900/DCS1800 (B3/B8)) |
| Automatic switching between communication channels |
Switching between SIMs — up to 4 minutes. Switching between Ethernet and SIM — instantly. |
| Communication channels prioritization |
1. Ethernet 2. Cellular connection Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet. |
| Alarm Transmission System Categories |
SP2, SP5, DP3 |
| Control panel operation method |
Pass-through |
| Signalling security |
S2 Substitution security. |
| Information security |
I2 |
| Notifications |
|
| Supported notification types |
|
| Event types |
|
| Photo
verification |
|
| Photo verification types |
|
| Photo delivery time |
up to 9 s By default. |
| Photo resolution |
up to 640 × 480 pixels |
| Number of photos in a series: |
from 1 to 5 pictures |
| Monitoring |
|
| Supported protocols |
|
| Event types |
|
| Power supply |
|
| Main power supply type |
Type A. |
| Device operating AC voltage range |
100–240 V~, 50/60 Hz From the main power supply. Up to 10 W of mains power consumption. |
| Device operating DC voltage range |
10.5–15 V⎓ From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4, 7, or 9 Ah. |
| Autonomous operation |
up to 60 hours Superior Hub Hybrid with a 7 Ah backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply. |
| Low battery voltage |
11.7 V⎓ |
| Low battery recovery voltage |
12.9 V⎓ |
| End of life battery voltage |
11 V⎓ |
| Maximum output peak-to-peak ripple battery voltage |
220 mV⎓ |
| Minimum backup battery energy level in the charged
state |
100 % |
| Current
consumption |
|
| Maximum rated output |
0.53 A |
| Maximum at nominal voltage |
105 mA |
| Quiescent at nominal voltage |
95 mA |
| Average* |
up to 90 mA When GSM and Ethernet are enabled. up to 50 mA When Ethernet is disabled. * From the backup battery after the loss of the main power supply. |
| Casing |
|
| Dimensions |
197 × 240 × 100 mm |
| Weight of the white device |
837 g |
| Weight of the black device |
765 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP40, IK06 |
| Complete set |
|
| Complete set |
Superior Hub Hybrid (2G) Power cable Screw terminal block Adapter (only for INCERT compliance) Battery connection cable Ethernet cable Casing Installation kit Eight 120 Ω termination resistors Quick start guide |
