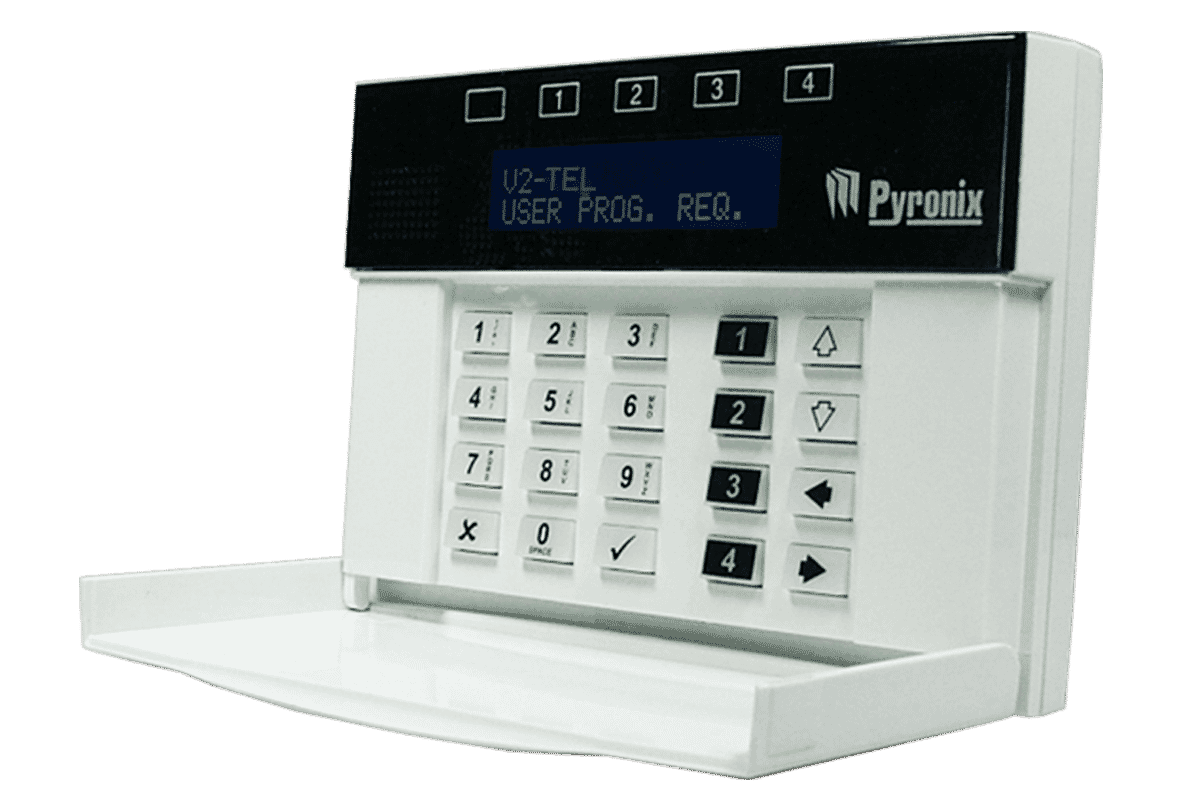

Pyronix PSTN Speech Dialler and Communicator
  • Pyronix PSTN Speech Dialler and Communicator

Pyronix PSTN Speech Dialler and Communicator

Pyronix Hikvision Pyronix Hikvision

  • 6 inputs
  • 9 Phone numbers
  • Voice messages
Full description
FREE delivery is available for this product    13 reward points
£75.91 Ex VAT
Availability In stock
Delivery From FREE* Inc VAT
Product Code11930
Next day delivery available.
Order before 14:00 for delivery from
Friday 30th October
Qty Ex VAT Inc VAT

Six input, Nine number speech dialler with outputs

The V2 TEL Speech Dialler can send out alarm voice messages after an activation to an input, all of which are programmable. The diallers may also be used as a normal telephone if required.
Boasting 6 inputs and 4 controllable outputs, it’s the ideal solution for customers who would like total control and monitoring of their home or workplace, from anywhere in the world.

Inputs & outputs
- Inputs can be programmed to activate following an input state or voltage change.
- Outputs can be used to control external devices such as vending machines, engines, emergency equipment, home alarms, gates, lighting etc. The outputs can be controlled by the keypad (V2GSM,V2TEL only), SMS CLIP (V2GSM only) or DTMF commands.

Alarm voice messages
10 second voice messages may be recorded for each alarm input. A common message of 20 seconds may also be recorded. This message will be sent together with each alarm input voice message after activation following an input alarm.

Remote control voice menu
Access the voice menu to listen in, speak in, control outputs, check the status of equipment, etc.

Sign of life test calls
This function can save the user costs on regular test calls as they will only be sent if the V2 has not made a call in a pre-programmed time frame.

Event log
The memory log will hold the following number of events (256).

Microphone/ Speaker
Discreetly positioned microphones and speakers allow you to listen in to your property to verify the cause of an activation and talk back if necessary.

Telephone numbers
Has the ability to dial up to four telephone numbers upon an alarm activation – including mobile numbers which enables you, a relative or neighbour to be informed immediately of an intrusion so that the appropriate action may be taken (9).

Listen in & Speak in
An easy to use listen in option allows you to silently monitor your property wherever you may be. An added two-way speech feature also enables you to speak into the property through discreetly placed speakers (half duplex).

Key Features

  • Half duplex hands free
  • Can be used as a fully operational phone
  • Onboard microphone and speaker
  • Remote microphone and speaker outputs
  • Full remote control via DTMF tones
  • Output remote control
  • 6 onboard programmable inputs
  • 4 onboard programmable outputs
  • 9 destination phone numbers
  • Voice messages to each input
  • 256 event memory log, time and date stamped

Speech dialers technical characteristics

Listen in & speak in - Duplex
Half duplex
Intergrated microphone and speaker
Intergrated keypad
Automatic phone number recognition (CLIP)
Can be used as a telephone
Date and time stamp
Event log
Alarm voice messages
Alarm and restore SMS messages
Jamming detection
Automatic forwarding of service provider SMS messages
Microphone and speaker

Inputs & outputs

Onboard wired inputs
Outputs on board

Communications and modems

Modem type (included)
Remote control via a telephone
Telephone numbers
Remote speaker and microphone

Environmental and operating features

Nominal operating temperature
-20 to +40'C
Physical dimensions (H x W x D)
147 x 100 x 28mm

Electrical & battery

Operating voltage
10-14.9V DC
Quiescent current consumption

Certifications and warranty

Environmental class
2 years
