Pyronix WiFi IP Module with External Antenna
fullscreen

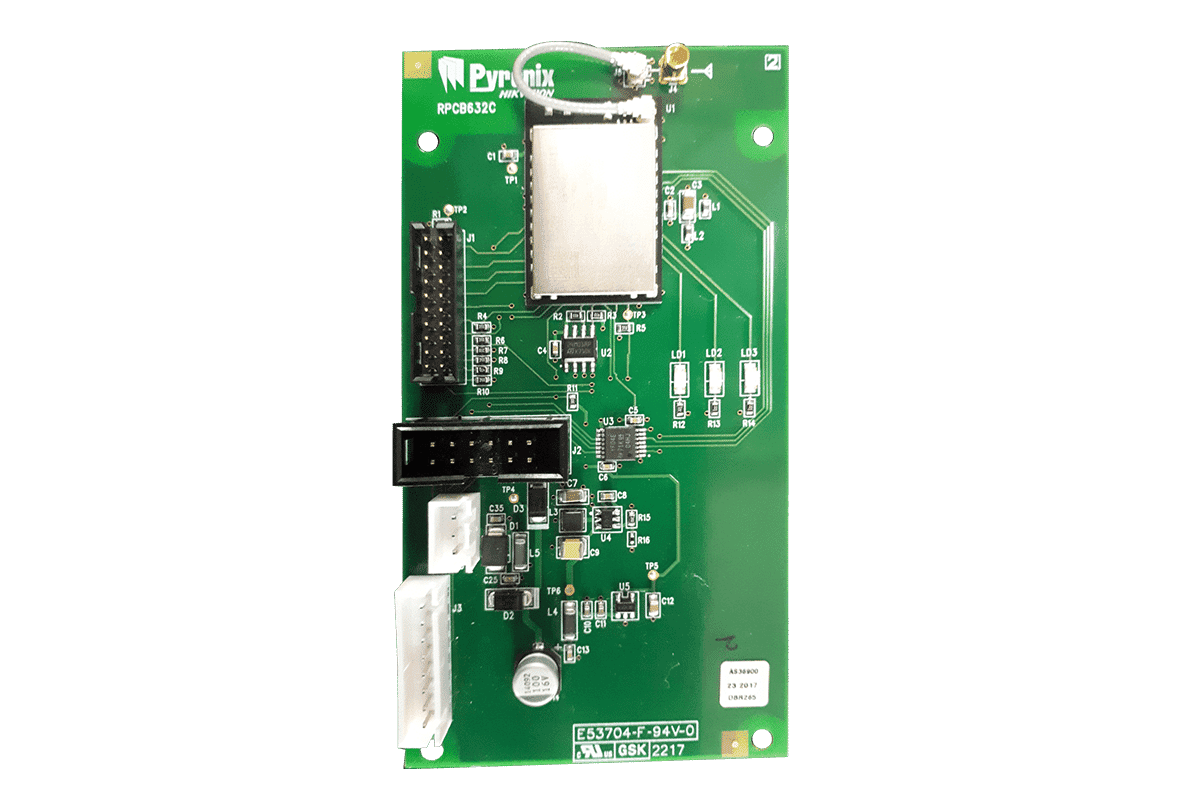

Pyronix WiFi IP Module with External Antenna

Rated 0/5   0 reviews | 4 Questions
Pyronix logo Pyronix
  • For steel cased panels
  • Easy setup via DHCP
  • 2 year guarantee

The Pyronix WiFi IP Module with External Antenna is designed to be used with metal cased Pyronix panels to allow wifi connectivity for cloud communication (Read more)

Loading
£97.81
£81.51 Ex VAT
10+ In stock
Free delivery availale
Next day delivery available. Order before 15:30 for delivery from Wednesday 4th December
Product CodePYR0073
ModelDIGI-WIFI/XA
More Information
RELATED PRODUCTS

PRODUCT DETAILS

Fast, efficient & cost-effective communication
The DIGI-WIFI/XA is a single path communicator that enables remote control of the system via the HomeControl+ App and PyronixCloud platforms, as well as InSite UDL software and Alarm Receiving Centre (ARC) connection.

Uses existing broadband
As the DIGI-WIFI/XA connects directly to the property’s existing internet via Wi-Fi into the router, there is no need to worry about additional data usage, monthly contracts or keeping it topped up.

CSL ARC Signalling
Allows alarm messages to be sent to a central Alarm Receiving Centre (ARC) via common protocols Fast Format and SIA.


Key Features:

  • WiFi Network communication module for the Pyronix IP control panels
  • Uses existing broadband
  • Communicates via the PyronixCloud, so no complicated port forwarding setup is required
  • Low cost installation with no additional costs other than the existing broadband connection
  • Send push notifications directly to the user’s smartphone via the HomeControl+ App
  • Easy setup by DHCP or manual IP configuration
  • Fully secure IP connection
  • Compatible with InSite programming software
  • Supplied with an antenna (1m cable)


SPECIFICATIONS

Communications and modems

Formats
Fast Format IP (UK Only), Contact ID IP, SIA IP, supports upload/downloading

Electrical & battery

Operating voltage
+12VDC
Quiescent current consumption
30mA

Certifications and warranty

Electrical conformity
CE
EN Certificate
EN 50131-1: 2006
Environmental class
II
Warranty2 years
2 years
USEFUL FILES AND LINKS
Videos
No videos available
Files
  Installation Manual
Links*
Pyronix website
Pyronix support site

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

QUESTIONS AND ANSWERS

Get expert answers to questions specific to this product below or for more help visit our Q&A forum


Hi, does this work with the EURO 76 Panel? Is a particular firmware version of the panel needed? Thanks
( )
This module is compatible with both the Euro 46 and Euro 76 panels out-the-box.
( )
What firmware version of the Euro 46 panel is required in order to connect a Wi-Fi module?
( )
The Wi-Fi module works on the version 10 or newer Euro 46 panels
( )
Is this compatible with my alarm system - Pyronix euro mini alarm system? (Pyronix WiFi IP Module with External Antenna)

I want to achieve remote arming / dissarming - is this the part i need?

Thanks, Mark
( )
The communication modules are not compatible with the Mini P alarm. You will require the Euro 46 panel or Wireless Enforcer system for this.
( )
Is this compatible with the euro 46 V10
( )
Yes, the DIGI-WIFI/XA is the correct Wi-Fi module for the Euro 46 V10.
( )
