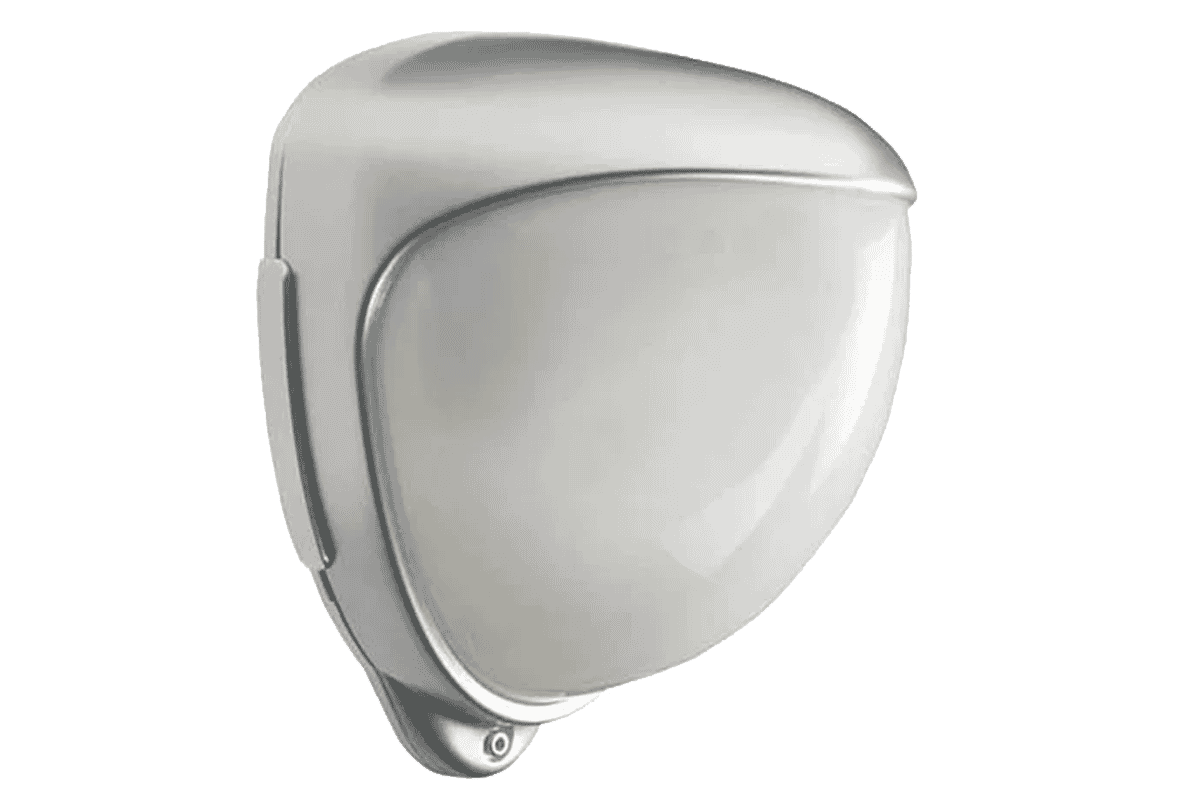

GJD D-TECT 3 IP Motion Detector 30m
GJD
- 30m Long-Range Detection
- IP Network Connectivity
- Customisable Detection Zones
The GJD D-TECT 3 IP is a professional-grade, network-connected motion detector designed for accurate, reliable outdoor detection up to 30 metres (Read more)
PRODUCT DETAILS
The GJD D-TECT 3 IP is a professional-grade, network-connected motion detector designed for accurate, reliable outdoor detection up to 30 metres. Engineered for integration with IP security systems, it delivers precise coverage, advanced configuration options, and robust performance in all weather conditions, making it ideal for commercial, industrial, and high-security environments.
Features:
- Detection Range: Up to 30m (programmable)
- Detection Angle: Adjustable from narrow to wide coverage
- Connectivity: IP network interface for direct system integration
- Power Supply: 12–24 V AC/DC or PoE (model dependent)
- Housing: High-impact ABS plastic with UV stability
- Protection Rating: IP65 weatherproof
- Operating Temperature: -20°C to +55°C
- Dimensions: Approx. 145 × 120 × 155 mm
- Weight: ~363 g (net)
- Mounting Height: Optimum 3m for maximum range
- Applications: Perimeter security, car parks, loading bays, site entrances
| Specifications |
|
| Range | Up to 30m programmable |
|---|---|
| Coverage | 10º – 70º detection angle, 30m × 30m max |
| Adjustment | 180º pan + 90º tilt, with visual pan & tilt alignment markers |
| Mounting Height | Optimum 3m |
| Fresnel Lens | 12 zones for each pyro pair |
| Customised Optics | Double silicon shielded quad element eliminates 50,000 Lux of white light |
| Network Alarms | User configurable HTTP web requests, XML and raw TCP socket support. Direct integration for all major VMS software |
| Outputs | 2 × volt-free, silent solid state magnetically immune, programmable trigger options |
| Power Supply | Power over Ethernet (48V DC) |
| Power Consumption | Max 3.8W, PoE class 1 |
| Ethernet Standard | Ethernet IEEE 802.3af, TCP/IP |
| User Interface | Web browser user interface. No software or installation needed |
| Pulse Count | 1, 2, 3 |
| Walk Test | Output test mode with LED indication |
| Operating Temperature | -20ºC to +55ºC, conformally coated electronics for increased stability |
| Temperature Compensation | Digital sensitivity adjustment |
| Timer Options | Up to 120 seconds |
| Light Sensing | Dusk (2 Lux) to 24 hour |
| Housing | High impact zinc alloy |
| Protection Rating | Minimum IP65 |
| Dimensions | 145 × 120 × 115 mm |
| Weight | 692 g |
| Accessories | GJD304 Conduit Adaptor, PMB1 Pole Mount Bracket, GJD308 D-Guard, GJD380 Walk Tester |
| Videos |
|---|
| No videos available |
| Files |
|---|
| GJD D-TECT 3 IP Motion Detector 30m Datasheet |
| GJD D-TECT 3 IP Motion Detector 30m User Manual |
| Links* |
|---|
| GJD website |
| GJD support site |
