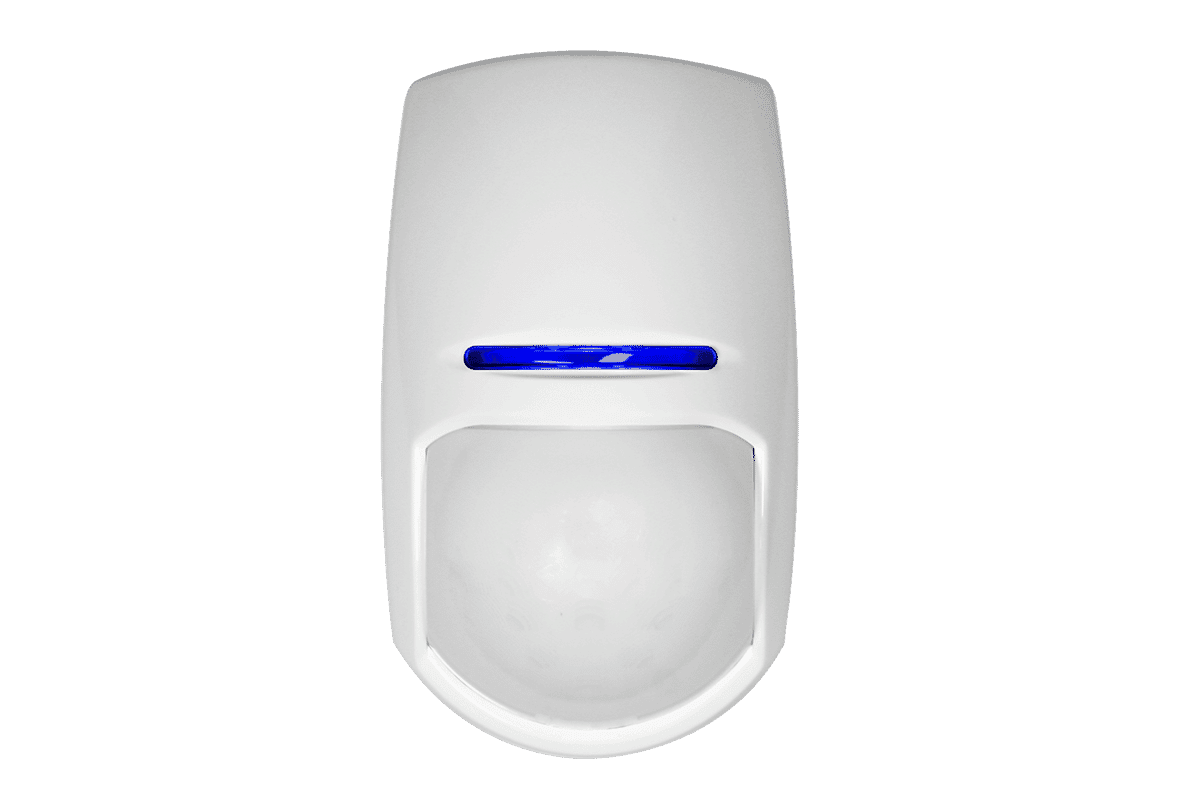

Pyronix KX10DTP 10m Dual Tech Detector
fullscreen
  • Pyronix KX10DTP 10m Dual Tech Detector

Pyronix KX10DTP 10m Dual Tech Detector

Pyronix Hikvision Pyronix Hikvision

  • Dual technology
  • 10m range pet immune
  • Tamper proof bracket
Full description
24 Months warranty    3 reward points
£25.13
£20.94 Ex VAT
Availability In stock
Delivery From £4.99* Inc VAT
Product Code12486
Model NumberKX10DTP
DELIVERY
Next day delivery available.
Order today for delivery from
Tuesday 23rd July
Qty Ex VAT Inc VAT
1+£20.94£25.13

Pyronix Dual-tech 10 Metre Wired Motion Detector

The Pyronix KX10DTP is dual technology wired motion detector with pet immunity and a 10 metre coverage area.


Dual Technology Detection

The KX10DTP is a dual-tech detector which use passive infrared and microwave sensors for highly accurate detection over an area of up to 10 metres. The use of dual technologies significantly reduces false alarms even in areas where conventional detectors may often trigger false alarms.


Pyronix Wired Dual-tech Detector Comparison Diagram

pyronix_wired_detector_comparison_diagram.PNG?scale.width=733


KX10DTP(-WE) Lens Coverage



Features

  • Dual Technology detector
  • 10m range pet immune detector
  • Ideal for conservatories or rooms with large expanses of glass
  • Supplied in different frequency bands to eliminate microwave cross talk
  • Complies with EN50131-1
  • Tamper proof brackets included


Product variants available

 Detectors technical characteristics
Blue Wave technology
Yes
Automatic sensitivity
Yes
Digital temperature compensation
Yes
DEOL resistor on board
Yes
Tamper protection
Front and Rear
Separate LED indication
Microwave, PIR, Alarm
3 microwave frequencies to avoid interference
Yes
 Detectors technical characteristics
Maximum range
10m
Volumetric coverage
Yes
Dual technology
Yes
Animal immunity
24kg
Detection speed
0.3- 3.0m/s
Coverage angle
85 degree
Detection zones
58
Detection planes
6
Anticloaking technology
Yes
White light filter
6500 lux
Protection
Ultraviolet light filter
Lens
3 dimensional
Optics
Sealed optics
Detection method
Low noise dual element pyroelectric sensor and Microwave Doppler Sensor
 Mounting
Wall mounted
Bracket included
Ceiling mounted
Bracket included
Optimum coverage height
2.4m
Certified mounting height
1.8 - 2.4m
 Environmental and operating features
Storage temperature
-40C to 80C
Certified operating temperature
-10C to 40C
Nominal operating temperature
-30C to 60C
Physical dimensions (H x W x D)
117 x 69 x 50mm
Weight
125g
 Electrical & battery
Operating voltage
9-16V DC 13.8V DC typical
Quiescent current consumption
24mA @ 12V (Min), 30mA @ 12V (Max)
Contact Resistance
<10 ohms
Relay outputs
50mA 60 VDC, 42 VAC (RMS)
Tamper switch
12V 50mA
 Certifications and warranty
Security Grade
Grade 2
Environmental class
II
EN Certificate
EN50131-2-4:2008, EN50131-1:2006+A1:2009, PD6662:2010
Certification type
IMQ
Certificate number
CA12.01425
Electrical conformity
CE
Warranty
5 years
