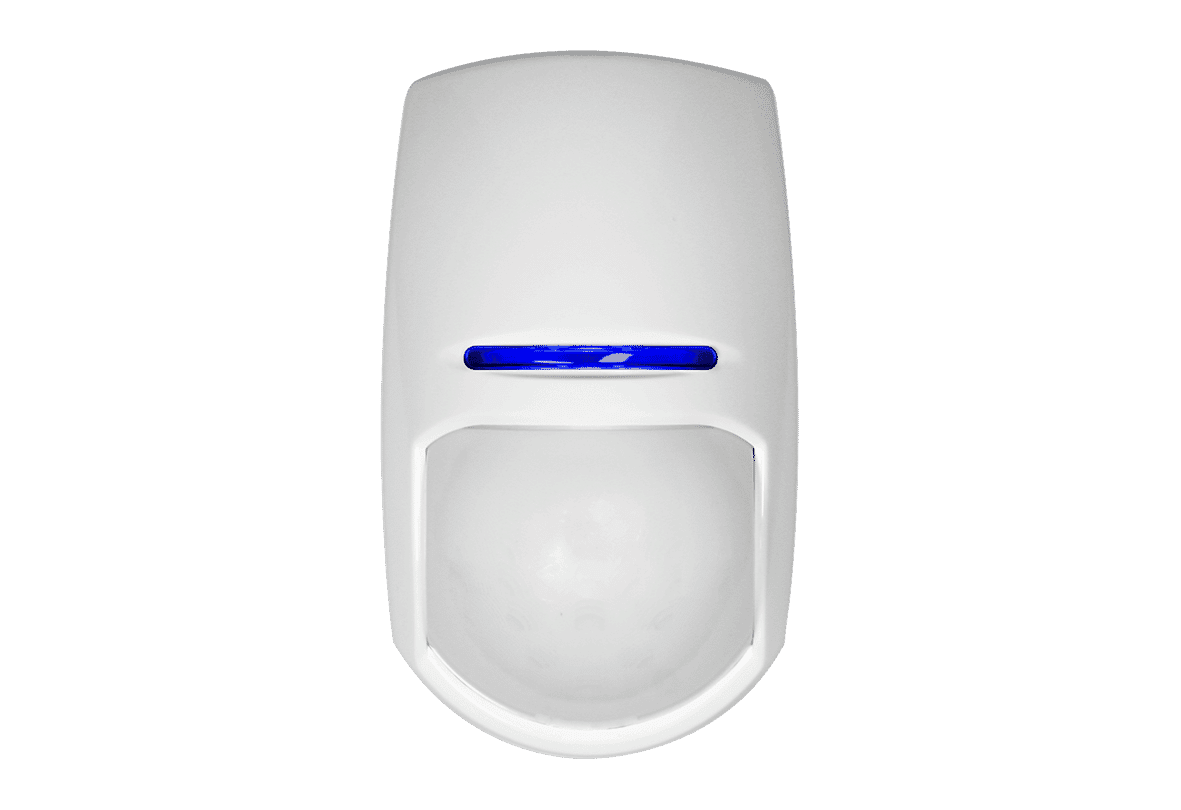

Pyronix KX15DT 15m Dual Tech Wired Detector
Pyronix
- Grade 2
- 15m Detection Range
- Dual technology
The Pyronix KX15DT is a Dual Technology Wired Detector with creep zone protection that uses PIR and Microwave for reliable detection up to 15 metres (Read more)
PRODUCT DETAILS
The Pyronix KX15DT is dual technology wired motion detector with a 15 metre coverage area and creep zone protection.
Dual Technology Detection
The KX15DT is a dual-tech detector which use passive infrared and microwave sensors for highly accurate detection over an area of up to 15 metres. The use of dual technologies significantly reduces false alarms even in areas where conventional detectors may often trigger false alarms.
Pyronix Wired Dual-tech Detector Comparison Diagram
KX15DT(AM) Lens Coverage
Key Features
- Dual technology detector using PIR and Microwave sensors
- Selectable EOL (End Of Line) resistors
- Brackets included
- AND/OR technology
- Patented Independent Floating Thresholds (IFT)
- Blue Wave Technology
- Auto sensitivity feature and digital temperature compensation
- Triple LED indication
- Different frequency options avoiding microwave crosstalk
- Sealed optics
- Tamper proof brackets optional
- Complies with EN50131-1
| Detectors technical characteristics |
|
| Blue Wave technology |
Yes |
| Automatic sensitivity |
Yes |
| Set sensitivity |
Auto or high |
| Digital temperature compensation |
Yes |
| DEOL resistor on board |
Yes |
| Tamper protection |
Front |
| 3 microwave frequencies to avoid interference |
Yes |
| Optical, lens and detection
characteristics |
|
| Maximum range |
15m |
| Volumetric coverage |
Yes |
| Dual technology |
Yes |
| Detection speed |
0.3 - 3.0 m/s |
| Coverage angle |
85 degree |
| Detection zones |
74 |
| Detection planes |
7 |
| Anticloaking technology |
Yes |
| Protection of area under the detector (creep zone) |
Yes |
| White light filter |
6500 Lux |
| Protection |
Ultraviolet light filter |
| Lens |
3 dimensional |
| Optics |
Sealed optics |
| Detection method |
Low noise dual element pyroelectric sensor and Microwave
Doppler Sensor |
| Mounting |
|
| Wall mounted |
Bracket included |
| Ceiling mounted |
Bracket included |
| Optimum coverage height |
1.8 - 2.4m |
| Certified mounting height |
2.4m |
| Environmental and operating features |
|
| Storage temperature |
-40C to +80C |
| Certified operating temperature |
-10C to +40C |
| Nominal operating temperature |
-30C to +60C |
| Physical dimensions (H x W x D) |
117 x 69 x 50mm |
| Weight |
125g without bracket |
| Electrical & battery |
|
| Operating voltage |
9-16V DC 13.8V DC typical |
| Quiescent current consumption |
24mA @ 12V (Min), 30mA @ 12V (Max) |
| Contact Resistance |
<10 ohms |
| Relay outputs |
50mA 60 VDC, 42 VAC (RMS) |
| Tamper switch |
12V 50mA |
| Certifications and warranty |
|
| Electrical conformity |
CE |
| EN Certificate |
EN50131-2-4:2008, EN50131-1, PD6662:2010 |
| Certification type |
IMQ |
| Certificate number |
CA12.01175 |
| Environmental class |
II |
| Warranty |
5 years |
| Security Grade |
Grade 2 |
