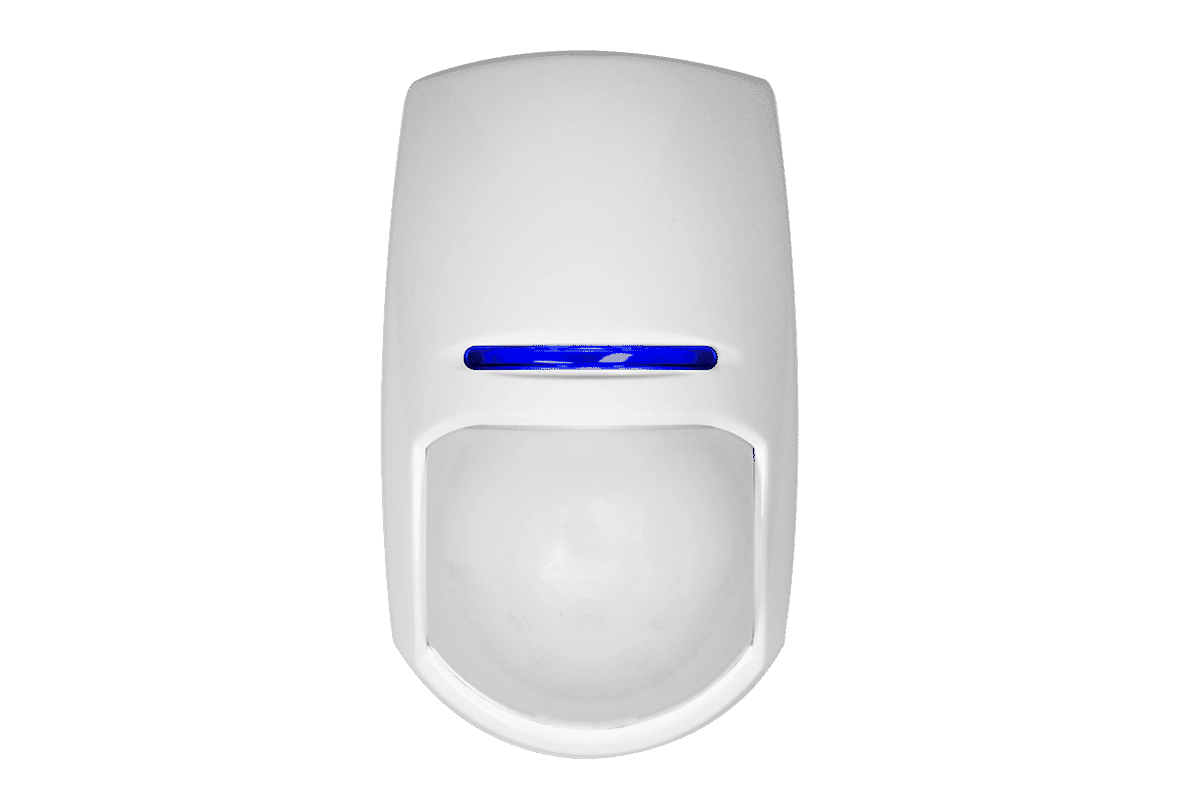

Pyronix KX15DTAM 15m Dual Tech Anti-mask Detector
Pyronix
- Anti-masking technology
- Dual technology
- 5 year guarantee
The Pyronix KX15DTAM is a dual technology motion sensor featuring anti-masking technology and suitable for grade 3 alarm installations (Read more)
PRODUCT DETAILS
The Pyronix KX15DTAM is dual technology wired motion detector with a 10 metre coverage area and anti-masking protection.
Dual Technology Detection
The KX15DTAM is a dual-tech detector which use passive infrared and microwave sensors for highly accurate detection over an area of up to 15 metres. The use of dual technologies significantly reduces false alarms even in areas where conventional detectors may often trigger false alarms.
Pyronix Wired Dual-tech Detector Comparison Diagram
KX15DT(AM) Lens Coverage
Features
- Patented anti-masking technology
- Dual technology
- Grade 3 compliant
- Selectable EOL (End Of Line) resistors
- Blue Wave Technology
- Auto sensitivity feature
- Digital temperature compensation
- Tamper proof brackets included
- Sealed optics
- ABS plastics
- Dual element pyro-electric sensor
| Detectors technical characteristics |
|
| Blue Wave technology |
Yes |
| Automatic sensitivity |
Yes |
| Set sensitivity |
Auto or Pulse Count 1 |
| Digital temperature compensation |
Yes |
| DEOL resistor on board |
Yes |
| Tamper protection |
Front and rear |
| Separate LED indication |
Microwave, PIR, Alarm |
| 3 microwave frequencies to avoid interference |
Yes |
| Maximum range |
15m or 18m |
| Volumetric coverage |
Yes |
| Dual technology |
Yes |
| Detection speed |
0.2 - 2.5m/s |
| Coverage angle |
85 degree |
| Detection zones |
74 |
| Detection planes |
7 |
| Adjustable antimasking (antispray) |
Yes |
| Anticloaking technology |
Yes |
| Protection of area under the detector (creep zone) |
Yes |
| White light filter |
6500 Lux |
| Protection |
Ultraviolet light filter |
| Lens |
3 dimensional |
| Optics |
Sealed optics |
| Mounting |
|
| Wall mounted |
Bracket included |
| Ceiling mounted |
Bracket included |
| Optimum coverage height |
1.8 - 2.4m |
| Certified mounting height |
2.4m |
| Environmental and operating features |
|
| Storage temperature |
-40C to +80C |
| Certified operating temperature |
-10C to +40C |
| Nominal operating temperature |
-30C to +60C |
| Physical dimensions (H x W x D) |
117 x 69 x 50mm |
| Weight |
125g without bracket |
| Electrical & battery |
|
| Operating voltage |
9-16V DC 13.8V DC typical |
| Quiescent current consumption |
24mA @ 12V (Min), 30mA @ 12V (Max) |
| Contact Resistance |
<10 ohms |
| Relay outputs |
50mA 60 VDC, 42 VAC (RMS) |
| Tamper switch |
12V 50mA |
| Certifications and warranty |
|
| Security Grade |
Grade 3 |
| Environmental class |
II |
| EN Certificate |
EN50131-2-4:2008, EN50131-1, PD6662:2010 |
| Certification type |
IMQ |
| Certificate number |
CA12.01176 |
| Electrical conformity |
CE |
| Warranty |
5 years |
