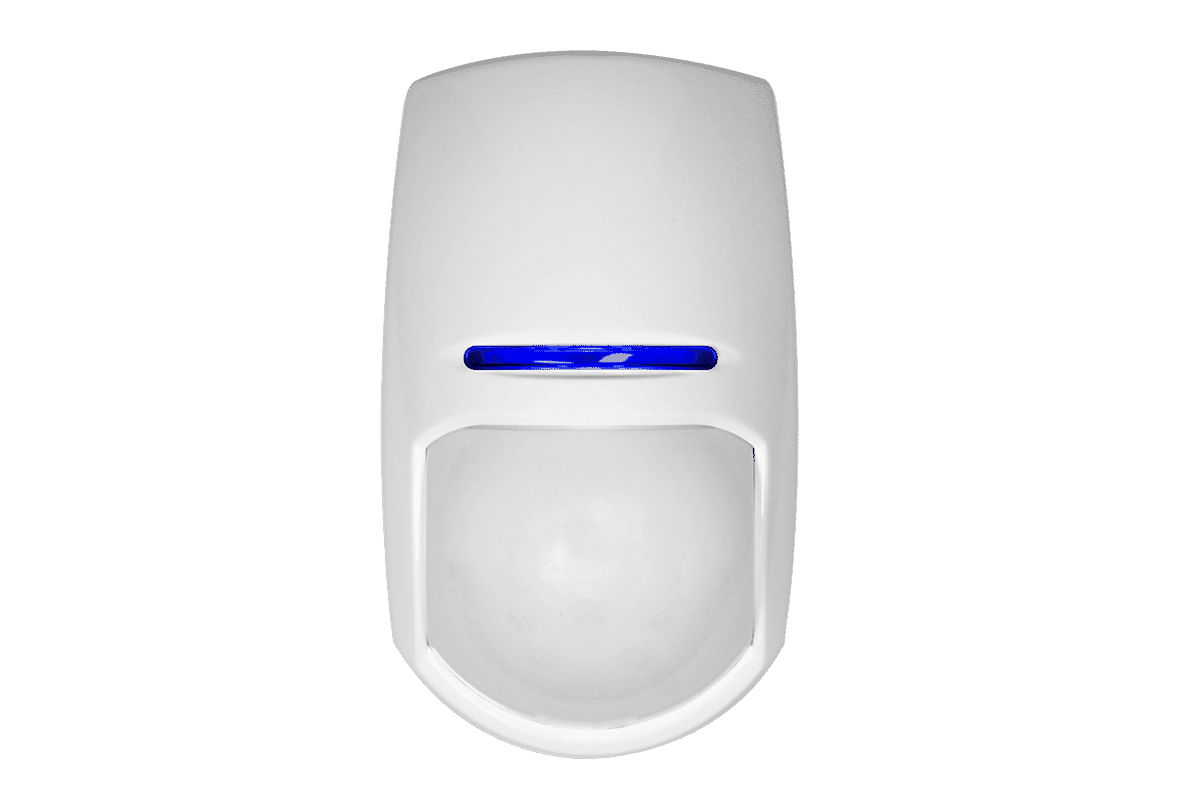

Pyronix KX15ED 15 Meter Wired PIR Detector
fullscreen
  • Pyronix KX15ED 15 Meter Wired PIR Detector

Pyronix KX15ED 15 Meter Wired PIR Detector

Pyronix Hikvision Pyronix Hikvision

  • Digital temperature monitoring
  • 15m detection coverage
  • Dual element
Full description
60 Months warranty    1 reward points
£9.94
£8.28 Ex VAT
Availability In stock
Delivery From £3.99* Inc VAT
Product Code12491
Model NumberFPKX15ED
DELIVERY
Next day delivery available.
Order before 15:00 for delivery from
Tuesday 15th October
Qty Ex VAT Inc VAT
1+£8.28£9.94

Pyronix 15 meter Wired Motion Sensor

The Pyronix KX15ED is a wired PIR based motion detector that has an extended 15 metre coverage area as well as creep zone protection.


Pyronix Indoor Detector Comparison

pyronix_indoor_wired_pir_comparison_diagram.PNG?scale.width=733


Features

  • Dual element pyro-electric sensor
  • 15m volumetric detection coverage
  • Selectable EOL (End Of Line) resistors
  • Blue Wave Technology
  • Auto sensitivity feature
  • Digital temperature compensation
  • Tamper-proof brackets
  • Sealed optics
  • ABS plastics
  • Complies with EN50131-1
 Detectors technical characteristics
Blue Wave technology
Yes
Automatic sensitivity
Yes
Set sensitivity
Auto, High or Low
DEOL resistor on board
Yes
Tamper protection
Front and rear
 Detectors technical characteristics
Maximum range
15m
Volumetric coverage
Yes
Detection speed
0.3- 3.0m/s
Coverage angle
85 degree
Detection zones
60
Detection planes
7
Protection of area under the detector (creep zone)
Yes
White light filter
6500 Lux
Protection
Ultraviolet light filter
Lens
3 dimensional
Optics
Sealed optics
Detection method
Low noise dual element pyroelectric sensor
 Mounting
Wall mounted
Bracket included
Ceiling mounted
Bracket included
Optimum coverage height
1.8 - 2.4m
Certified mounting height
2.4m
 Environmental and operating features
Storage temperature
-40C to 80C
Certified operating temperature
-10C to 40C
Nominal operating temperature
-30C to 70C
Physical dimensions (H x W x D)
117 x 69 x 50mm
Weight
125g without bracket
 Electrical & battery
Operating voltage
9-16V DC 13.8V DC typical
Quiescent current consumption
13mA @ 12V (Min), 16mA @ 12V (Max)
Contact Resistance
<10 ohms
Relay outputs
50mA 60 VDC, 42 VAC (RMS)
Tamper switch
12V 50mA
 Certifications and warranty
Security Grade
Grade 2
Environmental class
II
EN Certificate
EN50131-2-2:2008 | EN50130-4:2011 | EN50130-5:2011 | PD6662:2010
Certification type
IMQ
Certificate number
CA12.01171
Electrical conformity
CE
Warranty
5 years

Product variants available

Files
  Pyronix KX15DD Datasheet
External links*
Pyronix Hikvision website
Pyronix Hikvision support site
