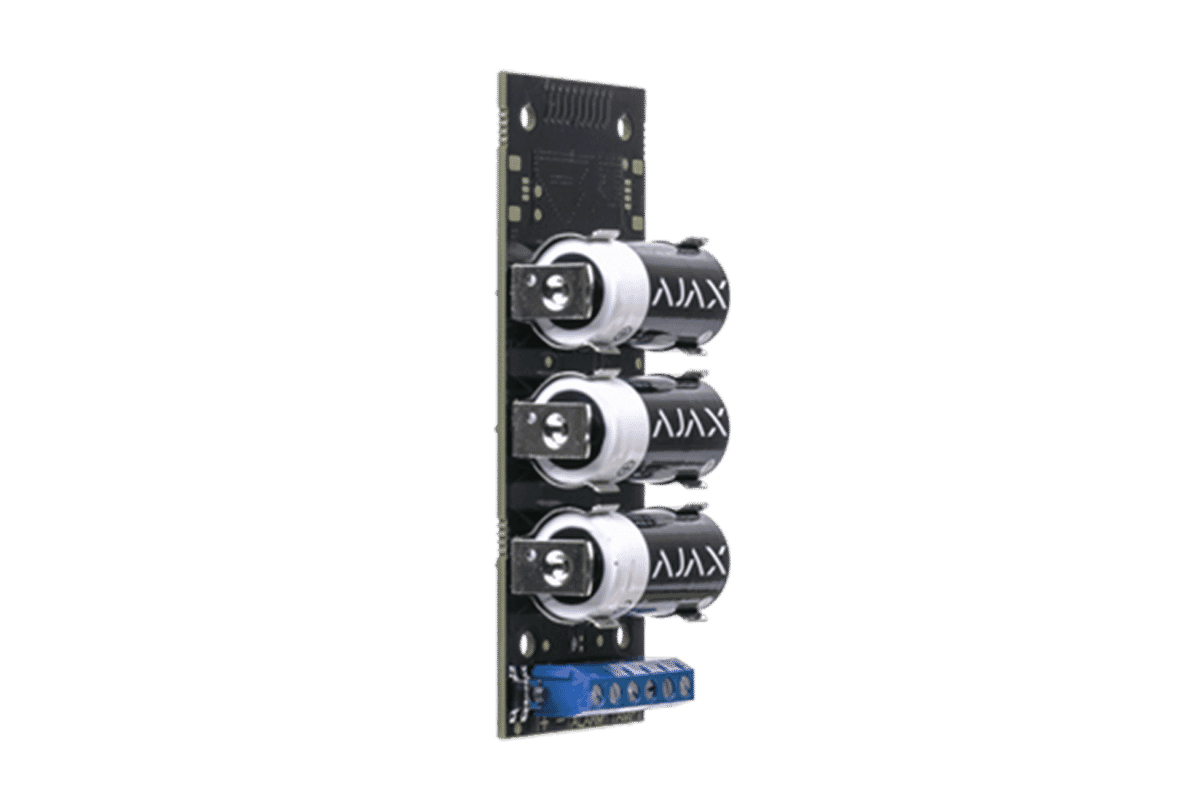

Ajax Transmitter Module for Third Party Devices 56211.18.NC1
Ajax
- Add 3rd Party Devices
- Works as a Power Supply
- 2 year guarantee
The Ajax 3.3V Transmitter module allows you to connect a third-party wired detector or device to the Ajax Jeweller wireless alarm security system (Read more)
PRODUCT DETAILS

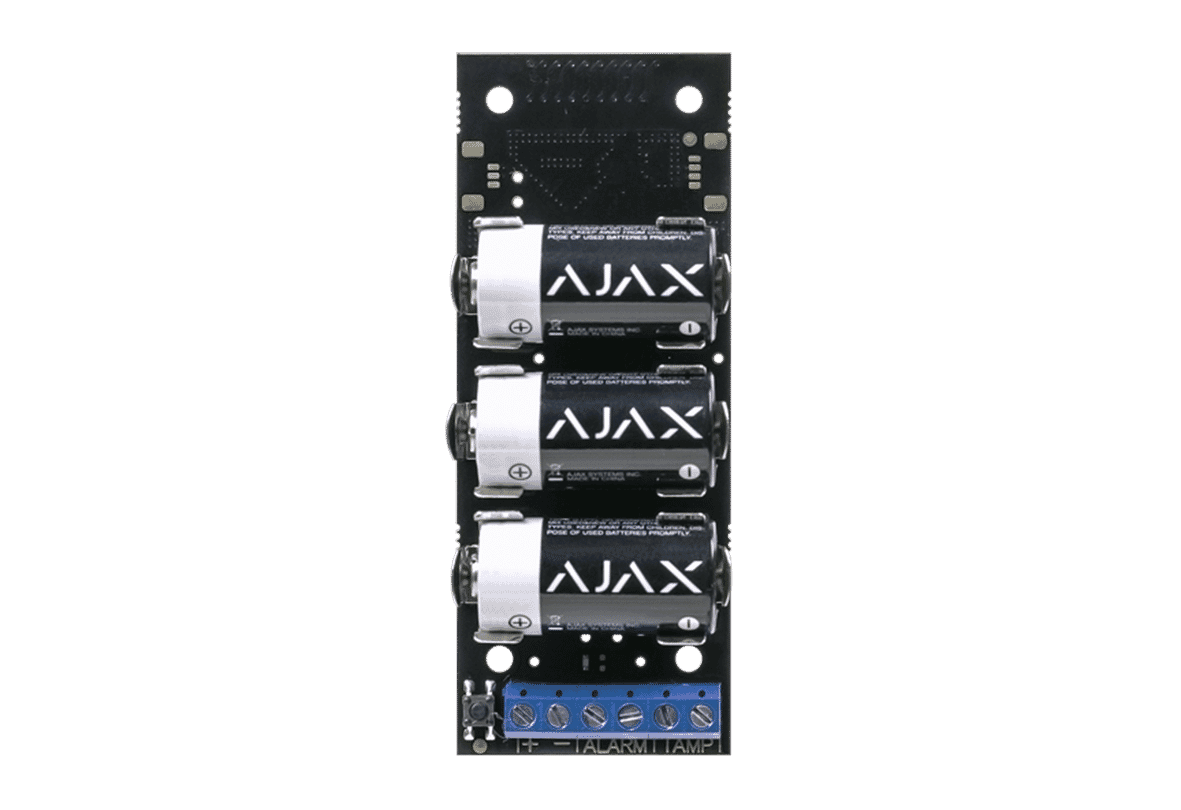

The Ajax Transmitter allows you to connect a third-party wired detector or device to the Ajax security system. The module receives information about alarms and events via a wired connection. Having received an event, it transmits it to the hub via the Jeweller radio protocol, and the hub notifies the security company and system users.
The Transmitter works with any detector or device with NC/NO contact type. The module supports 8 types of events for connected devices: intrusion, fire, medical help, panic button, gas alarm, malfunction, leakage, and custom event. The type of event determines the alarm code sent to the security company monitoring station and the text of notification received by the user. This ensures an accurate response to the threat.
Features:
- Makes third-party wired device part of the Ajax security system
- Provides 3.3 V⎓ power supply for the wired device
- Operates in temperatures from −25°C to +50°С and humidity up to 75%
| Specifications | |
| Installation method |
Indoors Outdoors in sealed box or inside the detector casing |
| Compatible control panels |
All Ajax hubs |
| Compatible range extenders |
All Ajax range extenders |
| Compatible wired devices |
All Ajax detector or device with NC/NO
contact type |
| Alarm input |
1 |
| Supported normal state of alarm
input |
Normally closed (NC) Normally open (NO) |
| Supported third-party device type |
Pulse Bistable |
| Tamper input |
1 |
| Supported normal state of tamper
input |
Normally closed (NC) Normally open (NO) |
| Power supply output for the wired detector or device |
3.3 V⎓ |
| Adjustable alarm types |
Intrusion Fire Medical help Panic button Gas alarm Malfunction Leakage Custom If the Custom type of the event is selected, notifications about it will not be sent to the security company's control panel and via SMS to system users. |
| Module power supply |
3 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Transmitter user manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
