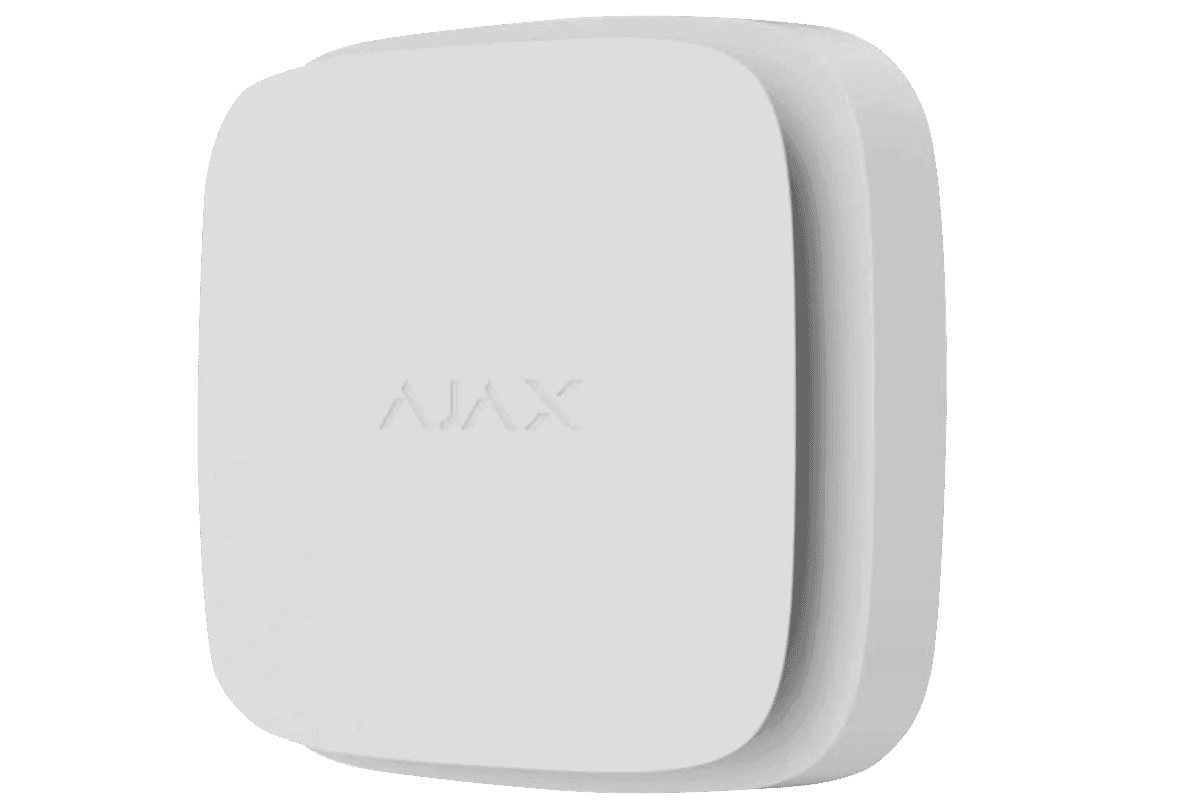

Ajax FireProtect 2 RB Jeweller Wireless Heat Alarm - White
Ajax
- Replaceable Batteries
- 85 dB Siren
- 2 Inbuilt Thermistors
The Ajax FireProtect 2 RB is a next-gen heat detector that features two A1R-class thermistors to detect smokeless fire threats, with an 85 dB siren. (Read more)
PRODUCT DETAILS
The Ajax FireProtect 2 RB is a next-gen heat detector designed for residential fire safety. With two thermistors, the detector quickly reacts to the synthetic materials burning and notifies about danger with a built-in powerful siren and critical alerts from Ajax apps. Thought-out design, mounting, and in-app settings make installation straightforward and quick. Everything meets the most modern fire safety standards.
FireProtect 2 is equipped with two A1R-class thermistors to detect smokeless fire threats. They give a significant advantage in detecting a rapid temperature rise when synthetic materials burn, or a fire starts from smoldering. Thermistors are located outside the enclosure to eliminate life-saving detection delays. So FireProtect 2 is ready to detect a fire as fast as possible, even if it starts imperceptibly.
Cutting-edge engineering of hardware and software allowed us to implement advanced capabilities and offer autonomy in the size of the compact smart detector. FireProtect 2 complies with strict residential fire safety standards with long-lasting battery life while featuring constant data exchange with a hub and real-time analysis system to filter false alarms. The detector is available in two versions with different battery options to cover every market need.
For residential fire alarm systems, informing people about fire danger is the priority. FireProtect 2 is equipped with a powerful 85 dB siren to eliminate the risk of missing an alarm. The detector uses impossible-to-ignore tones with different patterns to indicate an alarm or event, so it’s easy to recognize the type of threat and react accordingly.
All FireProtect 2 detectors can synchronously notify about the fire alarm in two ways: primary and fallback. In case of danger, the initiating detector sends a fire alarm to the hub. The hub initiates the primary interconnect: all fire detectors will activate the built-in sirens in 20 seconds — three times faster than the fire standard requires. All information is immediately available in Ajax apps: initiating detector’s location, fire alarm type, and exact time.
If there is no connection with the hub, the initiating detector activates the fallback interconnection by directly sending the alarm to other fire detectors. It takes only 1 minute to raise an alarm.
Features:
- An interconnected alarm of all fire detectors at the facility in 20 seconds
- Built-in siren with a volume of 85 dB at a distance of 3 meters
- Ability to operate autonomously without an Ajax hub
- 10 years of operation with sealed batteries, and up to 7 years — with replaceable batteries
- SmartBracket mounting panel with the ability to align the detector after installation
- Remote control and configuring via Ajax app
- Pairing with the Ajax hub via QR code
- Two built-in thermistors
- Monitoring with PRO Desktop
| Communication |
|
| Jeweller communication technology |
Proprietary wireless technology for
transmission of alarms and events. Features:
|
| Radio frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the detector and a hub (or radio signal range extender) in an open space. |
| Encryption of radio communication |
All the data stored and transmitted are
protected by block encryption with a floating key. |
| Radio frequency hopping |
To prevent radio interference and
jamming. |
| Dangerous temperature
detection |
|
| Sensitive element |
according to the requirements for Class A1R
heat detectors Requirements of EN 54-5 and BS 5446-2 standards. |
| High temperature alarm |
at temperatures above 64°C |
| Temperature spike alarm |
when the temperature rises more than 10°C in 1 minute or
less |
| Additional
features |
|
| In-built siren |
volume 85 dB at a distance of 3 meters Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables notification. |
| Interconnected fire detectors alarms |
via primary interconnection If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps. via fallback interconnection* At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub. (* Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.) |
| LED indication |
green is a power indication A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291. yellow is an indication of malfunctions A LED indicator on the device enclosure lights up when malfunctions are detected. For example, if the battery is low. red is an indication of fire alarms A LED indicator on the device enclosure lights up when the detector registers a fire alarm. |
| Button on the front panel of the detector |
In normal mode, runs the detector test when pressed. In the
event of an alarm or malfunction, the pressing turns off the
detector sound notification. |
| Recommendations |
The device is designed only for indoor installation.
SmartBracket mounting panel allows adjusting the position of the
detector after installation. |
| Anti-sabotage
protection |
|
| Tampering alarm |
Alerts of attempts to detach the detector from the surface or
remove the mounting panel. |
| Protection against spoofing |
device authentication |
| Detection of communication failure |
within 15 minutes The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweller or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds. |
| Power supply |
|
| For FireProtect 2 RB (Heat) |
2 × CR123A battery Up to 7 years of battery life. |
| Enclosure |
|
| Dimensions |
44 × 86 × 86 mm |
| Weight |
146 g |
| Operating temperature range |
from 0°С to +50°С |
| Operating humidity |
up to 80% |
| Protection class |
IP20 |
| Colour | White |
| Complete set |
FireProtect 2 RB (Heat) Jeweller SmartBracket mounting panel Installation kit 2 × CR123A battery (pre-installed) Quick Start Guide |
