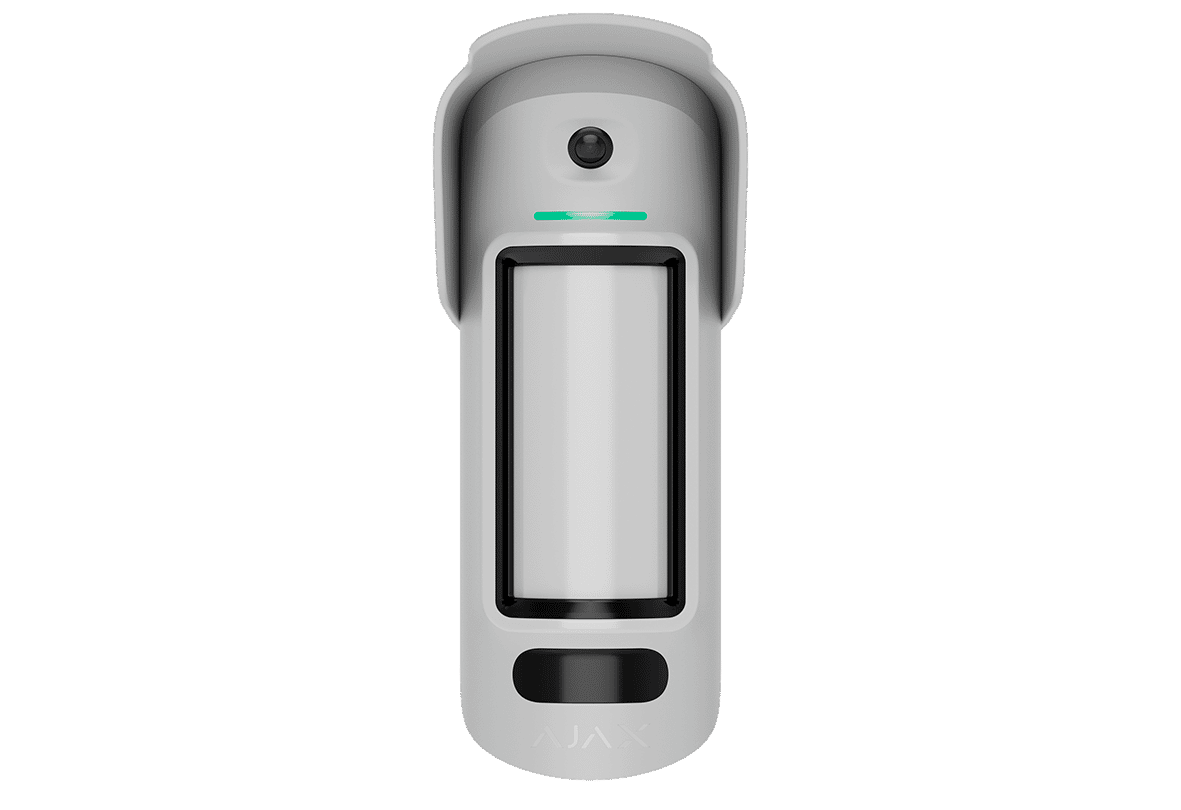

Ajax MotionCam Outdoor HighMount (PhOD) Wireless Outdoor IR Detector
Ajax
- Dual Tech Sensors
- Wired or Wireless
- 2 year guarantee
The Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless outdoor motion detector with a Photo on Demand option for real time visual security (Read more)
PRODUCT DETAILS

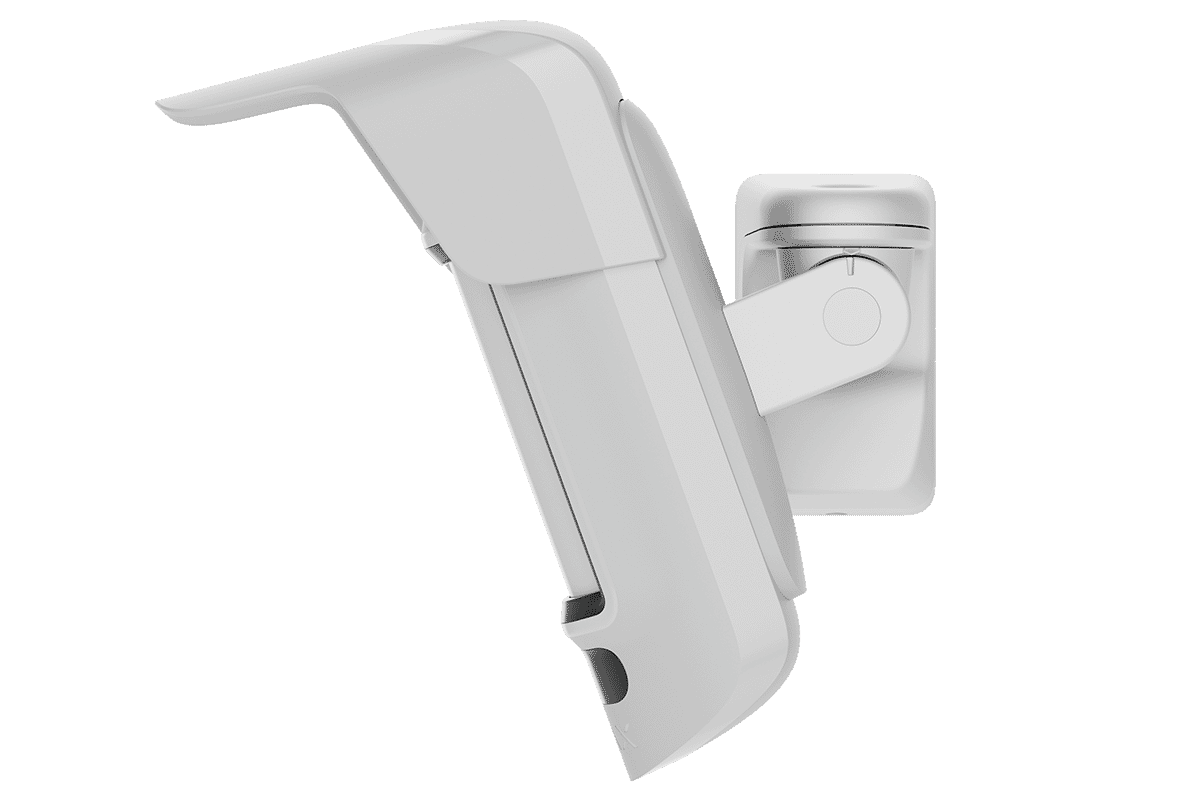

The Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector designed primarily for remote locations, warehouses, and industrial complexes, yet equally suited for offices and private houses. The device can be installed at heights ranging from 2 to 4 m, providing extensive area coverage with no blind zones. With a built-in camera, it is easy to quickly assess the situation at the protected facility. This is possible thanks to several types of photo verification available: by alarm, by scenario, by schedule, by arming/disarming, and on demand. The false alarm filter distinguishes non-threatening factors, such as swaying tree branches or heat flows. The metal swivel mount allows for flexible adjustment of the viewing angle.
Keep any commercial premises secure day and night, with no blind zones or false alarms. MotionCam Outdoor HighMount (PhOD) Jeweller detects movement at a distance of 15 m. The detector instantly takes a series of photos so the user can check the reason for the alarm. All alarms are thoroughly checked at both software and hardware levels. At the software level, the device uses algorithms such as SmartDetect and LISA. At the hardware level, it is equipped with two types of sensors — two PIR sensors and a microwave sensor — to provide dual motion detection. Also, a Fresnel lens differentiates between the PIR diagrams of people and thermal noise.
The MotionCam Outdoor HighMount (PhOD) can be powered either wirelessly using 6 × CR123A batteries (pre-installed), or wired using a 12−24 V⎓ power supply, with the batteries acting as a back up option if the power fails.
Interface

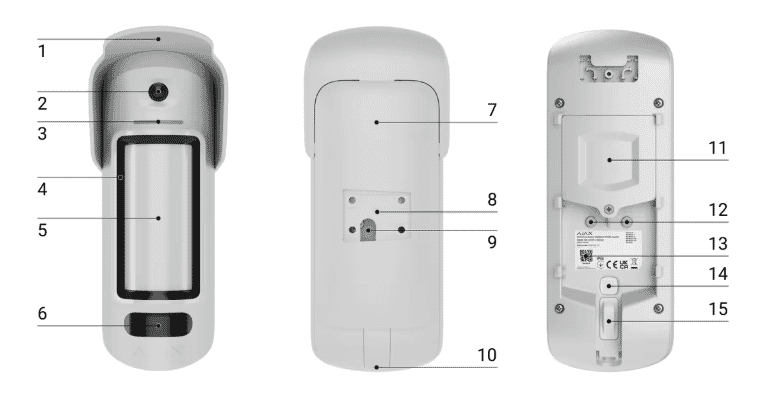

| Number | Description |
|---|---|
| 1 | Hood for protecting the camera and
anti-masking sensors from rain and snow |
| 2 | Camera |
| 3 | LED indicator |
| 4 | Masking sensor |
| 5 | Motion sensor lens |
| 6 | Infrared (IR) illumination. It is used
to take photos in dark and low-light conditions |

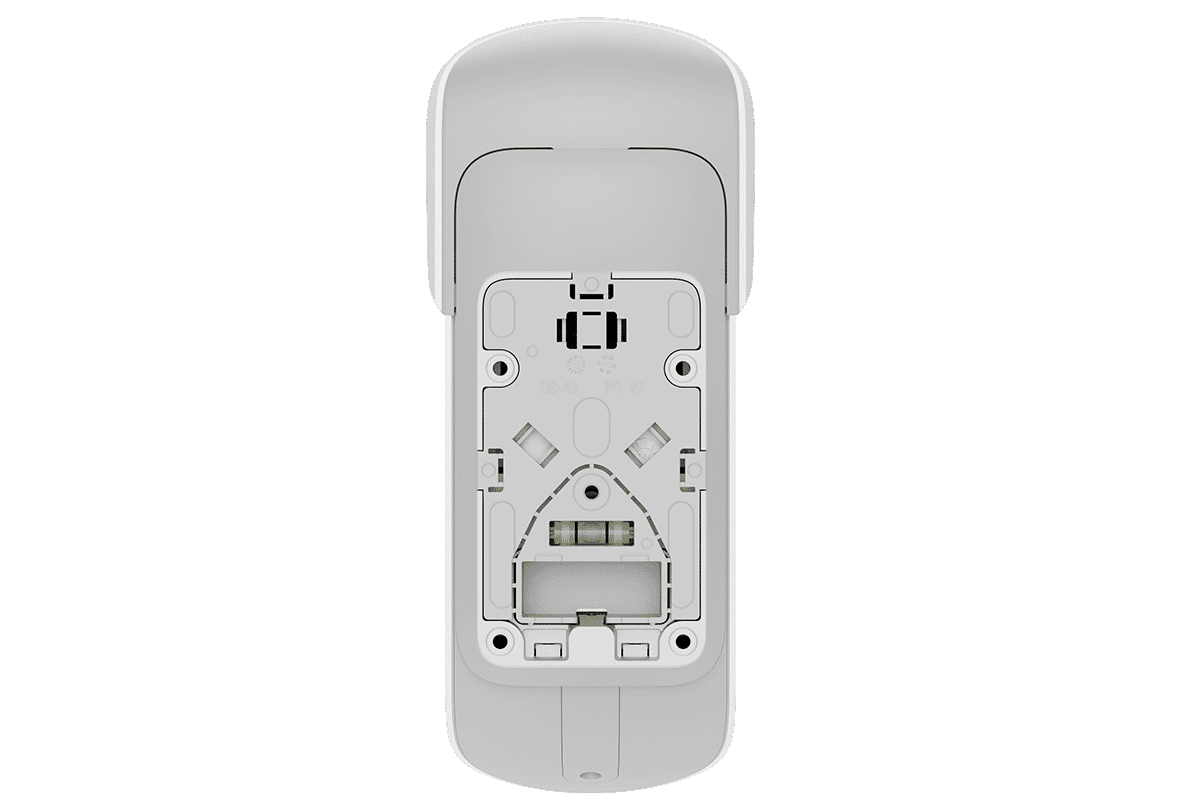

| 7 | SmartBracket mounting panel. To remove
the panel, slide it down |
| 8 | Recess for mounting SmartBracket to the
swivel mount |
| 9 | Hole for routing an external power
supply cable |
| 10 | Holding screw. It is used to fix the
device on the SmartBracket mounting panel |
| 11 | Lid of the battery
compartment |
| 12 | Terminals for the external power supply
connection |
| 13 | QR code with the device ID. It is used
to add the device to the hub |
| 14 | Power button |
| 15 | Tamper button |
Features:
- Wireless outdoor PIR detector with integrated HDR photo verification camera
- Photo on Demand (PhOD), photo by alarm, schedule, scenario, and arming/disarming
- Designed for installation at heights of 2-4 metres
- Detection range of up to 15 metres
- Dual PIR sensors with K-band microwave verification
- Intelligent false alarm reduction algorithms
- Built-in IR illumination for night-time image capture
- Anti-masking system, tamper protection, and integrated magnetometer
- Jeweller and Wings encrypted wireless communication
- Up to 1,700m wireless communication range (open space)
- IP55-rated weather-resistant housing
- Up to 3 years battery life with optional 12-24V external power support
- Compatible with Ajax Hub 2, Hub 2 Plus, Hub Hybrid, and ReX 2
| Specifications |
|
| Compatibility |
Control panels Hub 2 (2G) Jeweller Hub 2 (4G) Jeweller Hub 2 Plus Jeweller Hub Hybrid (2G) Hub Hybrid (4G) Range extenders ReX 2 Jeweller Ajax devices compatibility |
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit alarms and events. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 25 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All the data stored and transmitted are
protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping
to prevent interception and jamming. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo
verifications. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Radio signal range |
up to 1,700 m Between detector and hub or range extender in an open space. |
| Encrypted communication |
All the data stored and transmitted are protected by block
encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent
interception and jamming. |
| Detection |
|
| Sensitive element |
2 × PIR sensor 1 × K-band microwave sensor Operating frequency: 24 GHz. |
| Motion detection distance |
up to 15m When installed at a height of 2m - 4m |
| Motion detection angles |
horizontal: 90° |
| Motion detection speed |
rom 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by PRO or user with admin rights in the Ajax app |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −25 °C to +60
°C. |
| Photo
verification |
|
| Photo by Alarm |
A built-in camera is activated if the detector is armed and
motion is detected. |
| Photo on Demand |
The user takes pictures at any time or when the detector is
armed (depending on settings). The feature is disabled by
default. |
| Photo by Scenario |
The detector’s camera takes pictures automatically when other
Ajax detectors are triggered. The feature is disabled by
default. |
| Photo by Schedule |
The detector automatically takes photos at a specified time.
This feature is available for hubs (except Hub Jeweller) with
firmware version OS Malevich 2.19 or higher. |
| Adjustable photo resolution |
640 × 480 px 320 × 240 px (by default) Adjusted by PRO or user with admin rights in the Ajax app. |
| Camera viewing angles |
horizontal: 115° vertical: 84° |
| HDR image |
Improves the accuracy of detail in bright and dark
scenes. |
| IR backlight |
For night photography and low light conditions. |
| Series of pictures |
from 1 to 5 images with a resolution of 320 × 240 px from 1 to 3 images with a resolution of 640 × 480 px Adjusted by a PRO or a user with admin rights in Ajax apps |
| Photo delivery time |
up to 9 s for 320 × 240 px resolution up to 20 s for 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
| Recommendations |
|
| Recommendations |
It is recommended to install the detector at a height of 2–4
m. The pet immunity feature is not available for this device. The device is designed for outdoor and indoor use. |
| Sabotage
protection |
|
| Tamper alarm |
Notifications on attempts to detach the detector from the
surface or remove it from the mounting panel. |
| Magnetometer |
detects attempts to tilt or shift the detector or detach it
from the surface |
| Anti-masking system |
detects attempts to block the detector view |
| Holding screw |
to secure the detector on SmartBracket |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply |
|
| Batteries |
6 × CR123A Pre-installed. |
| Type |
Type C |
| Calculated battery life |
up to 3 years |
| Detector’s operating voltage range |
3.8−6.5 V⎓ |
| Detector’s nominal operating voltage |
6 V⎓ |
| Quiescent detector’s current consumption at nominal
voltage |
45 μA |
| Maximum detector’s current consumption at nominal
voltage |
1,200 mA |
| Full capacity |
4,800 mAh |
| Low battery voltage |
42 V⎓ |
| Low battery recovery voltage |
5 V⎓ |
| End-of-life battery voltage |
3.8 V⎓ Device is switched off. |
| End-of-life battery capacity |
300 mAh |
| Manufacturer |
Huiderui |
| Optional power
supply |
|
| External supply operating voltage |
12−24 V⎓ The batteries serve as a backup when an external power supply is connected. |
| Enclosure |
|
| Dimensions with the swivel mount |
234 × 98 × 230 mm |
| Dimensions without the swivel mount |
234 × 98 × 137 mm |
| Weight with the swivel mount |
1,010 g |
| Weight without the swivel mount |
620 g |
| Operating temperature range |
from −25 °C to +60 °C |
| Operating humidity |
up to 95% |
| Protection class |
IP55 |
| Colours |
White |
| Complete set |
MotionCam Outdoor HighMount (PhOD) Jeweller 6 × CR123A battery (pre-installed) SmartBracket mounting panel Swivel mount Hood Installation kit Quick start guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Ajax MotionCam Outdoor HighMount (PhOD) Datasheet |
| Ajax MotionCam Outdoor HighMount (PhOD) User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
