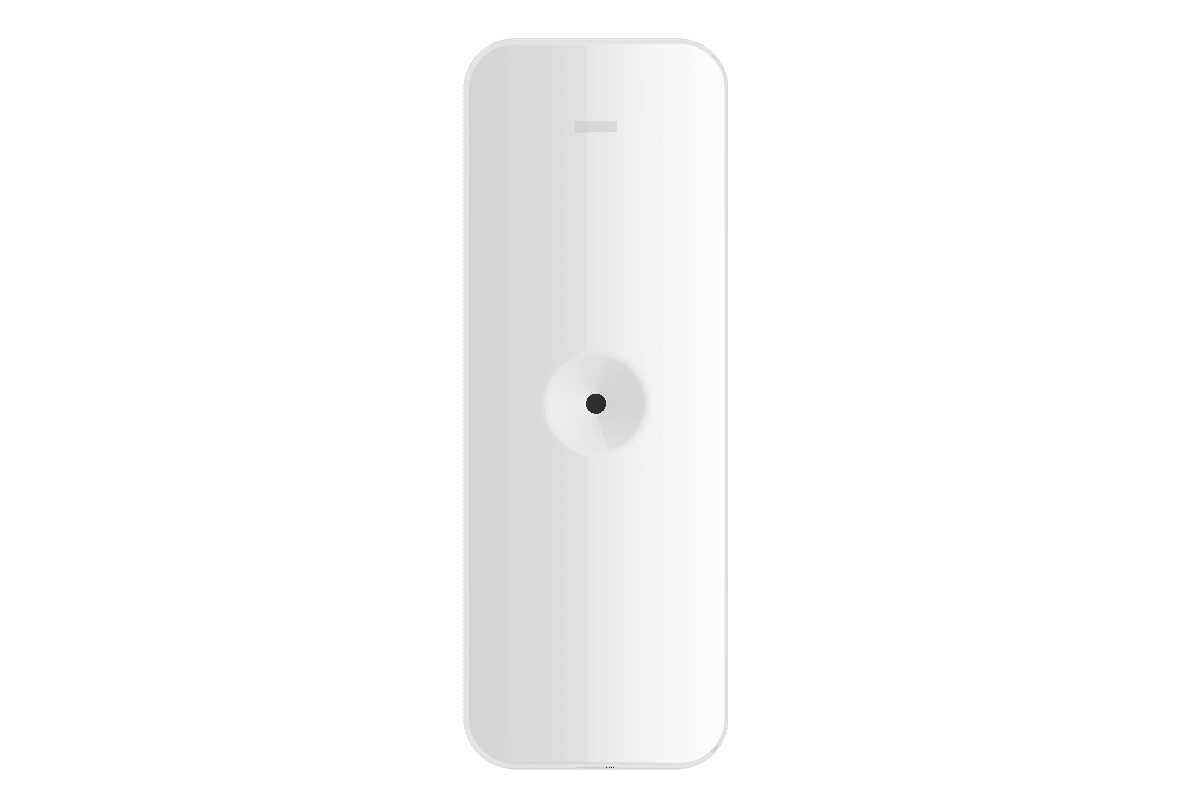

Hikvision DS-PDBG8-EG2-WE Wireless Glass Break Detector
fullscreen

Hikvision DS-PDBG8-EG2-WE Wireless Glass Break Detector

Rated 0/5   0 reviews | 0 Questions
Hikvision logo Hikvision
  • Easily replaceable battery
  • Remotely configurable
  • 3 year guarantee
Link to videos

Hikvision DS-PDBG8-EG2-WE Wireless Glass Break Detector uses a high quality omni-directional microphone, fully remote configurable through AX Pro app (Read more)

Loading
Availability In stock
Delivery From £3.98* Inc VAT
Product Code15143
ModelDS-PDBG8-EG2-WE
Next day delivery available. Order today for delivery from Wednesday 3rd April
More Information

PRODUCT DETAILS

The Hikvision DS-PDBG8-EG2-WE is a standalone glass break detector that is designed to be used with the Hikvision AX PRO wireless alarm system. It features a high quality Omni-directional microphone sensor to provide powerful and reliable intrusion detection from glass doors or windows, detecting breakages at a distance of up to 8m.

As with all AX PRO wireless components, the DS-PDBG8-EG2-WE is easy to install and is completely configurable through the Hikvision App.

The DS-PDBG8-EG2-WE uses Tri-X, a new generation of wireless protocol, which ensures a strong and steady network at all times, and the two way communication is AES-128 encrypted. Frequency hopping rapidly switches transmitting radio signals among several frequency channels for reliable transmission and makes it much more difficult to jam the signal.

Features

  • Digital processing
  • Fully remote configurable through App
  • Multiple enrolment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission
SPECIFICATIONS
Detection Performance
Detection Method Acoustic Sensor
Detection Range 8m
Detection Angle 120°
Sensitivity 2m;4m;6m;8m
Glass Type Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
Glass Thickness 2.4 mm to 6.4 mm
Glass Size 0.3 m × 0.3 m to 3 m × 3 m
Feature
Digital Processing Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Alarm Input Normally Closed; Normally Open; Impulse Count
Power Switch Power up enrolling
LED Indicator Blue (alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6Km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Power Supply Battery powered
Battery Type CR123A × 2
Typical Voltage 3V
Standard Battery Life Up to 5 years (standby time)
General
Operation Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operation Humidity 10% to 90%
Dimension (WxHxD) 38.8 mm × 107.0 mm × 24.5 mm
Weight 83g
Mounting Method Wall; Ceiling
Application Scenario Indoor
