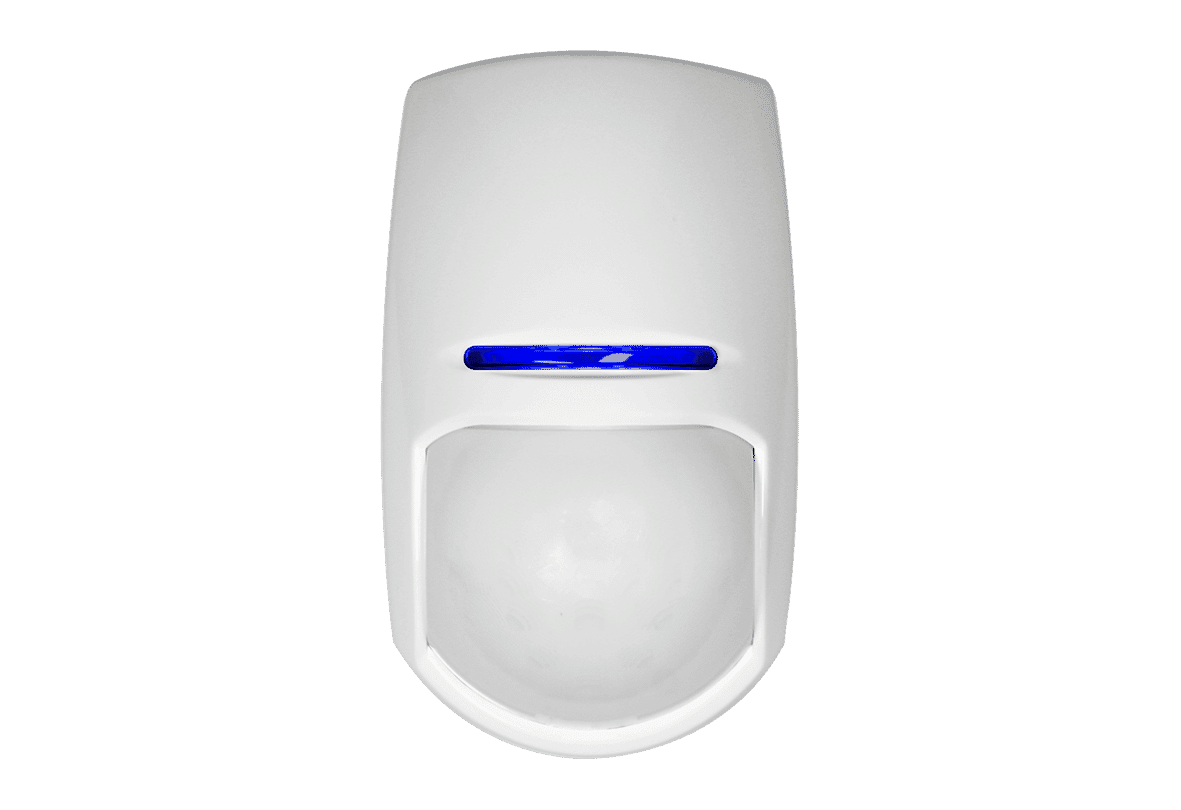

Pyronix KX12DQ-WE advanced wireless motion detector
Pyronix
- 12m detection range
- Reduced false alarms
- 300m Wireless Range
The Pyronix KX12DQ-WE dual element wireless motion detector has a 12m range and uses advanced digital quad detection methods to reduce false alarms (Read more)
PRODUCT DETAILS
The Pyronix KX12DQ-WE is a wireless motion sensor that uses superior signal analysis via the innovative DQ software for accurate detection of potential intruders over a large 12 metre area.
The KX12DQ-WE consists of a dual-element pyro-electric PIR sensor, which works by constantly monitoring the infrared energy levels around a room. The detector will recognise any changes caused by the entry of an intruder and inform the panel to go into an alarm condition.
Pyronix KX wireless Motion Detector Comparison
KX12DQ-WE Lens Coverage
Key Features
- 12m Volumetric detection
- Blue wave technology
- Digital temperature compensation
- Sealed optics
- ABS plastics
- Signal Strength Indicator on the Device
- Digital quad using dual element pyro-electric sensor
- Pyronix High Security Wireless Protocol Encryption
- 868MHz Transceiver FM technology
- Complies with EN50131-1
Detectors technical characteristics
| Two-way wireless technology |
Yes |
| Blue Wave technology |
Yes |
| Automatic sensitivity |
Yes |
| Digital temperature compensation |
Yes |
| Tamper protection |
Front and rear |
| Signal Strength Indicators (SSI) |
Yes |
Enforcer two-way wireless technology
| Signal Strength Indicators (SSI) |
Yes |
| Instant two way device control (ITDC) |
Yes |
| Pyronix high security two way wireless data encryption protocol
(TDE) |
Yes |
| Pyronix intelligent jamming detection |
Yes |
| Programmable wireless supervision time |
Yes |
| 868MHz transceiver FM technology |
Yes |
| One push to learn |
Yes |
| Tranmission method |
Fully encrypted rolling code |
| Transmission range |
1.6 km in open space |
Detectors technical characteristics
| Maximum range |
12m |
| Volumetric coverage |
Yes |
| Coverage angle |
85 degree |
| Detection zones |
60 |
| Detection planes |
7 |
Mounting
| Optimum coverage height |
1.8 - 2.4m |
| Certified mounting height |
2.4m |
Environmental and operating features
| Storage temperature |
-20C to 50C |
| Certified operating temperature |
-10C to 40C |
| Nominal operating temperature |
-10C to 50C |
| Physical dimensions (H x W x D) |
117 x 69 x 50mm |
Electrical & battery
| Battery type |
1 x CR123A |
| Battery life |
up to 2 years |
| Battery voltage |
3.0V |
| Low battery threshold |
2.5V +/- 5% at 25C |
Certifications and warranty
| Electrical conformity |
CE |
| EN Certificate |
EN50131-2-2:2008, EN50131-5-3:2005+A1:2008 |
| Certification type |
IMQ |
| Certificate number |
CA12.01325 |
| Environmental class |
II |
| Warranty |
2 years |
| Security Grade |
Grade 2 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Installation Manual |
| Datasheet |
| Links* |
|---|
| Pyronix website |
| Pyronix support site |
