Pyronix KX12DT-WE dual technology 12m wireless motion sensor
fullscreen

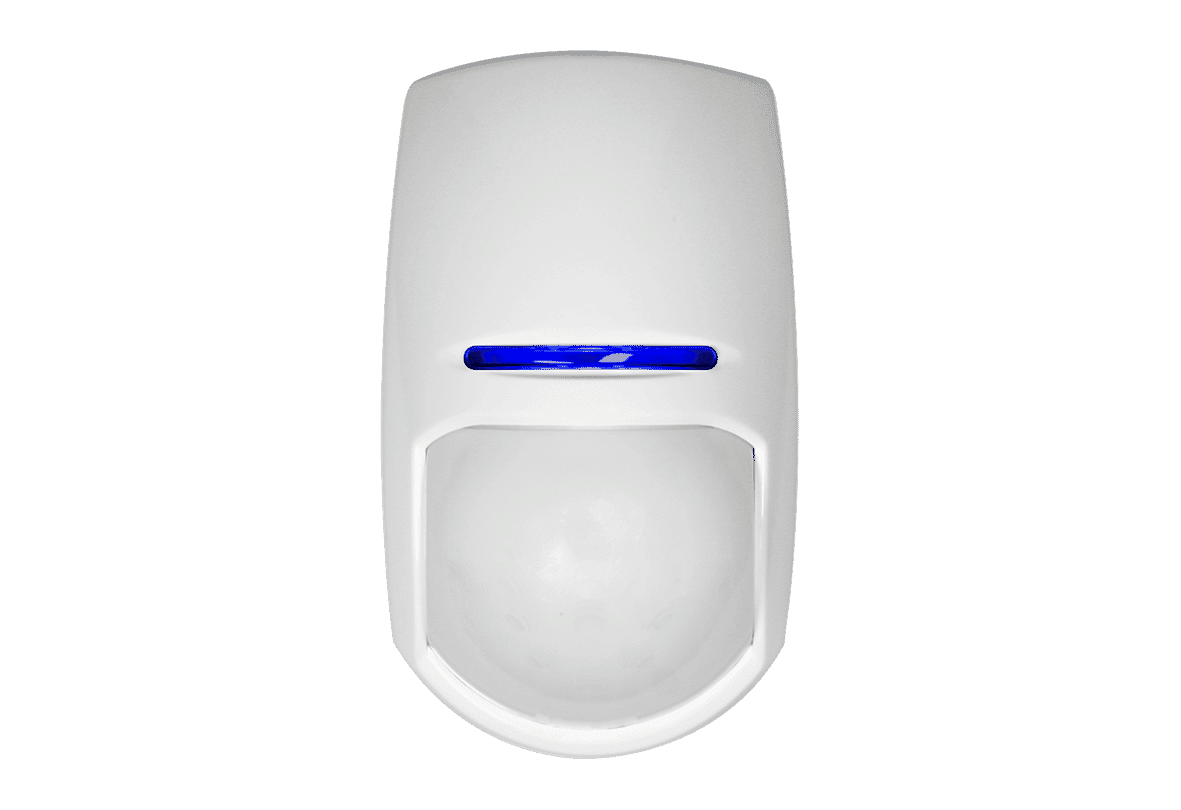

Pyronix KX12DT-WE dual technology 12m wireless motion sensor

Rated 0/5   0 reviews | 2 Questions
Pyronix logo Pyronix
  • Dual Tech
  • 300m Wireless range
  • 12m Detection range

The Pyronix KX12DT-WE Enforcer dual-tech wireless motion sensor combines PIR and microwave detection to reduce false alarms. (Read more)

Loading
£86.76
£72.30 Ex VAT
10+ In stock
Free delivery availale
Next day delivery available. Order before 15:30 for delivery from Monday 16th December
Product CodePYR0012
ModelKX12DT3-WE
More Information
RELATED PRODUCTS

PRODUCT DETAILS

The Pyronix KX12DT-WE is dual technology wireless motion detector with a 12 metre coverage area.


Dual Technology Detection

The KX12DT-WE is a dual-tech detector which use passive infrared and microwave sensors for highly accurate detection over an area of up to 12 metres. The use of dual technologies significantly reduces false alarms even in areas where conventional detectors may often trigger false alarms.


Pyronix Wireless Dual-tech Sensor Comparison

pyronix_wireless_indoor_pir_comparison_diagram.PNG?scale.width=733


Pyronix KX12DT-WE Lens Coverage



Key Features

  • Dual technology detector
  • Enforcer two-way wireless technology
  • Instant Two Way device control (ITDC)
  • Auto sensitivity
  • Digital temperature compensation
  • ABS plastics
  • 868MHz Transceiver FM technology
  • Complies with EN50131-1


YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS

Detectors technical characteristics

Two-way wireless technology
Yes
Blue Wave technology
Yes
Automatic sensitivity
Yes
Digital temperature compensation
Yes
Tamper protection
Front and Rear
Separate LED indication
Microwave, PIR, Alarm, Signal, Battery, Alarm, Tamper
3 microwave frequencies to avoid interference
Yes

Detectors technical characteristics

Signal Strength Indicators (SSI)
Yes
Instant two way device control (ITDC)
Yes
Pyronix high security two way wireless data encryption protocol (TDE)
Yes
Pyronix intelligent jamming detection
Yes
868MHz transceiver FM technology
Yes
One push to learn
Yes
Tranmission method
Fully encrypted rolling code
Transmission range
1.6km in open space

Detectors technical characteristics

Maximum range
12m
Volumetric coverage
Yes
Dual technology
Yes
Detection speed
0.3- 3.0m/s
Coverage angle
85 degree
Detection zones
60
Detection planes
7

Mounting

Optimum installation height
1.8 - 2.4m

Environmental and operating features

Storage temperature

-20C to 50C.
Certified operating temperature

-10C to 40C
Nominal operating temperature

-10C to 50C
Physical dimensions (H x W x D)

117 x 69 x 59mm

Electrical & battery

Battery type
2 x CR123A
Battery life
2 years
Battery voltage
3.0V

Certifications and warranty

Electrical conformity
CE
EN Certificate
EN50131-2-4:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
Certification type
IMQ
Certificate number
CA12.01483
Environmental class
II
Warranty
2 years
Security Grade
Grade 2
USEFUL FILES AND LINKS
Videos
No videos available
Files
  Installation Manual
  Datasheet
Links*
Pyronix website
Pyronix support site

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

QUESTIONS AND ANSWERS

Get expert answers to questions specific to this product below or for more help visit our Q&A forum


Can you use this sensor on a wired system by adding a receiver.
( )
Yes, you can use a ZEM32-WE connected to the RS485 bus to add them to a Pyronix wired system or a UR2-WE to add them to a different brand of alarm system
( )
For use in a bedroom. Does the sensor shine a light into the room if one moves around at night or is it just a light visible on the sensor? The former would be a problem as we are light sleepers.
( )
These sensors have a jumper option to disable the visible LED
( )
