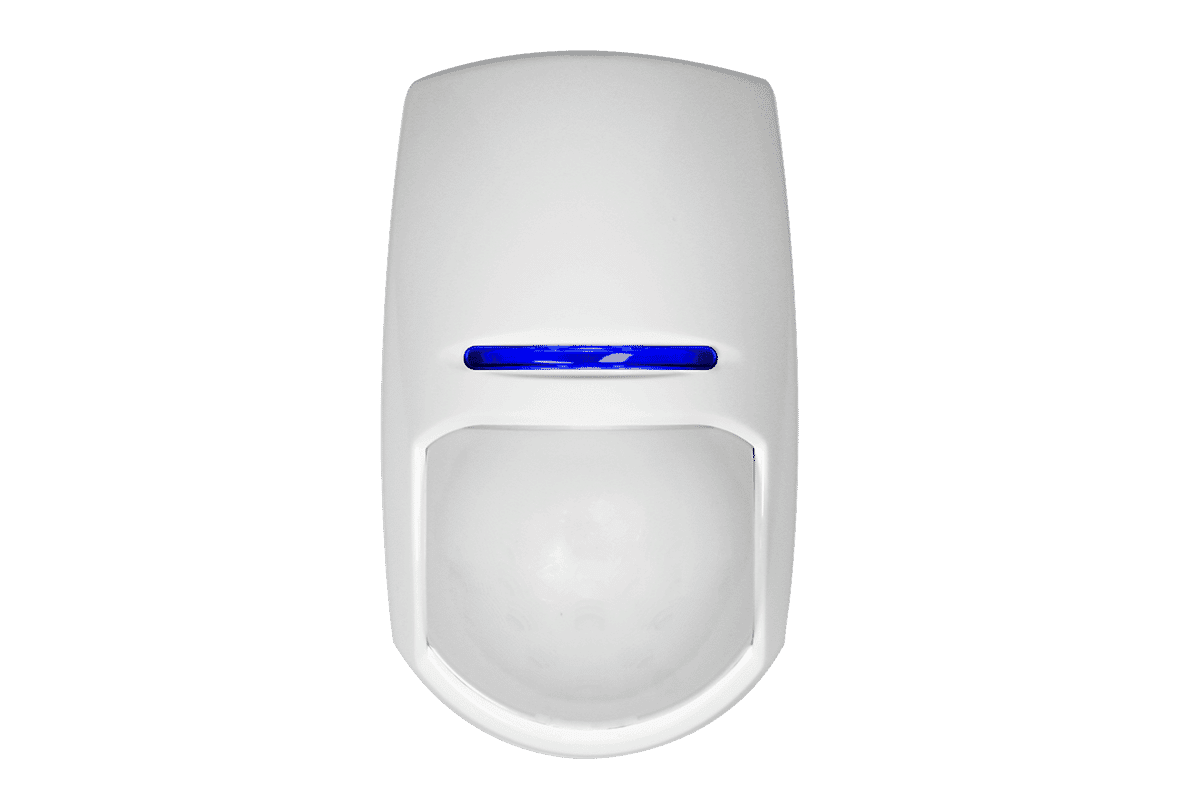

Pyronix KX15DC-WE wireless 15 meter curtain motion detector
Pyronix
- 15m Detection range
- Curtain coverage
- 300m Wireless Range
The Pyronix KX15DC-WE wireless 15 meter curtain motion detector provides a long narrow detection area for corridors or in front of windows and doors (Read more)
PRODUCT DETAILS
The Pyronix KX15DC-WE is a long range wireless motion detector with a narrow curtain style beam pattern that is effective up to 15 metres making it ideal for protecting narrow areas in need of detection, such as the space between the public and exhibits in museums or art galleries, or in front of displays in shops and businesses.
The KX15DC-WE consists of a dual-element pyro-electric PIR sensor, which works by constantly monitoring the infrared energy levels around a room. The detector will recognise any changes caused by the entry of an intruder and inform the panel to go into an alarm condition.
Pyronix KX Wireless Detector Comparison
KX15DC-WE Lens Coverage
Key features
- 15m digital curtain detector
- Enforcer two-way wireless technology
- Digital temperature compensation
- Blue Wave technology
- Sealed optics
- Electrostatic-reducing ABS plastic housing, 3mm
- Signal Strength Indicator
- 868MHz FM transceiver technology
- Complies with EN50131-1
Detectors technical characteristics
| Two-way wireless technology |
Yes |
| Blue Wave technology |
Yes |
| Automatic sensitivity |
Yes |
| Digital temperature compensation |
Yes |
| Tamper protection |
Front and rear |
| Signal Strength Indicators (SSI) |
Yes |
Enforcer two-way wireless technology
| Signal Strength Indicators (SSI) |
Yes |
| Instant two way device control (ITDC) |
Yes |
| Pyronix high security two way wireless data encryption protocol
(TDE) |
Yes |
| Pyronix intelligent jamming detection |
Yes |
| Programmable wireless supervision time |
Yes |
| 868MHz transceiver FM technology |
Yes |
| One push to learn |
Yes |
| Tranmission method |
Fully encrypted rolling code |
| Transmission range |
1.6km in open space |
Detectors technical characteristics
| Maximum range |
15m |
| Curtain coverage |
Yes |
| Detection speed |
0.3- 3.0m/s |
| Coverage angle |
20 degree |
| Detection zones |
46 |
| Detection planes |
6 |
Mounting
| Wall mounted |
Optional bracket available |
| Ceiling mounted |
Optional bracket available |
| Optimum coverage height |
2.4m or 4m |
Environmental and operating features
| Storage temperature |
-20C to 50C |
| Certified operating temperature |
-10C to 40C |
| Nominal operating temperature |
-10C to 50C |
| Physical dimensions (H x W x D) |
117 x 69 x 50mm |
Electrical & battery
| Battery type |
1 x CR123A |
| Battery life |
up to 2 years |
| Battery voltage |
3.0V |
| Low battery threshold |
2.5V +/- 5% at 25C |
Certifications and warranty
| Electrical conformity |
CE |
| EN Certificate |
EN50131-2-2:2008, EN50131-5-3:2005+A1:2008,
PD6662:2010 |
| Certification type |
IMQ |
| Certificate number |
CA12.01427 |
| Environmental class |
II |
| Warranty |
2 years |
| Security Grade |
Grade 2 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Installation Manual |
| Datasheet |
| Links* |
|---|
| Pyronix website |
| Pyronix support site |
