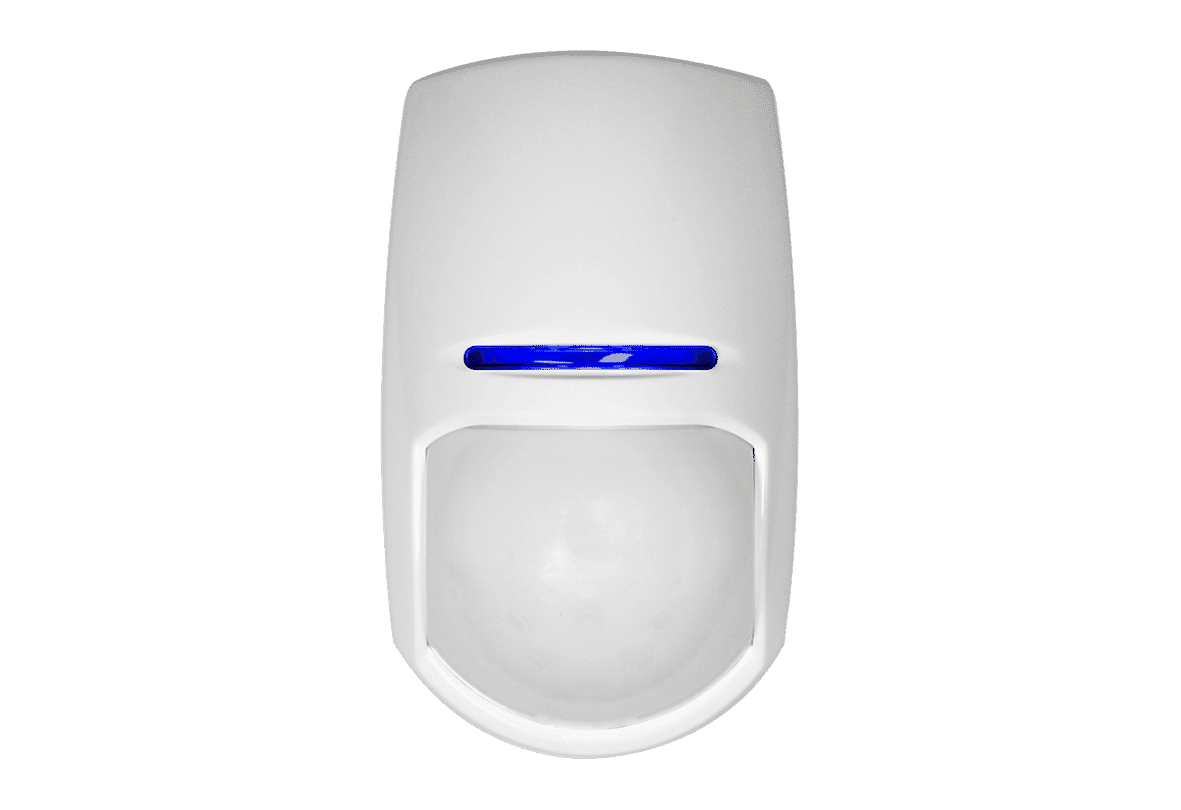

Pyronix KX25LR-WE long range wireless 25m motion detector
Pyronix
- Long 25m detection
- 300m Wireless range
- Grade 2
The Pyronix KX25LR-WE long range wireless motion detector for the Enforcer series of alarms that has a detection range of up to 25 meters. (Read more)
PRODUCT DETAILS
The Pyronix KX25LR-WE is a long range wireless motion detector that has a dual pattern sensor making it perfect for covering any property with long corridors, halls or hallways.
The KX25LR-WE consists of a dual-element pyro-electric PIR sensor, which works by constantly monitoring the infrared energy levels around a room. The detector will recognise any changes caused by the entry of an intruder and inform the panel to go into an alarm condition.
Pyronix KX Wiress Motion Detector Comparison
KX25LR-WE Lens Coverage
Key Features
- Long range coverage pattern
- Selectable sensitivity
- Blue Wave Technology
- Digital temperature compensation technology
- Sealed optics
- Electrostatic reducing ABS plastic shell, 3mm
- Signal Strength Indicator
- 868MHz FM transceiver technology
- Two-way wireless technology
- Grade 2 Complies with EN50131-1
Detectors technical characteristics
| Two-way wireless technology |
Yes |
| Blue Wave technology |
Yes |
| Automatic sensitivity |
Yes |
| Digital temperature compensation |
Yes |
| Tamper protection |
Front and rear |
Enforcer two-way wireless technology
| Signal Strength Indicators (SSI) |
Yes |
| Instant two way device control (ITDC) |
Yes |
| Pyronix high security two way wireless data encryption protocol
(TDE) |
Yes |
| Pyronix intelligent jamming detection |
Yes |
| Programmable wireless supervision time |
Yes |
| 868MHz transceiver FM technology |
Yes |
| One push to learn |
Yes |
| Transmission method |
Fully encrypted rolling code |
| Transmission range |
1.6km in open space |
Optical, lens and detection characteristics
| Maximum range |
25m |
| Long range coverage |
Yes |
| Detection speed |
0.3 - 3.0 m/s |
| Coverage angle |
20 degree |
| Detection zones |
24 |
| Detection planes |
6 |
Mounting
| Wall mounted |
Optional bracket available |
| Ceiling mounted |
Optional bracket available |
| Optimum coverage height |
1.8 - 2.4m |
| Certified mounting height |
2.4m |
Environmental and operating features
| Storage temperature |
-20C to 50C |
| Certified operating temperature |
-10C to 40C |
| Nominal operating temperature |
-10C to 50C |
| Physical dimensions (H x W x D) |
117 x 69 x 50mm |
Electrical & battery
| Battery type |
1 x CR123A |
| Battery life |
up to 2 years |
| Battery voltage |
3.0V |
| Low battery threshold |
2.5V +/- 5% at 25C |
Certifications and warranty
| Electrical conformity |
CE |
| EN Certificate |
EN50131-2-2:2008, EN50131-5-3:2005+A1:2008,
PD6662:2010 |
| Certification type |
IMQ |
| Certificate number |
CA12.0428 |
| Environmental class |
II |
| Warranty |
2 years |
| Security Grade |
Grade 2 |
