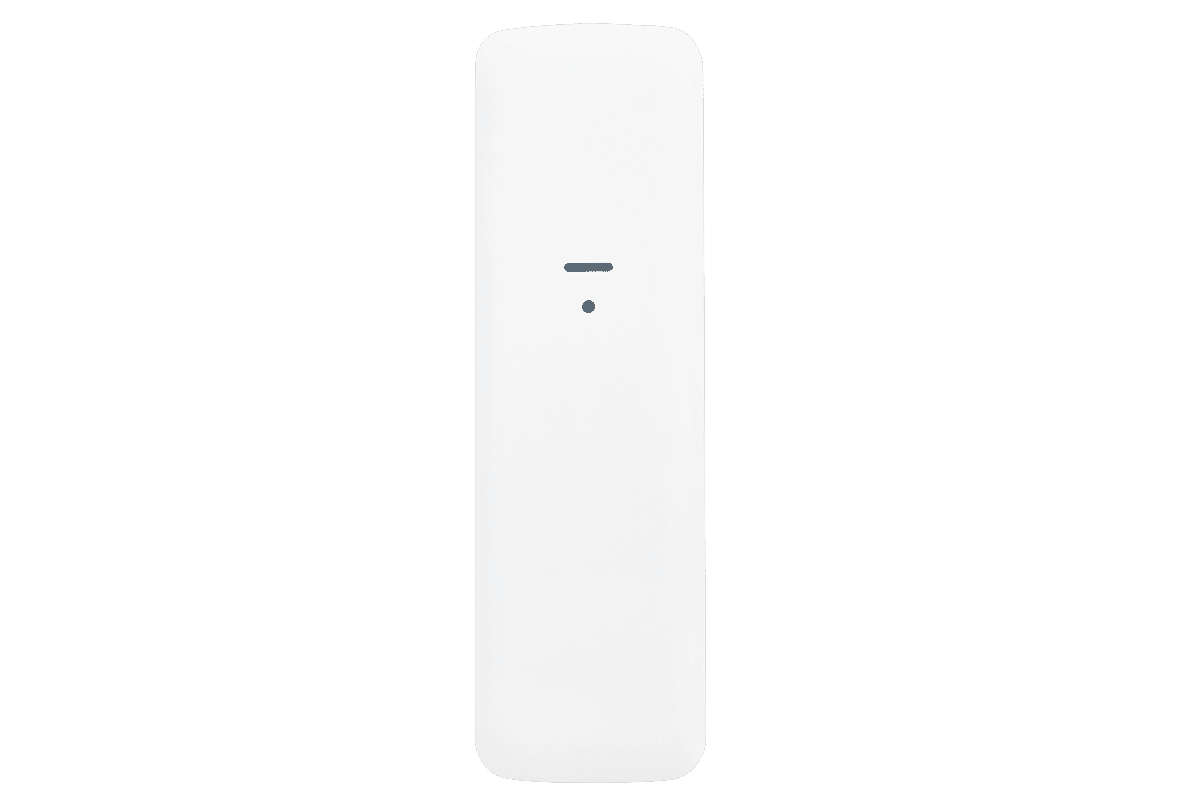

Pyronix NANO/SHOCK-WE Slimline Wireless Shock Sensor
fullscreen

Pyronix NANO/SHOCK-WE Slimline Wireless Shock Sensor

Rated 0/5   0 reviews | 0 Questions
Pyronix logo Pyronix
  • Shock Detection
  • One-Push-To-Learn
  • Auto-Orientation
  • 2 year guarantee

The Pyronix NANO/SHOCK-WE grade 2 wireless magnetic door and window contact which features a shock sensor, LED indication and auto-orientation. (Read more)

Loading
£47.88
£39.90 Ex VAT
7 reward points
Availability In stock
Delivery From £3.99* Inc VAT
Product Code16390
ModelNANO/SHOCK-WE
Next day delivery available. Order before 15:00 for delivery from Friday 1st July
Secure transaction

PRODUCT DETAILS

The Pyronix NANO/SHOCK-WE is a compact wireless shock sensor that fits out of sight within uPVC window or door frames, or surface mounted with its low profile and pleasing design. With superfast installation and calibration features such as auto-orientation and pin-hole sensitivity setup with LED indication, the NanoShock is a Grade 2 accelerometer device with excellent wireless range and boasts a 2 years battery life. It also features a conformally coated PCB, which ensures the stability and longevity of its electronic components in more changeable environments, for reliable protection.

Features:

  • Compact and modern design
  • Simple calibration with LED indication
  • A PCB that’s front and centre
  • Auto-orientation
  • Easy walk test
  • Match the décor
  • Out of sight, security in mind
  • Conformally coated for complete reassurance
  • Compatible with any Enforcer or EURO with a ZEM
  • No wires, no fuss
  • One-Push-To-Learn
  • Signal Strength Indicators
YOU MIGHT ALSO NEED
Loading




Loading




Loading




Loading




Loading




Loading




SPECIFICATIONS
Specifications
Dimensions (W x H x D)
30 x 95 x 10mm
Weight
30g
Casing /Colour
2mm polycarbonate-ABS, white
LED colours
Red, blue and green
Transmission frequency
868MHz FM transceiver narrow band
Transmission method
Fully encrypted rolling code
Sensitivity
5 levels from low to high
Battery
2 x lithium CR2450R
Low battery threshold
2.2V +/-5% @ 25ºC
Tamper switch
Front and rear
Temperature
Storage: -20ºC to 50ºC
Operating: -10ºC to 40ºC
Emissions
EN55022 Class B
Immunity
EN50130-4
Warranty
2 years
