Pyronix XDL12TT-WE External 12m Wireless Motion Sensor
fullscreen

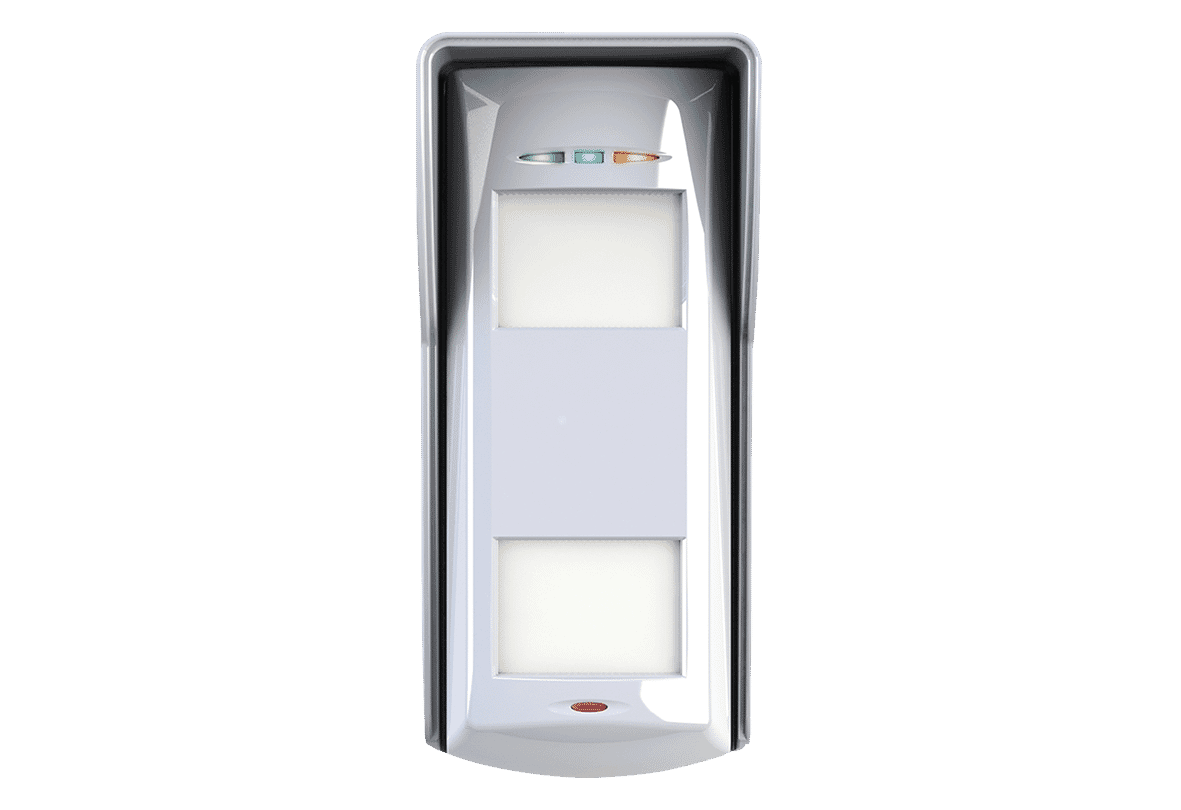

Pyronix XDL12TT-WE External 12m Wireless Motion Sensor

Rated 0/5   0 reviews | 0 Questions
Pyronix logo Pyronix
  • 12m Detection Range
  • External Pet immune
  • 1.6km Wireless Range

The Pyronix XDL12TT-WE external wireless volumetric detector provides a 12 meter detection zone and a wireless range in excess of 1km (Read more)

Loading
£152.89
£127.41 Ex VAT
23 reward points
Availability In stock
Delivery From FREE* Inc VAT
Product Code10769
ModelXDL12TT3-WE
Order before 15:30 for delivery from Wednesday 3rd April
Secure transaction
More Information

PRODUCT DETAILS

The Pyronix XDL12TT-WE is a low mount external wireless motion sensor designed for use with a Pyronix Enforcer™ wireless alarm system. The XDL12TT-WE has numerous advanced detection features including dual PIR's, microwave detection, anti-sway analysis, pet immunity and powerful digital signal processing.

The XDL12TT-WE is housed in a tough, weatherproof housing and can operate in a wide range of temperatures thanks to it's digital temperature compensation making it ideal for outdoor installation in almost any location.


Key features

  • Detection range 12m
  • Volumetric coverage 90°
  • Tri-Signal Detection Logic
  • Adjustable PIR/MW range
  • Dual-Vision Pet Immune (up to 35kg)
  • Up to 1.6km two-way wireless
  • Anti-Sway Analytics
  • Blue Wave Technology (BWT)
  • IP55 heavy duty design
  • Flexible installation and easy setup
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS

Detectors technical characteristics

Two-way wireless technology
Yes
Blue Wave Technology
Yes
Dual element pyroelectric sensor
Yes
Tamper protection
Front, rear and external tamper switch
Intergrated walk test buzzer
Yes
Separate LED indication
Top: Microwave, PIR 1 and alarm
Bottom: PIR 2
Signal Strength Indicators (SSI)
Yes
Anti-Sway Analytics
Yes
Weatherproof
IP55 rated
Adjustable sensitivity
High or low range
Casing
3mm polycarbonate
0.4mm HDPE in lens area

Detectors technical characteristics

Maximum range
12 metres
Volumetric coverage
90° coverage
Dual technology
Yes
Animal immunity
Up to 35kg
1 - 1.5m (mounting height of detector)
Tri technology
Yes
Detection speed
0.25 - 2.5m/s
Detection zones
22 (11 top, 11 bottom)
Detection planes
2
White light filter
Yes
Lens
UV compensated
Optics
Dual-Vision sealed optics
Detection method
Tri-Signal Detection Logic
Sensor
2 low noise dual element passive infrared sensors and a microwave doppler unit

Mounting

Wall mounted
Optional brackets:
XD-FIXEDBRACKET
XD-WALLBRACKET
XD-45D-ADAPTER
Optimum coverage height
1.2 metres

Environmental and operating features

Storage temperature
-40°C to 80°C
Certified operating temperature
-30°C to 70°C
Physical dimensions (H x W x D)
188 x 77 x 84mm (7.4" x 3" x 3.4")
Weight
0.3kg (10.6oz)

Electrical & battery

Battery type
2x 3V 4700mAh Lithium battery packs (BATT-ES1)
Battery life
Up to 3 years
Battery capacity
4700mAh

Certifications and warranty

Environmental class
IV
USEFUL FILES AND LINKS
Videos
-- No videos available --
Files
  Installation Manual
  Fixing Instructions
Links*
Pyronix website
Pyronix support site
