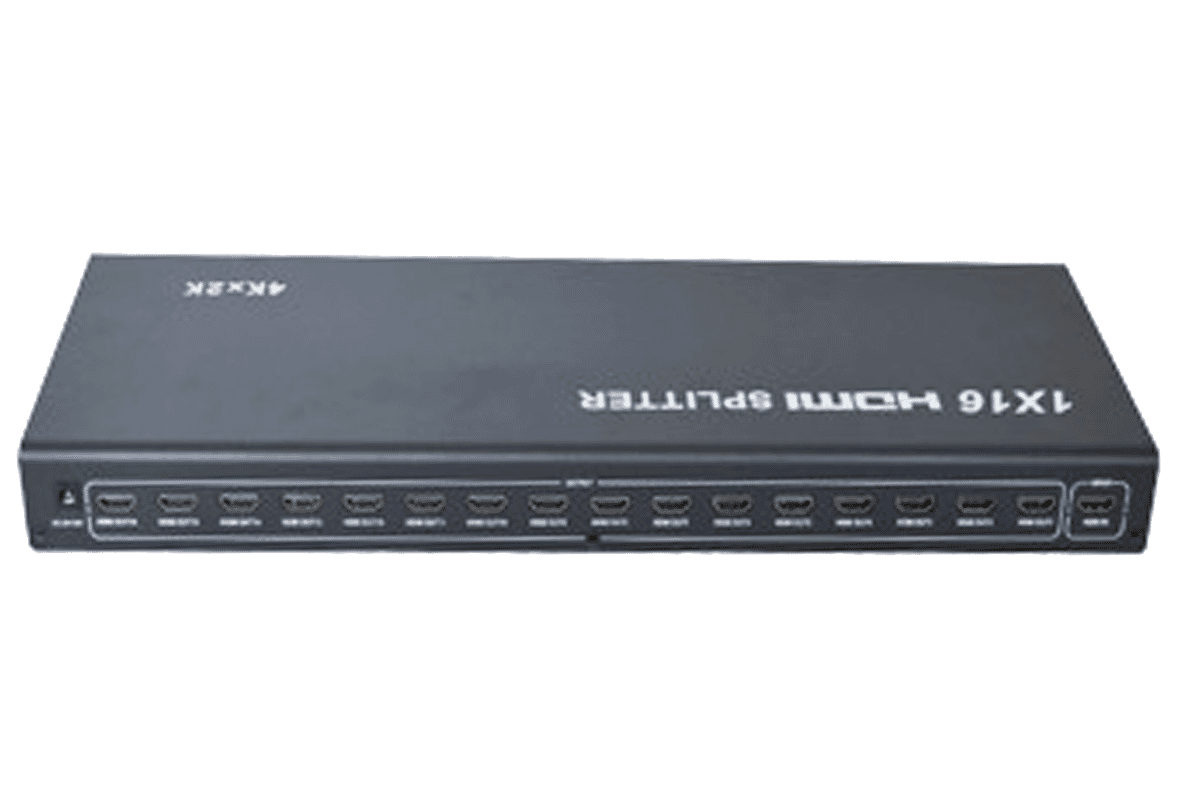

Haydon HAY-4KHDMI X16 HDMI 4K Splitter 1 x 16
Haydon
- 4K 3840x2160 @ 30Hz
- HDMI 1.4b 3.2Gbps
- Split HDMI up to 16 Devices
The Haydon HAY-4KHDMI X16 can split a single HDMI single to be accessed on up to 16 devices, including 4K & 3D video, up to 3840X2160/30Hz resolution. (Read more)
PRODUCT DETAILS
The Haydon HAY-4KHDMI 1x16 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal, with a resolution up to 3840X2160/30Hz.
Features:
- Support HDMI 1.4b
- Support 3D video format
- Resolution up to 3840x2160/30Hz
- Support 3.2Gbps data rate for TMDS clock up to 320MHz
- Support deep colour 8/10/12bit
- Support AWG26 HDMI standard cable: when the resolution is 1080p and below, input up to 15 metres ,output up to 25 metres. when the resolution is 4K, input up to 12 metres, output up to 15 metres.
- Support displaying single source, multi-output high definition signal source from DVD player A /V receiver or any equipment with HDMI output.
- Full Copper Cat 5 is used at all times to ensure continuity of HDMI Signal
| Specifications |
|
| HDMI version |
HDMI 1.4b |
| HDMI resolution |
Up to 3840*2160/30Hz |
| Support video colour format |
Deep colour 8/10/12bit |
| Support audio format |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth |
320MHz |
| Max transmission bandwidth |
3.2Gbps |
| Input cable distance |
(1080p resolution) <=15m (4K resolution)<=12m AWG26 HDMI standard cable |
| Output cable distance |
(1080p resolution) <=25m (4K resolution)<=15m AWG26 HDMI standard cable |
| HDMI input |
1 |
| HDMI output |
16 |
| Max working current |
2.15A |
| Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A |
| Operating Temperature range |
(-15 to +55℃) |
| Operating Humidity range |
5 to 90%RH (No Condensation) |
| Dimension (L x W x H) |
460x150x40 (mm) |
| Weight |
1680g |
| Pack contents | 1. HDMI splitter 1X16 2. 12V DC Power Supply 3. User Manual |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Haydon HAY-4KHDMI X16 Datasheet |
| Links* |
|---|
| Haydon website |
| Haydon support site |
