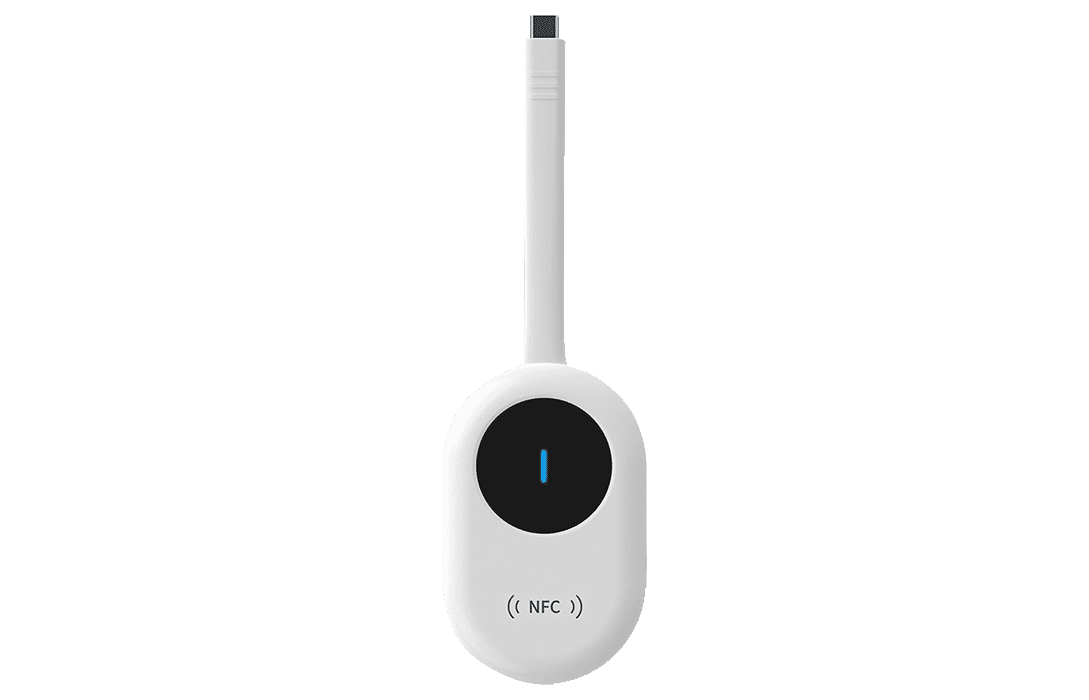

Hikvision DS-D5SC3B Wireless Dongle
Hikvision
- No Cable or Network
- Multi-Screen Sharing
- 3 Year Guarantee
The Hikvision DS-D5SC3B is a 4K wireless screen sharing dongle which allows user to broadcast audio and video to other devices such as display screens (Read more)
PRODUCT DETAILS
The Hikvision DS-D5SC3B is a 4K wireless screen sharing dongle which allows user to broadcast their audio and video to other devices. The dongle supports Windows/Mac OS and the Type C interface allows for quick and easy, plug and play operation.
Available in black or white.
Features:
- Support Windows/Mac OS
- Type-C interface plug-and-play
- Support Wi-Fi 2.4G/5G dual frequency
- Support up to 4K resolution
- Support reverse control by Windows/Mac
- Add NFC module to support NFC screen mirroring with Android phones
- Support indirectly charge for laptops
- Support quick screen mirroring on Hikvision Interactive Flat Panel
| Product Model | |
| Product Model | DS-D5SC3B-B |
| Display | |
| Resolution | 1080P/4K |
| Built-in System | |
| Memory | 512 MB |
| Built-in Storage | 4 GB |
| net card | Built in Gigabit NIC, supporting 2.4G/5G. |
| Interface | |
| Power Interface | Type-C, support CC communication and automatically switch charging direction, achieving 60W fast charging for laptops by adapter and 5V/500mA charging for mobile phones from laptops. |
| Power | |
| Power Consumption | 2.8 W |
| Rated Power | 5 V/900 mA |
| General | |
| Product dimensions | 189 × 58 × 17 mm |
| Package Dimensions (W × H × D) | 235 × 90 × 30 mm |
| Net Weight | 90 g |
| Gross Weight | 210 g |
| Packing List | Host × 1, Manual × 1, USB Type-A/Type-C adapter × 1 |
| Frame Rate | 30 fps |
| Transmission Delay | ≤ 350 ms |
| Wireless Transmission Protocol | IEEE 802.11 a/g/n/ac |
| Encryption | AES |
| NFC | ISO/IEC 14443-A protocol, 13.56 MHz, 106 Kbps |
| Audio Parameters | 48000Hz sampling rate, 16 bit depth, ACC encoding, dual channel |
| Video Parameters | 10 bit colour depth, H.264 encoding format |
| USB Protocol | Support USB 2.0 |
| Working Environment | |
| Working Temperature | 0℃~40℃ |
| Working Humidity | 10%~95% RH |
