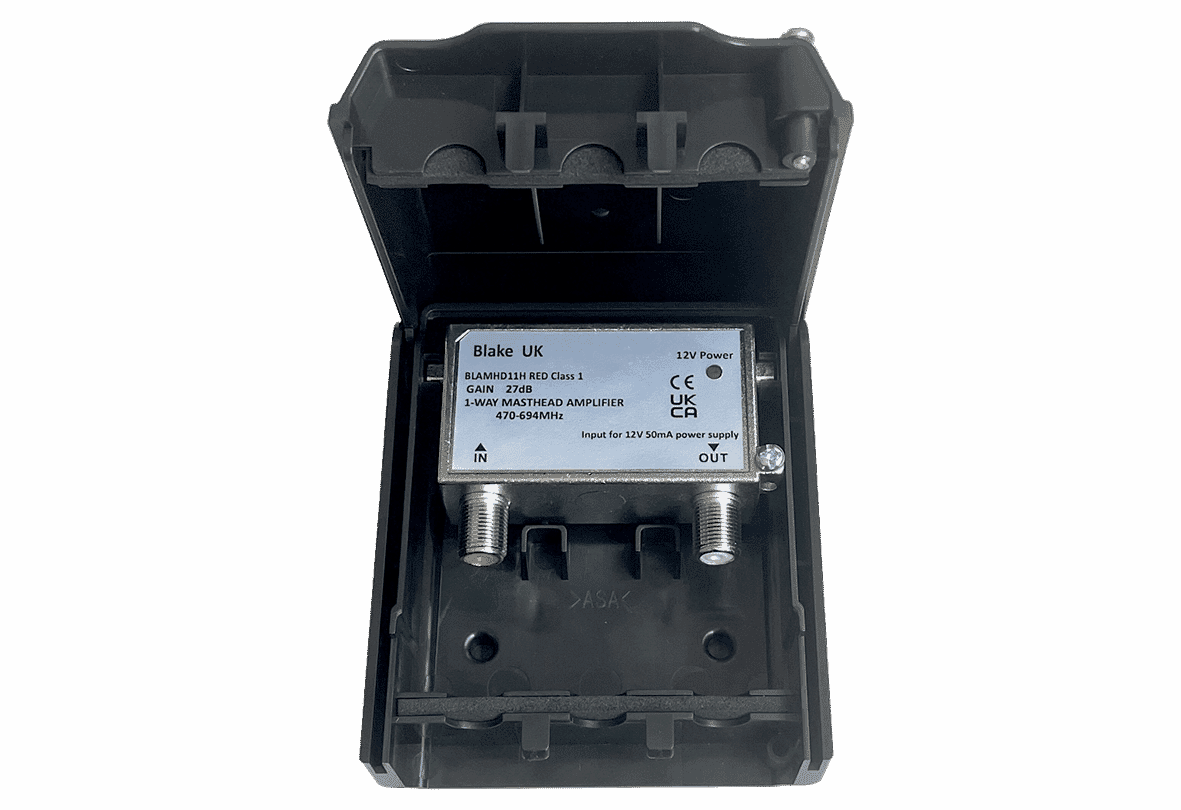

1 Way TV Aerial High Gain 27dB UHF Masthead Amplifier (RED Class-1)

The Blake BLAMHD11H is a 1-Way Variable Fixed Gain 27dB Masthead Amplifier which offers exceptional performance, incorporating advanced 5G/4G LTE filtering and amplification for TV frequencies within the 21-48 band (470-694MHz).

With its fixed variable 27dB gain and low noise figures (<2.5dB typical), it ensures optimal signal strength and clarity. The amplifier features F-type connectors on both inputs and outputs for easy connectivity.

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

The amplifier's thoughtfully engineered design allows for convenient access. The case opens to a full 90 degrees, providing easy access to the F connectors, while the shielded amplifier casing swings out to 45 degrees. The casing includes an LED indicator to confirm power reception.

With a robust and water-resistant construction, the amplifier features seal-protected cable entry points to prevent moisture and insects from compromising its performance. The case securely closes with a satisfying "solid click" and includes an optional security screw for added protection.

Designed for linearity, the amplifier effectively handles strong local signals without compromising performance.

Features:

• 90° Wide Opening Door for easy access.
• Optional Securing Screw for added stability.
• Heavy-Duty UV Stabilized Cable Tie for secure installation.
• Dual LED Indicators for advanced short circuit protection.
• Foam Seal Cable Entry Glands to safeguard against external elements.
• Power LED on Amplifier for visual confirmation of power status.
• 45° Swivel and Click Amp for flexible positioning.
• Robust Wall Mountable Lugs for secure installation.
• Available in 2, 4, and 8 outputs for diverse setup requirements.
• Low Noise Figures <2.2dB for superior signal quality.
• F-Type Connectors for reliable connections.
• Equipotential Bonding Point/Earthing Tag for safety compliance.
