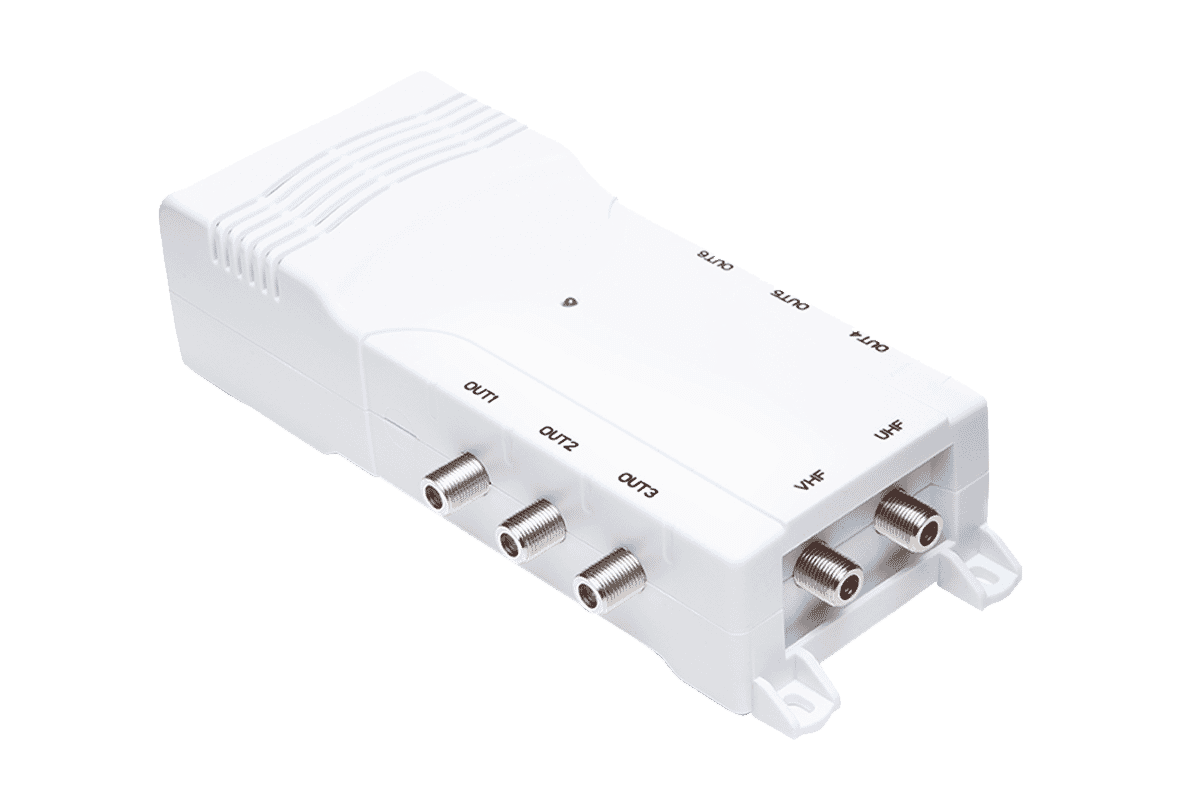

Antiference DA260/48 6 Way 5G Ready Powered Distribution Amplifier (Band 21-48)
Antiference
- 2, 4, 6 & 8 Way
- UHF & VHF inputs
- 2 year guarantee
Antiference 75 Series Amplifiers are designed to distribute VHF/UHF, digital & analogue radio & TV signals in home appliances with no loss of signal (Read more)
PRODUCT DETAILS
Antiference 75 Series distribution amplifiers are designed for distributing VHF/UHF, digital and analogue, radio and TV signals in domestic applications. These models are designed to overcome the losses due to splitting of the signal and extra cable lengths needed to distribute signal to each room and have the ability to control a Digi-box with 9V (An ME200 Infra-Red eye is required at all outlets to enable the control facility). All models are fully screened for high immunity to interference, impulse noise and are fitted with F-connectors for reliable and professional installation.
2, 4, 6 & 8 way models available.
Features:
- Mains powered comes complete with fitted mains plug BS1363
- Amplifiers are available in 2, 4,6,8,12 & 16 way versions
- Powers up remote-eyes which allows remote control of the SKY™ Digi-boxes in any location
- F-type connectors ensuring a secure dc connection
- Dual Inputs to distribute FM, DAB and UHF
- Energy efficient power supply unit
- RED Class 0 (CH21-60) and RED Class 1 (CH21-48) models available
| Specification | ||||
|---|---|---|---|---|
| Product | DA220/48 |
DA240/48 |
DA260/48 |
DA280/48 |
| Inputs | 2 | 2 | 2 | 2 |
| Outputs | 2 | 4 | 6 | 8 |
| Frequency Range | 45-230/470-862MHz |
45-230/470-862MHz |
45-230/470-862MHz |
45-230/470-862MHz |
| Gain | 10dB+2 |
10dB+2 |
10dB+2 |
10dB+2 |
| Noise Max | >3dB |
>3dB |
>3dB |
>3dB |
| Max Output | 78dB |
78dB |
78dB |
78dB |
| Isolation Between Ports | >20dB |
>20dB |
>20dB |
>20dB |
| Return Patch Frequency | 5-30MHz |
5-30MHz |
5-30MHz |
5-30MHz |
| Impedance |
75ohm |
75ohm |
75ohm |
75ohm |
| Connections | F-type |
F-type |
F-type |
F-type |
| Mains Power | 230V AC ± 10% 50Hz
Fitted Mains Plug BS1363 3A rating |
|||
| Videos |
|---|
| No videos available |
| Files |
|---|
| No files available |
| Links* |
|---|
| No links available |
