Blake 1-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection
Blake UK
- 12V 100mA Power Supply
- Fitted with F-connectors
- Short Circuit Protection

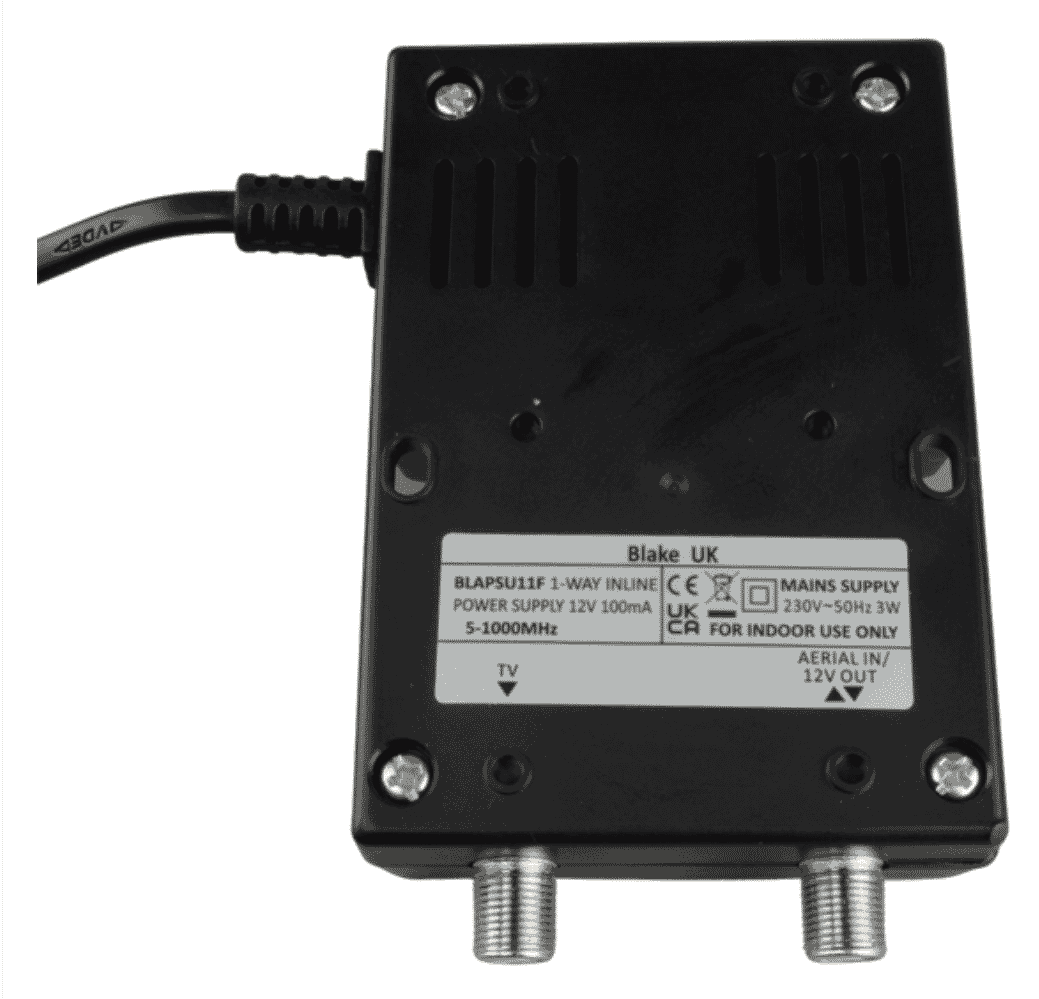

The Blake BLAPSU11F is an easily mountable PSU that supplies 12V DC power to drive masthead amplifiers directly via a coax cable. (Read more)
PRODUCT DETAILS
1-Way F-Type In-line 12V 100mA Power Supply With Built-In 5G & 4G Filtering
Features:
- High-quality 12V F-type in-line power unit for use with Blake UK masthead amplifiers and similar applications.
- Regulated DC output 12V, 100mA.
- Frequency: 5-694MHz.
- 1 input, 1 Output
- Linear power supply, low noise
- F-type connectors for a secure connection.
- 230V~50Hz 3W.
- For indoor use only.
Technical Details:
- Product BLAPSU11FBLAPSU12F
Number of Outputs 1 Signal Frequency Range 5-694MHz Signal Insertion Loss <3dB (Typical) Isolation Between Outputs - Output Voltage +12V Regulated DC(±0.6V) Output Protection Withstands Indefinite Output Short-Circuit Without Damage Power and Status Indicator Green: Normal, Red: Short Input Filter Characteristics LTE (5G/4G) > 30dB Rejection Filter Specifications BS EN 50083 (Standard 3 Filter) Mains Power Requirement 230V 50Hz at 3A (3VA) Operating Temperature Range -20°C to +50°C Standards Compliance Safety: EN IEC62368 EMS: EN 50083
Technical Specification
Width 50mm
Depth 146mm
Height 109mm
Weight 0.37kg
