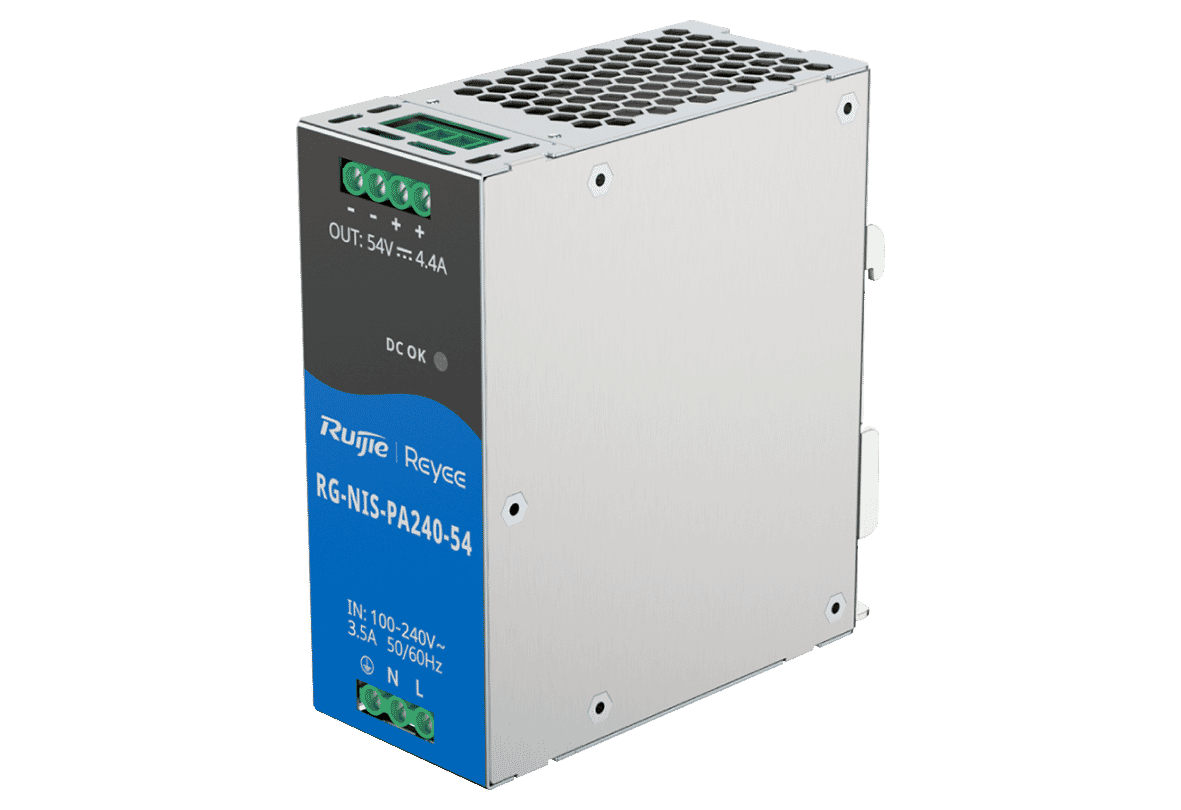

Ruijie RG-NIS-PA240-54 Universal 90-264VAC Input Voltage Power Supply
Ruijie
- Din Rail Mount
- Universal AC Input
- 3 year guarantee
The Ruijie RG-NIS-PA240-54 is an industrial-grade DIN rail power supply which delivers 54V DC output for powering PoE-enabled networking equipment. (Read more)
PRODUCT DETAILS
The Ruijie RG-NIS-PA240-54 is an industrial-grade DIN rail power supply designed to deliver stable 54V DC output for powering PoE-enabled networking equipment, including Ruijie industrial switches and other 802.3af/at-compliant devices.
With a universal AC input voltage range (90–264V AC) and a 240W output capacity, this power supply is ideal for demanding industrial environments, offering reliable performance in extended temperature ranges and electrically noisy conditions.
Features:
- Wide input voltage range: 90–264V AC (universal input)
- Stable 54V DC output – ideal for PoE+ switch power requirements
- 240W total power output
- Industrial-grade design for durability in harsh environments
- Overload, short circuit, and overvoltage protection
- Fanless cooling for silent, low-maintenance operation
- DIN rail mounting for secure, space-saving installation in control cabinets
- Compatible with Ruijie RG-NIS2100 industrial switch series
| Specification |
|
| Dimensions (W x D x H) |
52 x 110 x 125mm |
| Net Weight |
0.75kg |
| Mean Time Between Failure (MTBF) |
>150K |
| Safety Compliance |
EN 62638-1 |
| Warranty |
3 years |
| Power Supply |
Nameplate Input Voltage Range: 100-240 V
AC Input Voltage Range: 90-264 V AC Input Frequency Range: 50/60 Hz Input Current: 3.5 A Output Voltage Range: 52.38-55.62 V DC Output Current: 4.4 A |
| Power Consumption |
≤240W |
| Power Supply Surge Protection |
Common mode: 4kV Differential mode: 2kV |
| Number of Fans |
Fanless |
| Fan Speed Control |
Fanless |
| Acoustic Noise Level |
Silent |
| Max. Heat Dissipation |
820.8 BTU/hr(220V/50Hz) |
| Operating Temperature |
-40 to 70℃（derating: -40 to -30℃，115VAC :4%/℃ 45 to 70℃，115VAC:2%/℃ 50 to 70℃，230VAC:2%/℃） |
| Storage Temperature |
-40 to 85℃ |
| Operating Humidity |
5% to 95% RH(non-condensing) |
| Storage Humidity |
5% to 95% RH(non-condensing) |
| Electrostatic Discharge (ESD) Protection |
Air discharge: 8kV Contact discharge: 6kV |
| Casing |
Metal |
| Mounting |
DIN-rail Mounting |
| LEDs |
System: DC OK(Green) |
| Operating Altitude (m) |
-500~5000m |
| Certification |
CE |
| EMC |
EN 55032 IEC61000-4-2 IEC61000-4-4 IEC61000-4-5 IEC61000-4-6 EN 61000-4-11 IEC6100-3-2 IEC6100-3-3 |
| Warranty Card |
1 |
| Gross Weight |
0.87kg (packages included) |
| Package Dimensions (W x D x H) |
539 x 265 x 180mm |
| Videos |
|---|
Ruijie RG-NIS-PA240-54 Universal 90-264VAC Input Voltage Power Supply
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-NIS-PA240-54 Datasheet |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
