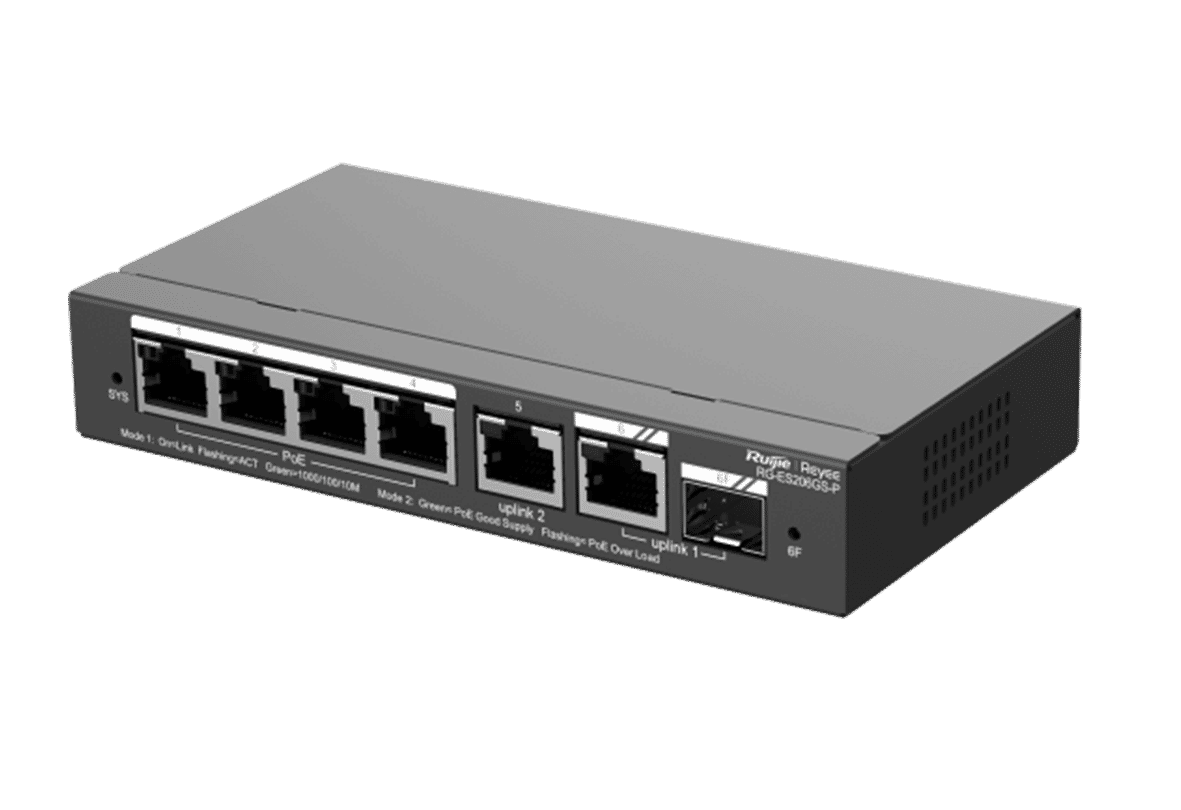

Ruijie RG-ES206GS-P 6-Port Gigabit Smart POE Switch
Ruijie
- 4 PoE+ RJ45 Ports
- Gigabit SFP Port
- 3 year guarantee
The Ruijie RG-ES206GS-P is a 6 port Gigabit cloud Managed 54W Switch with 4 PoE+ RJ45 ports, 1 Gigabit RJ45 uplink port and 1 Gigabit SFP combo port. (Read more)
PRODUCT DETAILS
The Ruijie RG-ES209GC-P is a 6 port Gigabit cloud managed switch with 4 PoE+ ports, 1 Gigabit RJ45 uplink port, 1 Gigabit SFP combo port, and a power budget of 54W. It features automatic loop prevention to ensure service continuality and IP Camera Recognition making it ideal for small scale CCTV installations.
Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity.
Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.
Features:
- 6-Port Gigabit Managed Switch with 4 PoE+ Ports, 1 SFP Combo Port
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
| Ports |
|
| Total Number of RJ45 Ports |
6 |
| Total Number of Optical Ports |
1 |
| Number of Combo Ports |
1 |
| Number of 1GE SFP ports |
1 |
| Number of 1GE RJ45 ports |
6 |
| POE |
|
| Number of PoE in ports |
4 |
| Number of PoE/PoE+ out ports |
4 |
| PoE budget |
54W |
| PoE power pins |
1 2+, 3 6- |
| System
Specifications |
|
| Recommended camera limit |
200W H265:40 400W H265:20 |
| Forwarding rate |
8.9Mpps |
| Switching capacity |
12Gbps |
| Maximum number of VLANs |
16 |
| Maximum number of MAC address entries |
2K |
| Power input |
AC input Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Rated current: 1.5A Adapter output Rated voltage range: 54V DC Rated current range: 1.11A |
| Maximum power consumption |
Less than 6W with no PoE load Less than 60W with PoE full load |
| Power |
Input power supply |
| FAN |
|
| Fan |
Fanless |
| Fan speed adjustment |
N/A |
| Heat dissipation |
Less than 20.52 BTU/hr(220V/50 Hz) with no PoE load Less than 205.2 BTU/hr(220V/50 Hz) with PoE full load |
| Acoustic noise |
Fanless |
| Other | |
| Reset button |
Yes |
| EMC |
EN 55032:2015+AC :2016 EN 61000-3-2:2014 EN 61000-3- 3:2013 EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) |
| Safety Compliance |
EN 62638-1 |
| Certification |
CE;FCC |
| Mounting |
Wall-mount and Desk-type |
| Casing |
Metal |
| Hot swapping of cables |
Supported by all ports |
| Mean Time Between Failure (MTBF) |
>200K |
| Warranty |
3 |
| EEE |
Yes |
| Environment and
Reliability |
|
| Operating temperature |
0 to 40°C |
| Storage temperature |
-40 to 70ºC |
| Operating humidity |
10% to 90% RH (non- condensing) |
| Storage humidity |
5% to 95% RH (non-condensing) |
| Operating altitude |
-500 to 5000M |
| ESD protection |
Air Discharge: 8kV Contact Discharge: 6kV |
| Surge protection |
Common Mode: 4kV Differential mode: 2kV |
| Package Contents |
|
| Dimensions (W x D x H) |
148mm x 78mm x 26mm |
| Weight |
0.308kg |
| Shipping weight |
1.07kg (package s included) |
| Rack-mount bracket |
N/A |
| Screw |
N/A |
| User Manual |
1 |
| Rubber pad |
N/A |
| Input power supply |
Power adapter |
| Warranty Card |
1 |
| L2 |
|
| Jumbo Frame |
9216 Bytes |
| port |
|
| Port flow control |
Yes |
| PoE watchdog |
Yes |
| Port isolation |
Yes |
| EEE |
Yes |
| Ultra-long-haul transmission |
Yes |
| Cable Test |
Yes |
| VLAN |
|
| IEEE802.1Q VLAN |
Yes |
| Port-based VLAN |
Yes |
| SPAN |
|
| Port mirroring |
Yes |
| Mirroring |
Yes |
| Mac Address |
|
| Static MAC address |
Yes |
| Storm
Suppression |
|
| Broadcast storm control |
Yes |
| Multicast storm control |
Yes |
| Unknown unicast storm control |
Yes |
| L3 | |
| DNS client |
Yes |
| DHCP snooping |
Yes |
| DHCP client |
Yes |
| High Features |
|
| Interface-based rate limiting (ingress/egress) |
Yes |
| Online Upgrade |
Yes |
| Self-Organizing Network |
Yes |
| System log |
Yes |
| Camera detection |
Yes |
| Loop alarm |
Yes |
| PoE power overload |
Yes |
| Management
Features |
|
| Web Management |
Yes |
| Ruijie Cloud |
Yes |
| Ruijie Reyee App |
Yes |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-ES206GS-P Datasheet |
| Ruijie RG-ES206GS-P User Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
