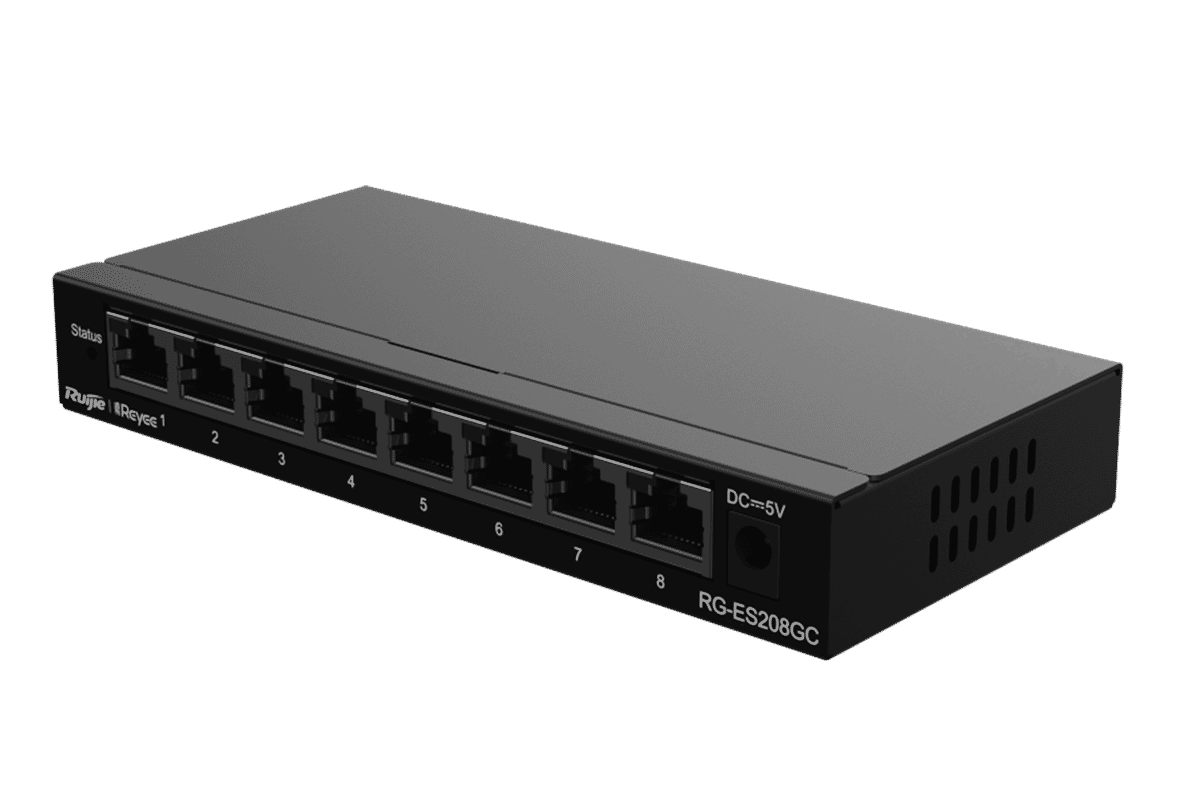

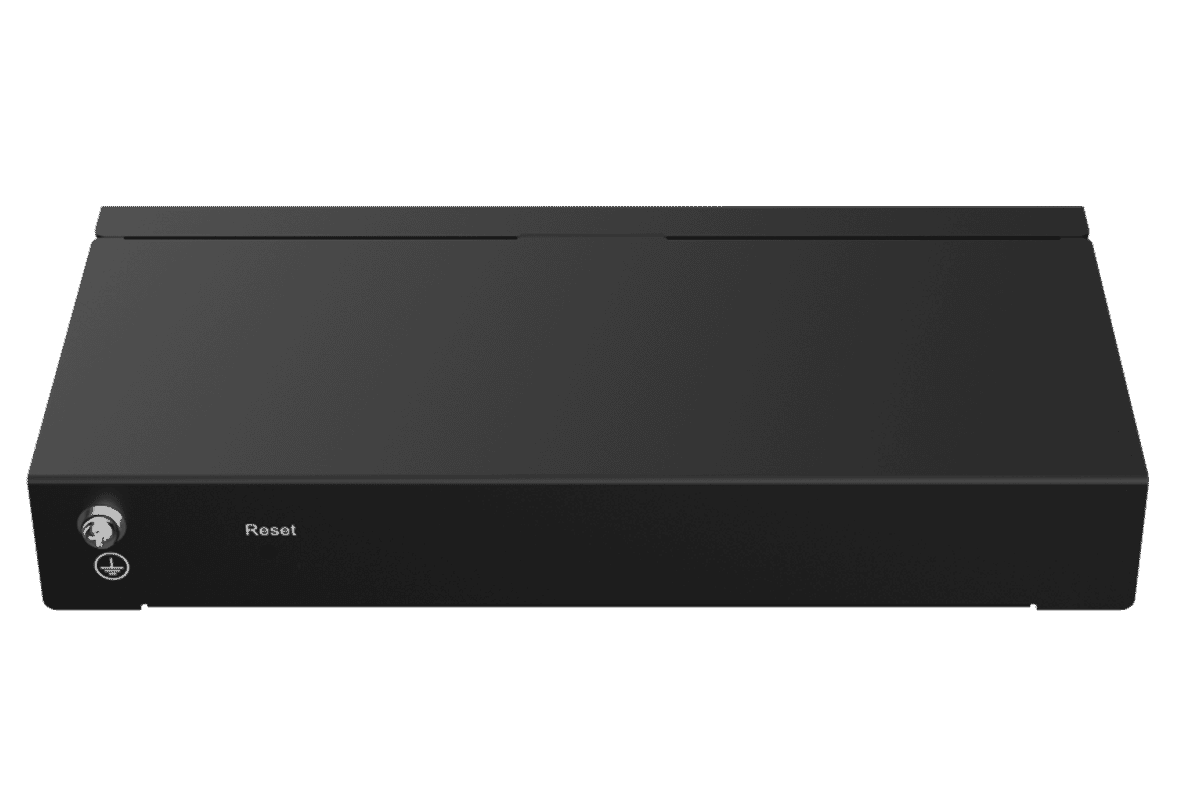

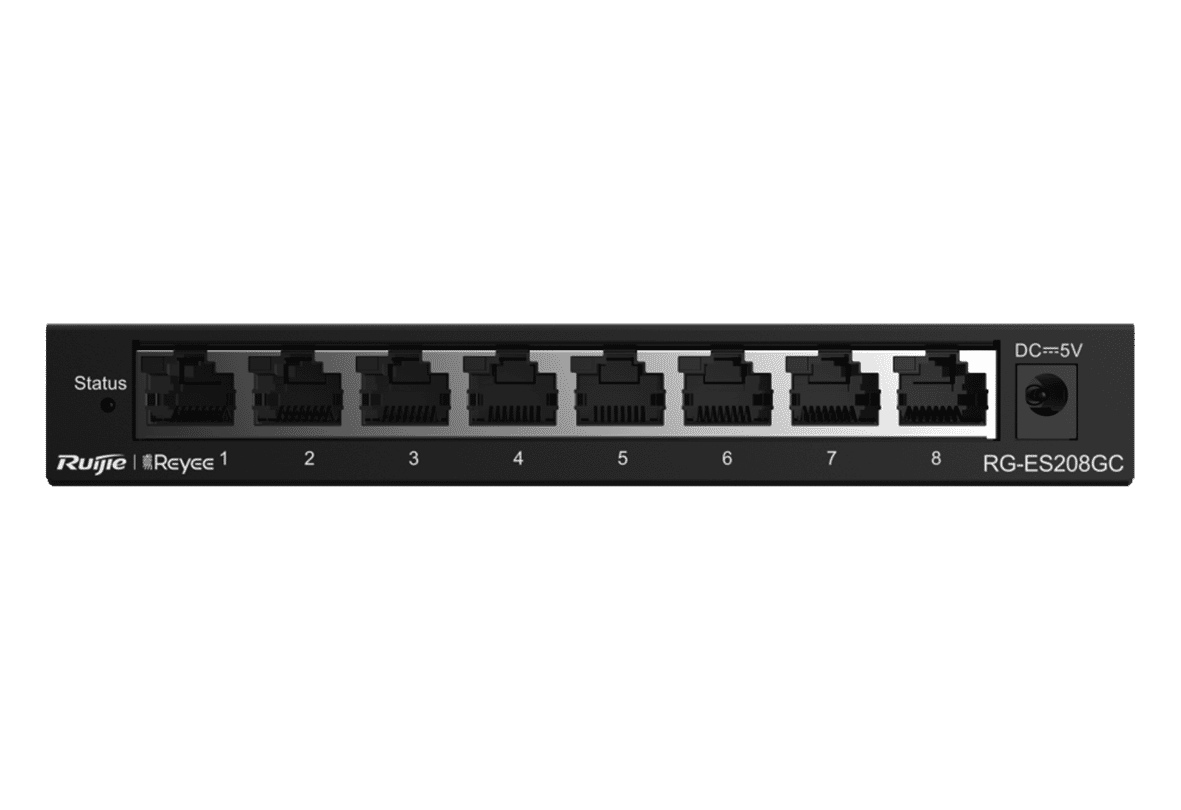

Ruijie RG-ES208GC 8 Port Gigabit RJ45 Ports,Smart Cloud Managed Non-PoE Switch
Ruijie
- 8 x Gigabit RJ45 Ports
- Smart Cloud Managed
- 3 year guarantee
Ruijie RG-ES208GC is an 8 port, Gigabit, smart cloud managed desktop switch, designed to provide network connectivity for small to medium applications (Read more)
PRODUCT DETAILS
The Ruijie RG-ES208GC is an 8 port, Gigabit, smart cloud managed desktop switch, designed to provide reliable network connectivity for small to medium-sized businesses or home office environments. This switch is part of Ruijie’s RG-ES series, offering excellent performance with an easy-to-use interface and high-quality build, ensuring seamless network performance and scalability.
Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.
Features:
- 8-Port gigabit cloud managed non-PoE switch
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
| Port |
|
| Total Number of RJ45 Ports |
8 |
| Number of 1GE RJ45 ports |
8 |
| Power input |
|
| Number of PoE in ports |
AC input Rated voltage range: 100V to
240V Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Rated current: 0.3A Adapter output Rated voltage range: 5V DC Rated current range: 1A |
| Maximum power consumption |
≤5W |
| Power |
|
| Input power supply |
Power adapter |
| FAN |
|
| FAN |
Fanless |
| Heat dissipation |
17.1 BTU/hr(220V/5 0Hz) |
| Acoustic noise |
Fanless |
| Button |
|
| Reset button |
Yes |
| EMC |
|
| EMC |
EN 55032:2015+AC :2016 EN 61000-3- 2:2014 EN 61000-3- 3:2013 EN
55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) |
| Safety
Compliance |
|
| Safety Compliance |
EN 62638-1 |
| Certification |
|
| Certification |
CE |
| Mounting |
|
| Mounting |
Wall-mount and Desk-type |
| Casing |
|
| Casing |
Metal |
| Cable Hot-
Swappable |
|
| Hot swapping of cables |
Supported by all ports |
| Mean Time Between Failure
(MTBF) |
|
| MTBF |
>200K |
| Warranty |
|
| Warranty Card |
3 |
| EEE |
|
| EEE |
Yes |
| Environment and
Reliability |
|
| Operating temperature |
0 to 40°C |
| Storage temperature |
-40 to 70ºC |
| Operating humidity |
10% to 90% RH (non-condensing) |
| Storage humidity |
5% to 95% RH (non-condensing) |
| Operating altitude |
-500 to 5000M |
| ESD protection |
Air Discharge: 4kV Contact Discharge: 4kV |
| Surge protection |
Common Mode 4kV Common Mode: 2kV Differential mode: 1kV |
| Package Contents |
|
| Dimensions (W x D x H) |
160mm x 75mm x 24mm |
| Weight |
0.49kg |
| Shipping weight |
0.651kg (packages included) |
| Rack-mount bracket |
No |
| Screw |
No |
| User Manual |
1 |
| Rubber pad |
No |
| Input power supply |
Power adapter |
| Warranty Card |
1 |
| L2 | |
| Jumbo Frame |
9216 Bytes |
| port |
Yes |
| PoE watchdog |
N/A |
| Port isolation |
Yes |
| EEE |
Yes |
| Ultra-long-haul transmission |
N/A |
| Cable Test |
Yes |
| VLAN |
|
| IEEE802.1Q VLAN |
Yes |
| Port-based VLAN |
Yes |
| SPAN |
|
| Port mirroring |
Yes |
| Mirroring |
Yes |
| Mac Address |
|
| Static MAC address |
Yes |
| Storm
Suppression |
|
| Broadcast storm control |
Yes |
| Multicast storm control |
Yes |
| Unknown unicast storm control |
Yes |
| L3 | |
| DNS Client |
Yes |
| DHCP |
|
| DHCP snooping |
Yes |
| DHCP client |
Yes |
| High Features |
|
| Interface-based rate limiting (ingress/egress) |
Yes |
| Online Upgrade |
|
| Online Upgrade |
Yes |
| Self-Organizing
Network |
|
| SON | Yes |
| Syslog |
|
| System log |
Yes |
| ALARM |
|
| Camera detection |
Yes |
| Loop alarm |
Yes |
| PoE power overload |
Yes |
| Web Management |
|
| eWeb |
Yes |
| MACC |
|
| Ruijie Cloud |
Yes |
| APP |
|
| Ruijie Reyee App |
Yes |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-ES208GC Datasheet |
| Ruijie RG-ES208GC User Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
