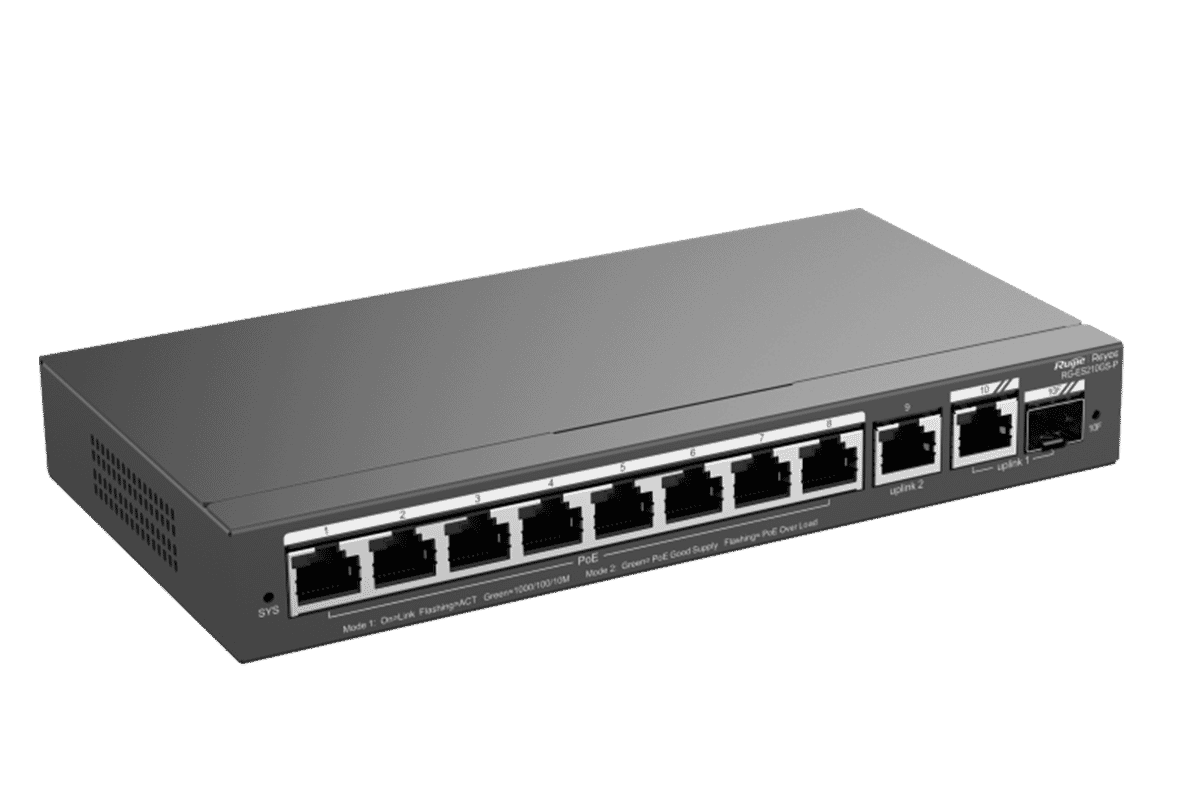

Ruijie RG-ES210GS-P 10-Port Gigabit Smart POE Switch
Ruijie
- 10 x Gigabit RJ45 Ports
- Smart Cloud Managed
- 3 year guarantee
The Ruijie RG-ES210GS-P is a high-performance 10-port Gigabit smart PoE switch designed for small to medium CCTV, access and networking applications. (Read more)
PRODUCT DETAILS
The Ruijie RG-ES210GS-P is a high-performance 10-port Gigabit smart PoE switch designed for small to medium CCTV, access control, and networking applications. It provides reliable power and data transmission over a single cable, reducing installation time and simplifying network deployment.
This switch offers 8 PoE/PoE+ ports and 2 uplink ports (1 Gigabit RJ45 + 1 SFP combo), delivering a total PoE power budget of up to 120 W. With support for IEEE 802.3af/at standards, it can power a wide range of PoE-enabled devices such as IP cameras, access points, and VoIP phones.
The RG-ES210GS-P is part of Ruijie’s Reyee range of smart switches and includes cloud management via the Ruijie Cloud platform, allowing installers to configure, monitor, and manage networks remotely.
Features:
- 10-Port gigabit cloud managed switch with 8 PoE+ ports, 1 Combo Port
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
| Product
Information |
|
| Warranty |
3 years |
| Port
Specifications |
|
| Total number of RJ45 ports |
10 |
| Total number of optical ports |
1 |
| Number of 1GE combo ports |
1 |
| Number of 1GE SFP ports |
1 |
| Number of 10/100/1000BASE-T ports |
10 |
| Reset button |
1 |
| DIP switch |
LED mode switch toggled to left (Mode 1):
The port LED status indicates the status of traffic transmission.
Solid green means that the port is link up, while blinking
green means that the port is transmitting and receiving data. LED mode switch toggled to right (Mode 2): The port LED status indicates the PoE status. Solid green means that the port is supplying power, while blinking green means that the port is in power overload state. |
| Power Supply and
Consumption |
|
| PoE Out standard |
PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports |
8 |
| Number of PoE/PoE+ Out ports |
8 |
| PoE budget |
120 W |
| PoE power pins |
1–2 (+), 3–6 (-) |
| Power input |
DC adapter: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 2.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 2.4 A |
| Maximum power consumption |
10 W (with no PoE load) 130 W (with PoE full load) |
| Power supply |
DC power adapter |
| System
Specifications |
|
| Flash memory |
4 MB |
| Forwarding rate |
14.8 Mpps |
| Switching capacity |
20 Gbps(bit/s) |
| Dimensions and
Weight |
|
| Casing |
Metal |
| Product dimensions (W x D x H) |
202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10
in.) |
| Weight |
0.55 kg (1.21 lbs) (without packaging materials) 1.65 kg (3.64 lbs) (with packaging materials) |
| Shipping weight |
1.65 kg (3.64 lbs) |
| Environment and
Reliability |
|
| Fan |
Fanless design |
| Cooling |
Natural cooling |
| Mounting options |
Wall/Desk |
| Hot swapping of cables |
Hot swapping supported by the service port and power
connector |
| MTBF |
200,000 hours |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
| Operating humidity |
10% RH to 90% RH (non-condensing) |
| Storage humidity |
5% RH to 95% RH (non-condensing) |
| Altitude |
–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection |
Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection |
Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode |
| Certification and
Regulatory Compliance |
|
| EMC |
EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance |
EN 62638-1 |
| Certification |
CE, FCC |
| Authentication |
|
| RADIUS |
No |
| 802.1X authentication |
No |
| Basic
Configurations |
|
| PoE watchdog |
Yes |
| Online upgrade |
Yes |
| Ethernet
Switching |
|
| Maximum number of VLANs |
16 |
| Maximum number of MAC address entries |
4000 |
| Interface flow control |
Yes |
| IEEE 802.1Q VLAN |
Yes |
| VLAN configuration supported on LAN ports |
Yes |
| LLDP |
No |
| LLDP-MED |
No |
| Static MAC address |
Yes |
| Static aggregation |
No |
| LACP |
No |
| Inbound or outbound rate limiting based on interface
traffic |
Yes |
| Gateway Features |
|
| 802.1p priority-based traffic classification |
No |
| DSCP priority-based traffic classification |
No |
| Interface |
|
| Jumbo frame length (MTU) |
9216 bytes |
| EEE |
Yes |
| Cable test |
Yes |
| IP Routing |
|
| IPv4 static route |
No |
| IPv6 static route |
No |
| OSPFv2 |
No |
| OSPFv3 |
No |
| IP Service |
|
| ARP |
No |
| IPv4 ping |
No |
| IPv4 traceroute |
No |
| ICMPv6 |
No |
| IPv6 ping |
No |
| IPv6 traceroute |
No |
| DNS client |
Yes |
| DHCP client |
Yes |
| Multicast |
|
| IGMPv1 snooping |
No |
| IGMPv2 snooping |
No |
| Basic IGMPv3 snooping |
No |
| Full IGMPv3 snooping |
No |
| IGMP filtering |
No |
| IGMPv1, v2, and v3 |
No |
| Network Management and
Monitoring |
|
| Mirroring |
Yes |
| HTTP login |
Yes |
| HTTPS login |
No |
| SON |
Yes |
| Syslog |
No |
| Camera detection |
Yes |
| eWeb management |
Yes |
| Ruijie Cloud management |
Yes |
| Ruijie Reyee App management |
Yes |
| SNMPv1, v2c, and v3 |
No |
| Security |
|
| Port isolation |
Yes |
| Broadcast storm control |
Yes |
| Multicast storm control |
Yes |
| Unknown unicast storm control |
Yes |
| DHCP snooping |
Yes |
| Standard ACL |
No |
| Extended MAC ACL |
No |
| Extended IP ACL |
No |
| IPv6 ACL |
No |
| ARP anti-spoofing |
No |
| CPU Protection Policy |
Yes |
| System Performance
Capacity |
|
| Recommended camera limit |
200W H265: 40 400W H265: 20 |
