Ruijie RG-NIS2100-4GT2SFP-HP 6-Port Cloud Managed Industrial Switch

Ruijie RG-NIS2100-4GT2SFP-HP 6-Port Cloud Managed Industrial Switch

⭐⭐⭐⭐⭐ 0 reviews | 0 Questions

4 Gigabit PoE Ports
2 × SFP Uplink Ports
3 year guarantee

The Ruijie RG-NIS2100-4GT2SFP-HP is a rugged, industrial-grade switch with 4 × Gigabit PoE ports and 2 × SFP uplink ports, making it ideal for CCTV (Read more)

£195.43
£162.86 Ex VAT

In stock

Next day delivery available. Order before 16:00 for delivery from Wednesday 24th June

Product Code	RUI0100
Model	RG-NIS2100-4GT2SFP-HP

Secure transaction

More Information

RELATED PRODUCTS

PRODUCT DETAILS

The Ruijie RG-NIS2100-4GT2SFP-HP is a rugged, high-performance industrial-grade switch designed to deliver reliable Gigabit networking in harsh environments. Featuring 4 × Gigabit PoE ports and 2 × SFP uplink ports, this cloud-managed Layer 2 switch offers powerful performance, intelligent PoE capabilities, and flexible network deployment for industrial automation, surveillance, and edge networking scenarios.

Built to withstand extreme temperatures, electrical interference, and vibration, the RG-NIS2100 is ideal for use in factories, warehouses, transportation systems, and outdoor installations.

The RG-NIS2100 series Layer 2 industrial switches boast a unique industrial design. With Ruijie's unique self-organizing network (SON) technology and Ruijie Cloud, they have an industrial-grade operating temperature range, professional capability in outdoor lightning protection, and enterprise-class dustproof rating. They provide user-friendly features for ease of use and O&M and can withstand various harsh and complex environments.

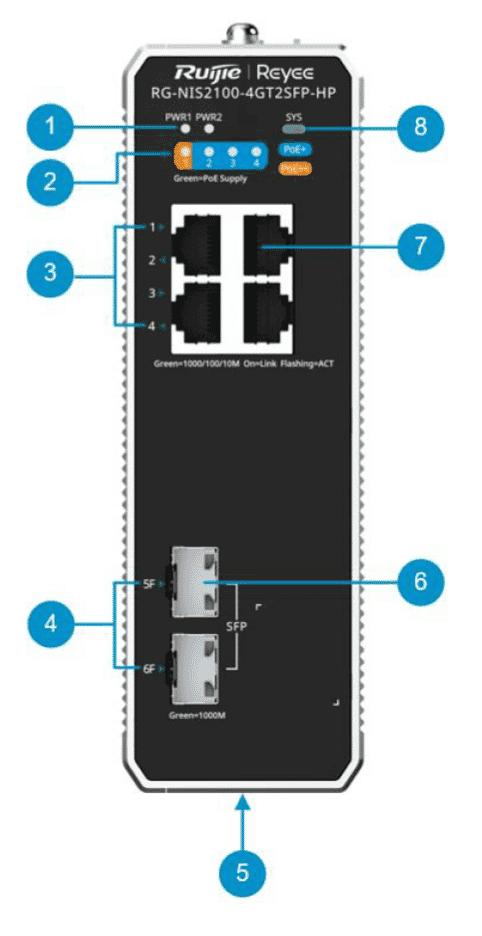

Interface - Front Panel

No.	Item	Description
1	PWR LED	Off: The power supply is disabled. On: The power supply is enabled.
2	PoE status LED	Off: Power over Ethernet (PoE) is disabled. Solid green: PoE is enabled.
3	Electrical port status LED	Off: The port is not connected. Solid green: The port operates at 1000/100/10 Mbps and no data is transmitted. Blinking green: The port operates at 1000/100/10 Mbps and is transmitting data. (Note: Port 1 is IEEE 802.3bt-compliant.)
4	Optical port status LED	Off: The port is not connected. Solid green: The port operates at 1000 Mbps and no data is transmitted. Blinking green: The port operates at 1000 Mbps and is transmitting data.
5	Nameplate	Nameplate on the bottom of the device
6	1000BASE-X SFP ports	SFP port for SFP module expansion
7	10/100/1000BASE-T Ethernet port with auto- negotiation	RJ45 electrical port that connects to a CAT5e network cable
8	System status LED	Off: The switch is not powered on. Fast blinking green (8 to 10 Hz): The switch is starting up. Solid green: The switch is operating normally after startup. Slow blinking green (0.5 Hz): The switch is operating normally after startup but does not connect to Ruijie Cloud. Blinking green (2 Hz): The system is restoring factory settings or upgrading.

Interface - Top Panel

No.	Item	Description
1	PWR1 DC power connector	Connects to a DC power supply.
2	Alarm port	In normal cases, the contact of an alarm port is closed. When an alarm is triggered (by power failure of a power supply), the contact is opened.
3	PWR2 DC power connector	Connects to a DC power supply
4	DIP switch	ERPS: On: Ethernet Ring Protection Switching (ERPS) is enabled. Off: ERPS is disabled Isolation: On: Ports 1–8 cannot communicate with each other, but can communicate with ports 9 and 10. Ports 9 and 10 can communicate with each other. Off: Port isolation is disabled Extend(Port5–8): Sets the rate of ports 5–8 to 10 Mbps. Alarm: Generates an alarm when the power module is not detected. When the switch is turned off, the alarm function is disabled.
5	Reset button	Press and hold the button for shorter than two seconds to restart the system. Press and hold the button for longer than five seconds until the system status LED starts blinking to restore the factory setting and restart the device. If the button is pressed and held for two to five seconds, no operation is triggered.
6	Grounding screw	Connects to the ground.

Features:

4 × Gigabit RJ45 PoE+ ports (IEEE 802.3af/at compliant)
2 × 1G SFP ports for fibre uplink and long-distance networking
Industrial-grade design – operates in temperatures from -40°C to +75°C
Fanless, IP40-rated metal housing for silent, dust-resistant performance
Surge and ESD protection for enhanced reliability in unstable power environments
Supports up to 120W total PoE power budget
DIN rail or wall-mountable for flexible deployment
Cloud-managed via Ruijie Cloud – enabling remote monitoring, configuration, and firmware updates

YOU MIGHT ALSO NEED

SPECIFICATIONS

Port
Total Number of RJ45 Ports	4
Total Number of Optical Ports	2
Number of 1GE SFP ports	2
Number of 1GE RJ45 ports	4
PoE
Number of PoE in ports	4
Number of PoE/PoE+ out ports	4
Number of PoE/PoE+/PoE++ out ports	1
PoE budget	default：108W web reserved adjustable interface MAX:180W
PoE power pins	Port 1 :1 2- 3 6+ 4 5 + 7 8- Port 2-4:1 2+ 3 6-
System Specifications
Recommended camera limit	200W H265:70 400W H265:35
Forwarding rate	8.9Mpps
Switching capacity	12Gbps
Maximum number of VLANs	16
Maximum number of MAC address entries	8K
Power
Power input	DC input Rated voltage range: 46-57V DC Rated current range: 4.2A
Maximum power consumption	Less than 12W with no PoE load Less than 192W with PoE full load
Input power supply	DC power supply
FAN
Fan	Fanless
Heat dissipation	Less than 41.04 BTU/hr(220V/50Hz) with no PoE load Less than 656.64 BTU/hr(220V/50Hz) with PoE full load
Acoustic noise	Fanless
Button
DIP switch	ERPS mode: Enable ERPS ring network Isolation mode: Upper port and lower port isolation Extend mode: The rate of Ports 3 to 4 is reduced to 10 Mbps, but the maximum transmission distance can be up to 200 meters (Cate5e cables required) Alarm mode: Turn on power in-position detection alarm
EMC
EMC	IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 IEC/EN 61000-4-8
Safety compliance
Safety compliance	EN 62638-1
Certification
Certification	CE
Mounting
Mounting	DIN-rail Mounting Wall-mount
Casing
Casing	Metal
Cable Hot-Swappable
Cable Hot-Swappable	Supported by all ports
Mean Time Between Failure (MTBF)
Mean Time Between Failure (MTBF)	>200K
Warranty
Warranty	5
EEE
EEE	Yes
Environment and Reliability
Operating temperature	-40-75℃
Storage temperature	-40~85ºC
Operating humidity	10% to 90% RH(non-condensing)
Storage humidity	5% to 95% RH(non-condensing)
Operating altitude	-500~5000M
Corrosion class	Salt Tolerance
ESD protection	Air Discharge: 15kV Contact Discharge: 8kV
Surge protection	Common Mode 6kV
Surge protection	Common Mode：4kV Differential mode 2kV
Package Contents
Dimensions (W x D x H)	50155130mm
Weight	0.77KG
Shipping weight	1.08KG
Rack-mount bracket	2
Screw	M3 Screw*4
User Manual	1
Input power supply	DC power supply
Warranty Card	1
L2
Jumbo Frame	10000 Bytes
port
Port flow control	Yes
PoE watchdog	Yes
Port isolation	Yes
EEE	Yes
Ultra-long-haul transmission	Yes
Cable Test	Yes
VLAN
IEEE802.1Q VLAN	Yes
Port-based VLAN	Yes
G.8032 (ERPS)
ERPS	Yes
SPAN
Port mirroring	Yes
Mirroring	Yes
Mac Address
Mac Address	Yes
Storm Suppression
Broadcast storm control	Yes
Multicast storm control	Yes
Unknown unicast storm control	Yes
L3
DNS	Yes
DHCP
DHCP snooping	Yes
DHCP client	Yes
High Features
Interface-based rate limiting (ingress/egress)	Yes
Online Upgrade
Online Upgrade	Yes
Self-Organizing Network
Self-Organizing Network	Yes
System log
System log	Yes
ALARM
Camera detection	Yes
Loop alarm	Yes
PoE power overload	Yes
Management Features
Web Management	Yes
MACC
Ruijie Cloud	Yes
APP
Ruijie Reyee App	Yes
