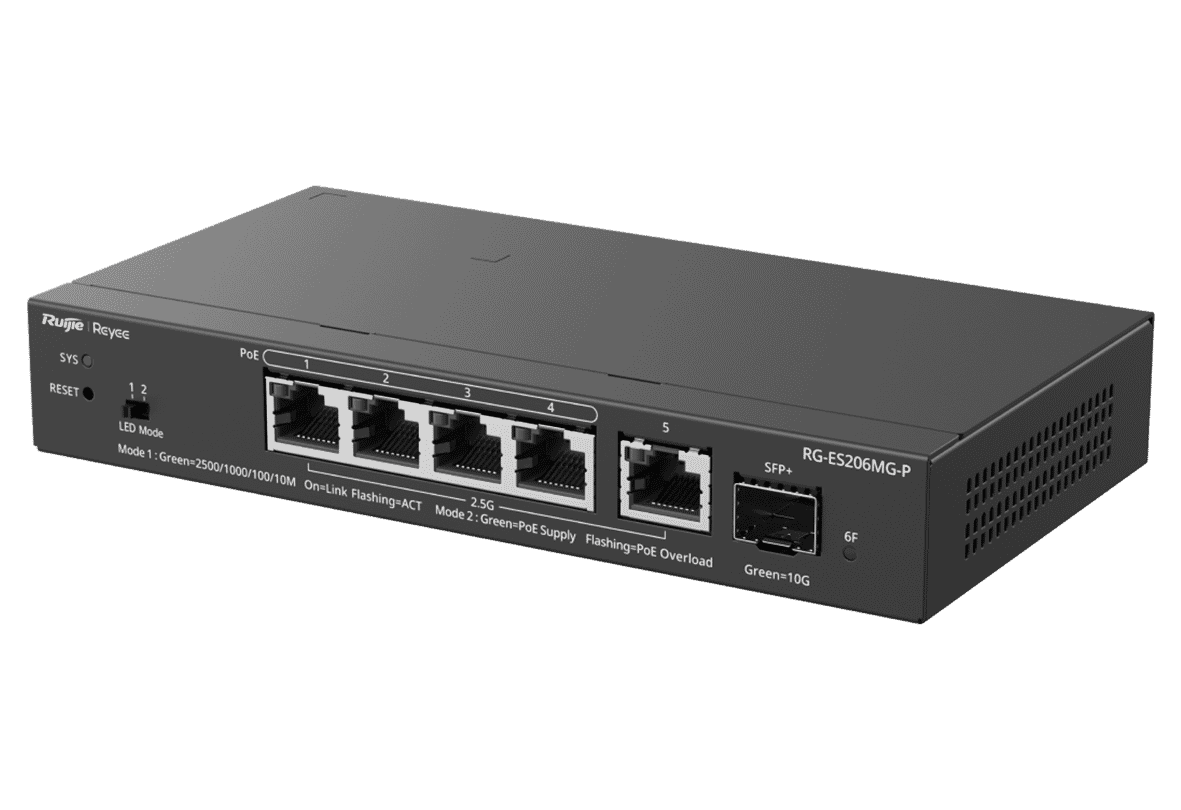

Ruijie RG-ES206MG-P 5-Port 2.5G Cloud Managed PoE Switch, 1 x 10G Uplink
Ruijie
- 5 × 2.5G Ethernet Ports
- 4 × PoE+ Ports
- 3 year guarantee
The Ruijie RG-ES206MG-P is a 5-Port 2.5G Cloud Managed Gigabit desktop switch with 5 × 2.5G Ethernet Ports, 4 × PoE+ Ports and a 10G SFP+ Uplink port. (Read more)
PRODUCT DETAILS
The Ruijie RG-ES206MG-P is a compact, high-performance cloud-managed PoE switch designed to deliver multi-gigabit connectivity and reliable power distribution for modern network environments. Ideal for small to medium-sized businesses, surveillance systems, and high-speed Wi-Fi deployments, it combines advanced performance with simple, remote management.

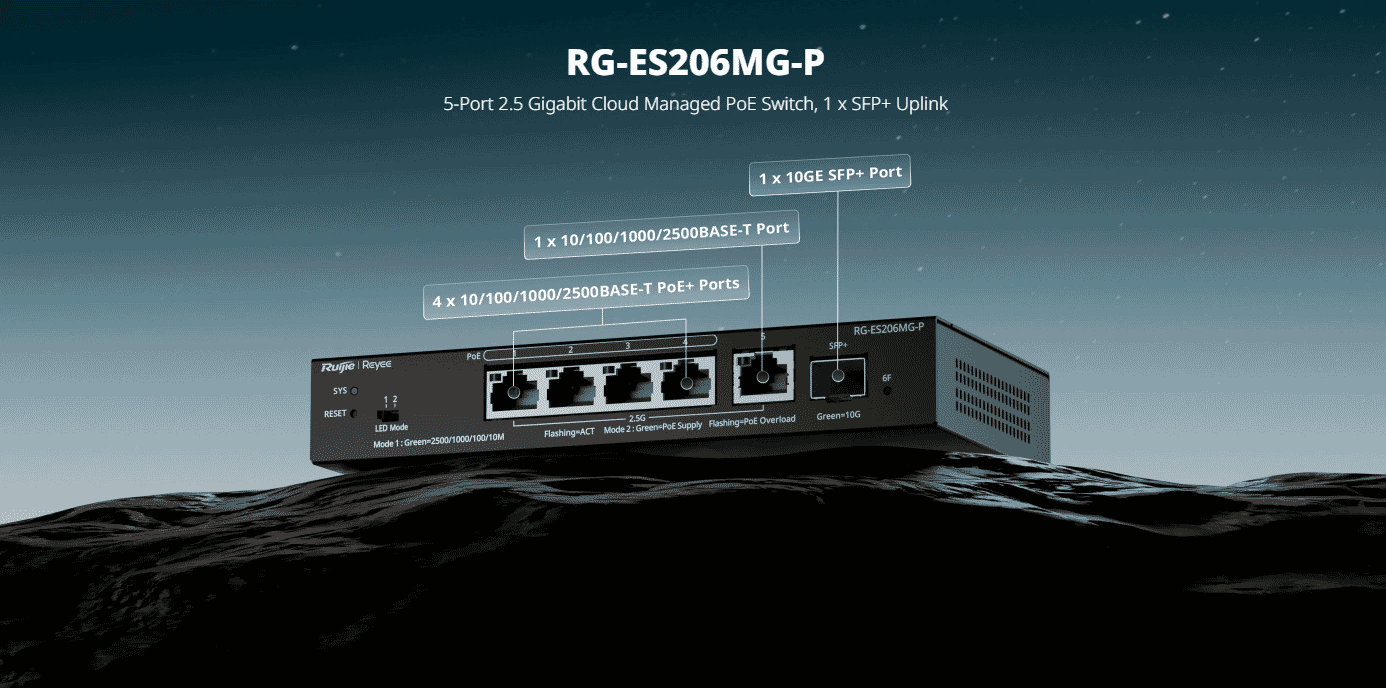

Equipped with five 2.5 Gigabit Ethernet ports and a 10G SFP+ uplink, the RG-ES206MG-P ensures high-speed data transmission and seamless network expansion. This makes it particularly well-suited for bandwidth-intensive applications such as Wi-Fi 6/7 access points, IP cameras, and high-performance workstations.
The switch features four PoE+ ports supporting IEEE 802.3af/at standards, with a total 70W PoE budget, enabling it to power devices such as IP cameras, access points, and VoIP phones directly over the network cable.
With free cloud management via Ruijie Cloud, users can monitor, configure, and manage the network remotely, simplifying deployment and maintenance. Its intelligent Layer 2 features, including port isolation and storm control, help maintain network stability and security in demanding environments.
Designed with a fanless, compact form factor, the RG-ES206MG-P
operates quietly and efficiently, making it suitable for office,
retail, and residential installations where space and noise are
considerations. The Ruijie RG-ES206MG-P offers a powerful,
future-ready networking solution, combining multi-gigabit
performance, PoE flexibility, and cloud-based simplicity in a
compact and cost-effective switch.
Features:
- 5 × 2.5G Ethernet ports for high-speed connectivity
- 1 × 10G SFP+ uplink for fast network expansion
- 4 × PoE+ ports with 70W total power budget
- Cloud-managed via Ruijie Cloud for remote control and monitoring
- Layer 2 features including port isolation and storm control
- Fanless design for silent operation
- Ideal for CCTV, Wi-Fi 6/7, and SME network deployments
| Port
Specifications |
|
| Total number of RJ45 ports |
5 |
| Total number of optical
ports |
1 |
| Number of 10GE SFP+ ports |
1 |
| Number of 10/100/1000/2500BASE-T
ports |
5 |
| Reset button |
1 |
| DIP switch |
LED mode switch toggled to left (Mode
1): The port LED status indicates the status of traffic
transmission. Solid green means that the port is link up, while
blinking green means that the port is transmitting and receiving
data. LED mode switch toggled to right (Mode 2): The port LED status indicates the PoE status. Solid green means that the port is supplying power, while blinking green means that the port is in power overload state. |
| Power Supply and
Consumption |
|
| PoE Out standard |
PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports |
4 |
| Number of PoE/PoE+ Out ports |
4 |
| PoE budget |
70 W |
| PoE power pins |
1–2 (+), 3–6 (-) |
| Power input |
DC adapter: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 1.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 1.48 A |
| Maximum power consumption |
5.5 W (with no PoE load) 75.5 W (with PoE full load) |
| Power supply |
DC power adapter |
| System
Specifications |
|
| Flash memory |
4 MB |
| Forwarding rate |
33.75 Mpps |
| Switching capacity |
45 Gbps (bit/s) |
| Dimensions and
Weight |
|
| Casing |
Metal |
| Product dimensions (W x D x
H) |
172 mm x 90.8 mm x 28 mm (6.77 in. x
3.57 in. x 1.1 in.) |
| Weight |
0.49 kg (1.08 lbs) (without packaging
materials) 1.39 kg (3.06 lbs) (with packaging materials) |
| Shipping weight |
1.39 kg (3.06 lbs) |
| Environment and
Reliability |
|
| Fan |
Fanless design |
| Cooling |
Natural cooling |
| Mounting options |
Wall/Desk |
| Hot swapping of cables |
Hot swapping supported by the service
port and power connector |
| MTBF |
200,000 hours |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
–40°C to +70°C (–40°F to
+158°F) |
| Operating humidity |
10% RH to 90% RH
(non-condensing) |
| Storage humidity |
5% RH to 95% RH
(non-condensing) |
| Altitude |
–500 m to +5,000 m (–1,640.42 ft. to
+16,404.20 ft.) |
| ESD protection |
Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection |
Service port: ±4 kV for common
mode Power connector: ±4 kV for common mode and ±4kV for differential mode |
| Certification and
Regulatory Compliance |
|
| EMC |
EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance |
EN 62638-1 |
| Certification |
CE |
| Authentication |
|
| RADIUS |
No |
| 802.1X authentication |
No |
| Basic
Configurations |
|
| PoE watchdog |
Yes |
| Online upgrade |
Yes |
| Ethernet
Switching |
|
| Maximum number of VLANs |
16 |
| Maximum number of MAC address
entries |
4000 |
| Interface flow control |
Yes |
| IEEE 802.1Q VLAN |
Yes |
| VLAN configuration supported on LAN
ports |
Yes |
| LLDP |
No |
| LLDP-MED |
No |
| Static MAC address |
Yes |
| Static aggregation |
Yes |
| LACP |
No |
| Inbound or outbound rate limiting based
on interface traffic |
Yes |
| Gateway Features |
|
| 802.1p priority-based traffic
classification |
No |
| DSCP priority-based traffic
classification |
No |
| Interface |
|
| Jumbo frame length (MTU) |
9216 bytes |
| EEE |
Yes |
| Cable test |
Yes |
| IP Routing |
|
| IPv4 static route |
No |
| IPv6 static route |
No |
| OSPFv2 |
No |
| OSPFv3 |
No |
| IP Service |
|
| ARP |
No |
| IPv4 ping |
No |
| IPv4 traceroute |
No |
| ICMPv6 |
No |
| IPv6 ping |
No |
| IPv6 traceroute |
No |
| DNS client |
Yes |
| DHCP client |
Yes |
| Multicast |
|
| IGMPv1 snooping |
No |
| IGMPv2 snooping |
No |
| Basic IGMPv3 snooping |
No |
| Full IGMPv3 snooping |
No |
| IGMP filtering |
No |
| IGMPv1, v2, and v3 |
No |
| Network Management and
Monitoring |
|
| Mirroring |
Yes |
| HTTP login |
Yes |
| HTTPS login |
No |
| SON |
Yes |
| Syslog |
No |
| Camera detection |
Yes |
| eWeb management |
Yes |
| Ruijie Cloud management |
Yes |
| Ruijie Reyee App management |
Yes |
| SNMPv1, v2c, and v3 |
No |
| Security |
|
| Port isolation |
Yes |
| Broadcast storm control |
Yes |
| Multicast storm control |
Yes |
| Unknown unicast storm control |
Yes |
| DHCP snooping |
Yes |
| Standard ACL |
No |
| Extended MAC ACL |
No |
| Extended IP ACL |
No |
| IPv6 ACL |
No |
| ARP anti-spoofing |
No |
| CPU Protection Policy |
Yes |
| System Performance
Capacity |
|
| Recommended camera limit |
200W H265: 70 400W H265: 35 |
| Device |
|
| Device |
1 |
| Accessories |
|
| Power cord |
1 x 1.8 m (5.91 ft.) or 1 x 1.9 m (6.23 ft.) Note: There are two power cord lengths. Please refer to the actual delivery. |
| User Manual |
1 |
| Warranty Card |
1 |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-ES206MG-P Datasheet |
| Ruijie RG-ES206MG-P Installation Guide |
| Ruijie RG-ES206MG-P User Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
