Ruijie RG-EG105G-P V3 Reyee Cloud Managed Gigabit Load-Balancing PoE Router
Ruijie
- 5 × Gigabit RJ45 Ports
- 4 × PoE+ Output Ports
- 3 year guarantee
The Ruijie RG-EG105G-P-V3 is a Reyee Cloud Managed Gigabit PoE Router which combines advanced routing capabilities with integrated PoE+ functionality. (Read more)
PRODUCT DETAILS

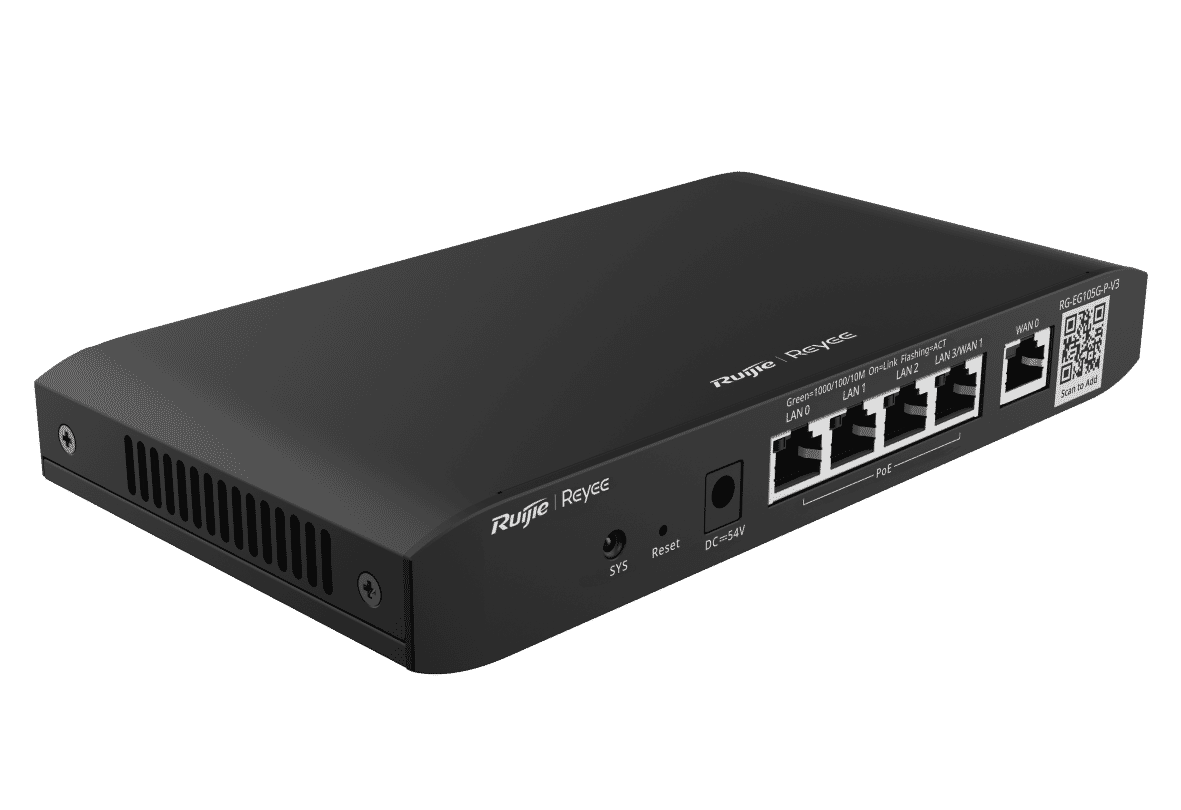

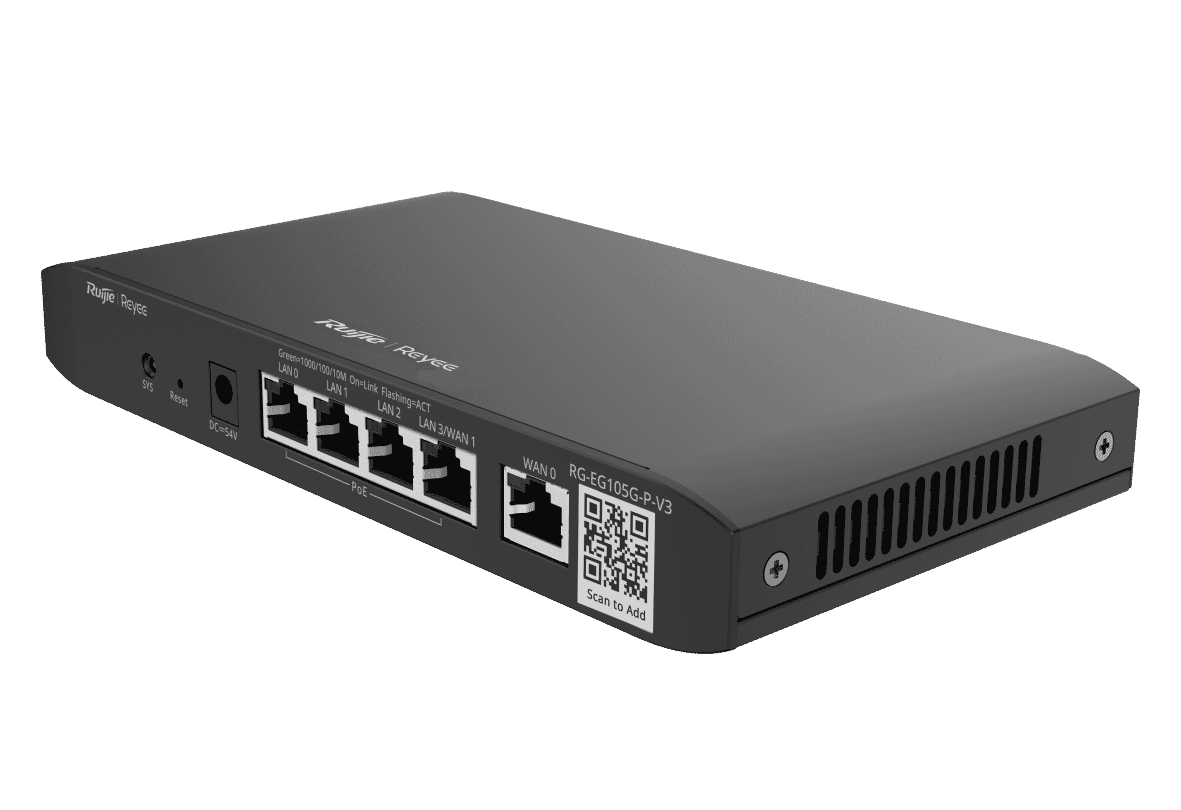

The Ruijie RG-EG105G-P-V3 Reyee Cloud Managed PoE Router is a compact yet powerful Gigabit cloud-managed router designed to provide secure, high-performance networking for small businesses, retail environments, hospitality venues, and professional surveillance systems. Combining advanced routing capabilities with integrated PoE+ functionality, it offers an all-in-one solution for powering network devices while delivering reliable internet connectivity and simplified network management.
Equipped with five Gigabit Ethernet ports, including four IEEE 802.3af/at PoE+ ports, the RG-EG105G-P-V3 can supply power directly to compatible wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices. With a 54W PoE power budget, it reduces installation costs by eliminating the need for separate power supplies.
Supporting up to 100 concurrent users, the router delivers stable performance for data, voice, and video applications. Intelligent dual-WAN load balancing and automatic failover help maximise uptime by maintaining connectivity if one internet connection becomes unavailable, ensuring business-critical services remain operational.
The RG-EG105G-P-V3 is managed through the Ruijie Cloud platform and Reyee mobile app, allowing installers and network administrators to remotely configure, monitor, troubleshoot, and maintain networks without licence fees. Additional enterprise-class features include VPN support (IPsec, OpenVPN, L2TP and PPTP), firewall protection, smart bandwidth management, application control, captive portal authentication, and VLAN support, providing a secure and flexible networking solution for growing businesses.
Features:
- 5 × Gigabit Ethernet ports
- 4 × IEEE 802.3af/at PoE+ output ports
- 54W total PoE power budget
- Supports up to 100 concurrent users
- Dual-WAN load balancing and automatic failover
- VPN support including IPsec, OpenVPN, L2TP and PPTP
- Intelligent bandwidth management and application control
- Free cloud management via Ruijie Cloud and Reyee App
- Captive portal for guest network authentication
- Ideal for offices, retail, hospitality, education, and CCTV installations

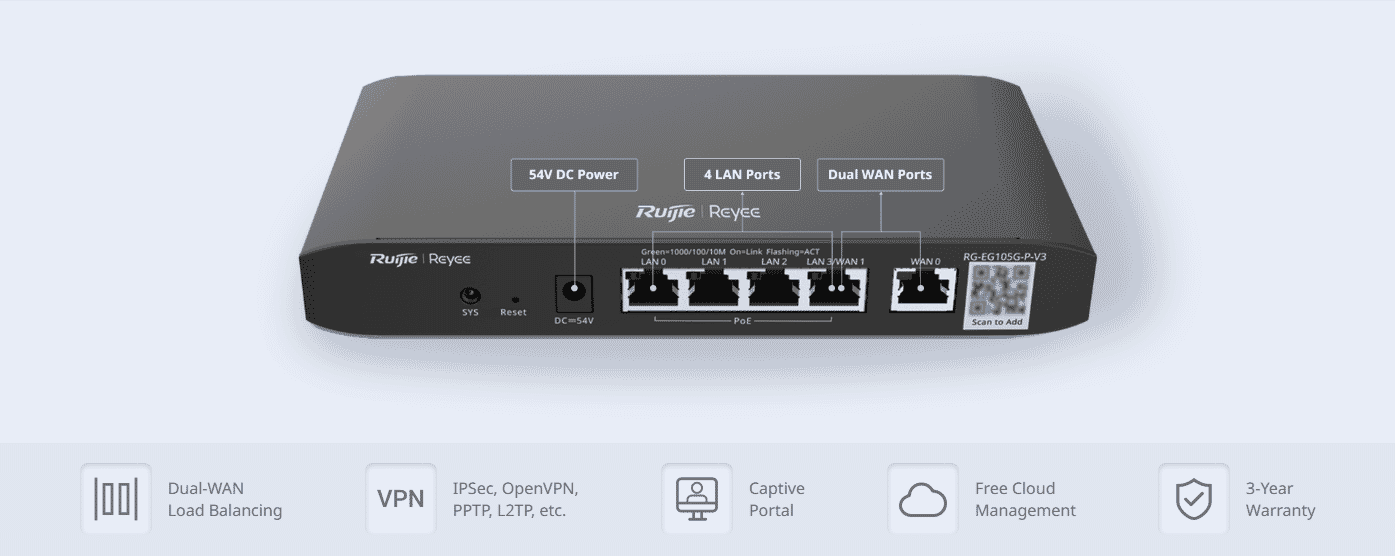

| Port
Specifications |
|
| Total number of RJ45 ports |
5 |
| Number of 10/100/1000BASE-T ports |
5 |
| Maximum number of LAN ports |
4 |
| Maximum number of WAN ports |
2 |
| Number of fixed LAN ports |
3 |
| Number of fixed WAN ports |
1 |
| Number of fixed WAN ports |
1 |
| LEDs |
1 x system status LED 5 x Ethernet port LEDs |
| Reset button |
1 |
| System
Specifications |
|
| CPU |
Dual-core processor, 880 MHz clock frequency per
core |
| Flash memory |
32 MB |
| RAM |
128 MB |
| Power Supply and
Consumption |
|
| Power supply |
DC power adapter |
| Dimensions of the DC connector |
Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.) |
| Maximum power consumption |
60 W |
| PoE budget |
54 W |
| Number of PoE Out ports |
4 |
| PoE budget per port |
30 W |
| PoE power pins |
1–2 (+), 3–6 (-) |
| PoE Out standard |
IEEE 802.3af/at (PoE/PoE+) |
| Dimensions and
Weight |
|
| Package dimensions (W x D x H) |
540 mm x 340 mm x 285 mm (21.26 in. x 13.39 in. x 11.22
in.) |
| Product dimensions (W x D x H) |
206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1
in.) |
| Shipping weight |
1.088 kg (2.4 lbs) |
| Weight |
0.406 kg (0.9 lbs) |
| Environment and
Reliability |
|
| Cooling |
Natural cooling |
| Fan |
Fanless design |
| Mounting options |
Desk |
| Operating humidity |
10% RH to 90% RH (non-condensing) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage humidity |
5% RH to 95% RH (non-condensing) |
| Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
| Surge protection |
Service port: ± 4 kV for common mode Power connector: ± 2 kV for common mode and ± 1 kV for differential mode |
| System Performance
Capacity |
|
| Maximum number of concurrent sessions |
20000 |
| Recommended number of concurrent clients |
100 |
| Throughput |
1000 Mbps (Turbo Mode) 600 Mbps (Normal Mode) |
| Basic
Configurations |
|
| AC mode |
Yes |
| Automatically identifying the Internet access mode and
obtaining IP addresses |
Yes |
| Automatically learning the PPPoE username and password of other
routers |
Yes |
| Configuration backup |
Yes |
| Internet access mode |
Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
| Local upgrade |
Yes |
| Log upload |
Yes |
| Online upgrade |
Yes |
| Restoring factory defaults |
Yes |
| System language |
English, Chinese, Turkish, Arabic, Vietnamese, Thai,
Indonesian, Latin American Spanish, Brazilian Portuguese, Russian,
French, German, European Spanish, Italian, and Polish |
| Authentication |
|
| Portal authentication |
Yes |
| One-click authentication |
Yes |
| Password authentication |
Yes |
| SMS-based authentication |
Yes |
| Voucher authentication supported by Ruijie Cloud portal
page |
Yes |
| Cloud portal authentication |
Yes |
| Local portal authentication |
Yes |
| QR code authentication |
Yes |
| Custom portal page |
Yes |
| Account-based authentication supported by Ruijie Cloud portal
page |
Yes |
| CHAP, MS-CHAPv1, MS-CHAPv2 |
Yes |
| Delivery through Ruijie Cloud portal page |
Yes |
| 802.1X authentication |
Yes |
| MAC address-based authentication |
Yes |
| PPPoE server |
Yes |
| Number of accounts supported by the PPPoE server |
50 |
| Number of concurrent clients supported by the PPPoE
server |
35 |
| RADIUS flow control authorization |
No |
| PAP |
Yes |
| RADIUS authentication |
Yes |
| RADIUS client |
Yes |
| RADIUS accounting based on time or traffic |
Yes |
| RADIUS flow control authorization |
Yes |
| RADIUS proxy server |
Yes |
| RADIUS traffic quota authorization |
Yes |
| RADIUS user group authorization |
Yes |
| Third-party authentication |
Yes |
| Ethernet
Interface |
|
| Avoiding IP address conflicts on WAN interfaces |
Yes |
| Multiple IP addresses on a WAN port |
No |
| Load balancing |
Yes |
| MAC address cloning |
Yes |
| Multiple WAN interfaces on the same network segment |
Yes |
| PPPoE clients |
Yes |
| Scheduled PPPoE reconnection |
No |
| Ethernet
Switching |
|
| Configuring multiple VLANs upon configuration
delivery |
No |
| Link aggregation |
No |
| LLDP |
No |
| VLAN |
Yes |
| VLAN configuration supported on LAN ports |
Yes |
| Super-VLAN |
No |
| Configuring the same VLAN tag for multiple WAN ports |
No |
| VLAN priority |
Yes |
| Gateway Features |
|
| WAN failover |
Yes |
| Application priority |
Yes |
| Application recognition |
Yes |
| Behaviour management |
Yes |
| QoS |
Yes |
| Time-based blocking policy IP address-based blocking
policy |
Yes |
| Website filtering: custom URL |
Yes |
| Traffic audit |
Yes |
| URL audit log |
Yes |
| Audit log server |
Yes |
| Audit log storage |
No |
| Uploading audit logs to a server |
Yes |
| IP Routing |
|
| Application-based routing |
No |
| Bandwidth aggregation |
Yes |
| BGP |
No |
| BGP4 |
No |
| BGP4+ |
No |
| ECMP |
No |
| IPv4 static route |
Yes |
| IPv6 PBR |
Yes |
| Route selection based on national address database |
No |
| IPv6 static route |
Yes |
| IS-ISv4 |
No |
| IS-ISv6 |
No |
| Load balancing based on flows |
Yes |
| Load balancing based on source IP addresses |
Yes |
| Load balancing based on the interface weight |
Yes |
| Route selection by link quality |
No |
| OSPFv2 |
Yes |
| OSPFv3 |
Yes |
| RIP |
Yes |
| RIPng |
Yes |
| IP Service |
|
| 3322.org |
Yes |
| ALG |
Yes |
| ARP binding |
Yes |
| Maximum number of ARP entries |
1024 |
| Proxy ARP |
No |
| Cloudflare |
Yes |
| DHCP client |
Yes |
| DHCP server |
Yes |
| DHCP relay |
No |
| Option 43 |
Yes |
| Option 138 |
Yes |
| Static/Dynamic NAT |
Yes |
| NAT-PT |
No |
| NAT loopback |
Yes |
| DNS client |
Yes |
| DNS proxy |
Yes |
| DNS server |
Yes |
| No-IP DNS |
Yes |
| GRE tunnel |
No |
| IPTV |
Yes |
| IPv4 ping |
Yes |
| IPv6 |
Yes |
| IPv6 ping |
Yes |
| Number of port mapping entries |
256 |
| Port mapping |
Yes |
| DDNS |
Yes |
| Ruijie DDNS |
Yes |
| Alibaba Cloud DDNS |
Yes |
| UPnP |
Yes |
| Network Management and
Monitoring |
|
| Web management |
Yes |
| Ruijie Cloud management |
Yes |
| Management on Ruijie Reyee App |
Yes |
| Remotely monitoring devices through Ruijie Reyee App |
Yes |
| Restarting devices through Ruijie Reyee App |
Yes |
| Upgrading device software version through Ruijie Reyee
App |
Yes |
| Fault diagnosis |
Yes |
| FTP client (IPv4 address) |
No |
| FTP server (IPv4 address) |
No |
| TFTP client (IPv4 address) |
Yes |
| TFTP server (IPv4 address) |
No |
| HTTPS login |
Yes |
| NTP client |
Yes |
| NTP server |
No |
| Scheduled device restart |
Yes |
| SNMPv1, v2c, and v3 |
Yes |
| SON |
Yes |
| SSH |
No |
| Telnet |
No |
| Web login information |
Default IP Address: 192.168.110.1 Default Password: admin |
| Maximum number of managed devices (router mode) |
AP and NBS series: 32 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Maximum number of managed devices (AC mode) |
AP and NBS series: 300 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Reliability |
|
| Stacking |
No |
| VRRP |
No |
| SD-WAN |
|
| SD-WAN |
Yes |
| SD-WAN performance |
80 Mbps |
| Number of tunnels supported by SD-WAN |
24 |
| Maximum number of SD-WAN branches |
8 |
| Active/Standby mode (automatically switching to the standby
interface when the active interface fails) |
Yes |
| Bypass networking for a device in AP mode |
No |
| Centralized traffic forwarding policy |
Yes |
| Security |
|
| ACL |
Yes |
| DHCP snooping |
No |
| Malformed packet attack defence |
Yes |
| Fragmentation attack defence |
Yes |
| Teardrop attack defence |
Yes |
| LAND attack defence |
Yes |
| SYN flood attack defence |
Yes |
| Smurf attack defence |
Yes |
| IP attack defence |
Yes |
| Disabling ping |
Yes |
| Stateful ACL |
Yes |
| IP-MAC binding |
Yes |
| Network sharing prevention |
Yes |
| Security log |
Yes |
| Security zone |
Yes |
| User group-based connection limiting |
Yes |
| VPN |
|
| IPsec VPN |
Yes |
| IPsec VPN bandwidth |
28 Mbps |
| Maximum number of branches in IPsec VPN networking |
8 |
| L2TP VPN |
Yes |
| L2TP VPN bandwidth |
130 Mbps |
| Maximum number of branches in L2TP VPN networking |
8 |
| OpenVPN |
Yes |
| OpenVPN bandwidth |
20 Mbps |
| Maximum number of branches in OpenVPN networking |
16 |
| PPTP VPN |
Yes |
| PPTP VPN bandwidth |
190 Mbps |
| Maximum number of branches in PPTP VPN networking |
8 |
| SSL VPN |
No |
| Easy VPN 1.0 |
No |
| Number of VPN accounts for L2TP, PPTP, and OpenVPN |
50 |
| WireGuard server |
Yes |
| WireGuard client |
Yes |
| WireGuard performance |
80 Mbps |
| Number of concurrent tunnels supported by the WireGuard
server |
8 |
| WLAN |
|
| Maximum number of APs (AC mode) |
300 |
| Maximum number of devices that can be managed |
128 |
| Wireless Intelligent Optimization (WIO) |
Yes |
| Accessories |
|
| Power adapter |
1 |
| Power cord |
1 x 1 m ± 50 mm (39.37 in. ± 1.97 in.) |
| Rubber pad |
4 |
| User Manual |
1 |
| Warranty Card |
1 |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-EG105G-P V3 Datasheet |
| Ruijie RG-EG105G-P V3 Installation Guide |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.
Get expert answers to questions specific to this product below or for more help visit our Q&A forum
Be the first to ask a question and help others interested in this product
Read customer reviews or submit your review of this product
Your feedback helps us improve our products and services as well as helping other users make informed buying decisions.
There are no reviews for this product.
Why buy from Connectec?
SUPPORT
Our technical support team are experienced professionals with strong product knowledge and project expertise.
SERVICE
Customer service is our top priority. We’re committed to providing first-class support to every customer.
DELIVERY
We offer FREE mainland UK delivery on orders over £75 and FREE next day delivery on orders over £150*.
PARTNERS
We are approved distributors, offering direct access to full manufacturer warranties and support.
* Qualifying products only, subject to terms. For more information view our delivery information.
