Ruijie RG-EG210G-P-V3 Reyee Cloud Managed PoE Router
Ruijie

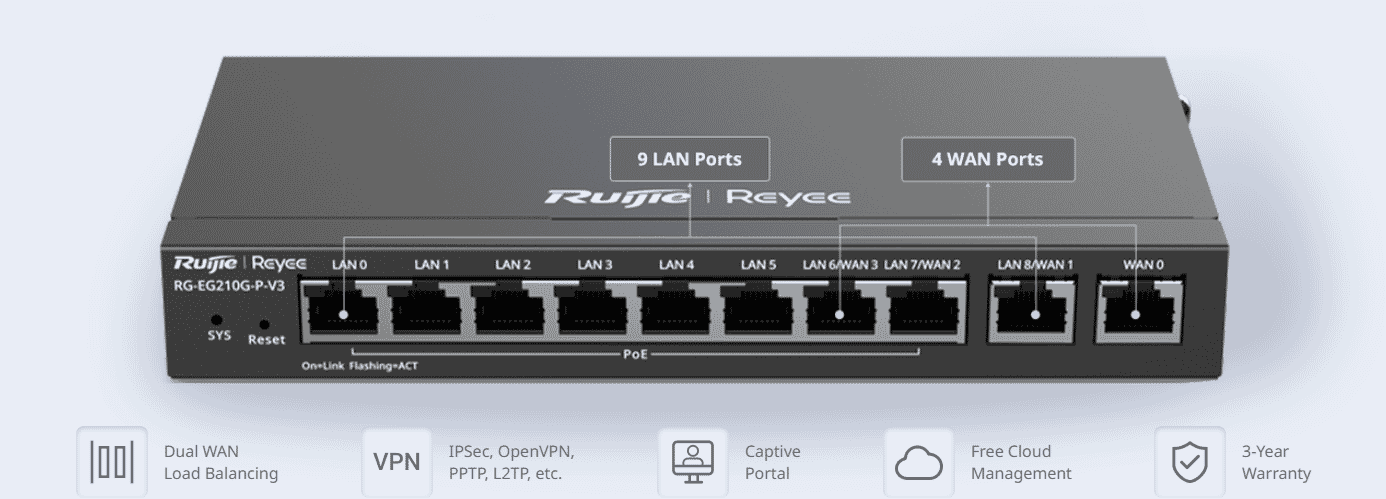

- 8 x Gigabit PoE Ports
- 4 x WAN Ports
- 3 year guarantee
The Ruijie RG-EG210G-P-V3 is a high-performance, cloud managed router that features 8 x Gigabit PoE ports which delivers up to 110W total PoE budget. (Read more)
PRODUCT DETAILS
The Ruijie RG-EG210G-P-V3 is a compact, high-performance router designed for SMBs, retail, hospitality, and branch offices that need reliable internet, simple management, and integrated PoE capability. As part of the Reyee cloud-managed ecosystem, it enables quick deployment, centralised control, and easy scalability—perfect for environments where uptime and ease of use matter most.
It features 8 x Gigabit PoE ports which delivers up to 110W total PoE budget to power IP cameras, NVR's, access points, or VoIP phones directly—no separate power adapters required.

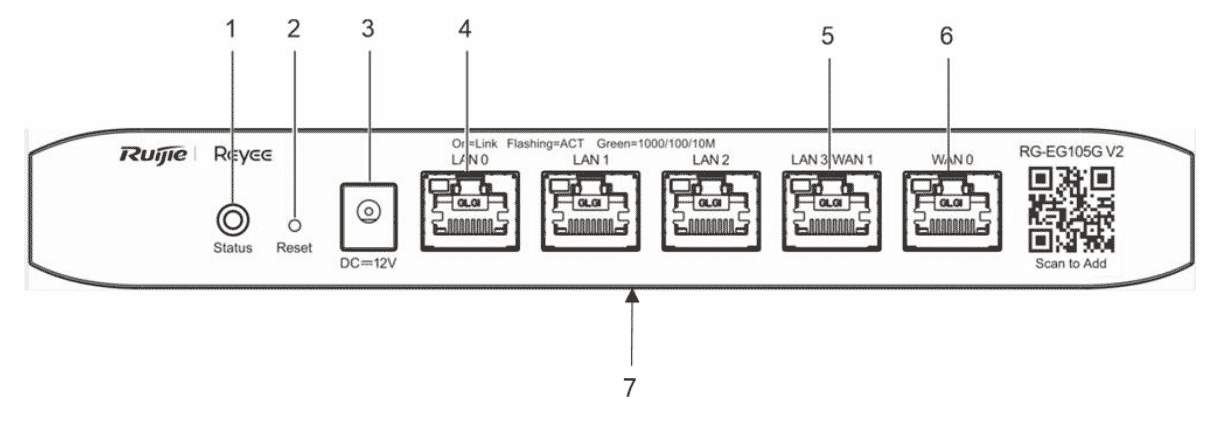

Interface
| No |
Item |
Description |
|---|---|---|
| 1 |
System status LED |
|
| 2 |
Reset button |
|
| 3 |
Power supply |
Connect the DC power adapter to the DC
input plug on the faceplate of the router to power on the
router. |
| 4 |
LAN ports |
10/100/1000BASE-T Ethernet RJ45 with
auto negotiation. Connect the LAN port to the PC, the switch or the
access point with an Ethernet cable. |
| No |
Item |
Description |
|---|---|---|
| 5 |
LAN/WAN port |
10/100/1000BASE-T Ethernet RJ45 with
auto negotiation. The port is switchable between the WAN port and the LAN port. |
| 6 |
WAN port |
10/100/1000BASE-T Ethernet RJ45 with
auto negotiation. Connect the WAN port to the DSL/Cable Modem to establish an Ethernet connection. |
| 7 |
Nameplate |
Nameplate on the bottom of the device.
Contains the product name, model, I/O parameters, default IP
address, etc. |
Features:
- Unified Features with Upgraded Flash Storage
- 8 x Gigabit PoE ports deliver up to 54 W total
- User-friendly configuration and easy to use
- High reliability and load balancing through WAN ports
- Easy to block unwanted applications with automatically updating library
- Customized portal page, what you see is what you get (WYSIWYG)
- Secure access to internal devices remotely
| Basic |
|
| Number of Fixed WAN Ports |
1 |
| Number of Fixed LAN Ports |
6 |
| Number of WAN Ports |
4 |
| Number of LAN Ports |
9 |
| WAN Port Rate |
1x10/100/1000BASE-T Ports |
| LAN Port Rate |
9x10/100/1000BASE-T Ports |
| Number of LAN/WAN Ports |
3 |
| Number of 10/100/1000BASE-T Ports |
10 |
| Number of 10/100/1000/2500BASE-T
Ports |
N/A |
| Number of 100/1000/2.5G/5G/10GBASE-T Ethernet port |
N/A |
| Number of 1 Gbps Optical Ports (SFP) |
N/A |
| Number of 10 Gbps Optical Ports (SFP+) |
N/A |
| Total Number of RJ45 Ports |
10 |
| Total Number of Optical Ports |
N/A |
| Management Port |
N/A |
| PoE |
Support AT/AF, 8 LAN ports Support PoE, MAX 110W |
| PoE Standard |
IEEE802.3af，IEEE802.3at |
| Max. PoE Power Budget |
110W |
| Max. Number of PoE Ports |
8 |
| Max. Power Output per PoE Port |
30W |
| Dimensions (W x D x H) |
202mm x 108mm x 28mm |
| Net Weight |
1.48Kg |
| Flash Memory |
32MB |
| SDRAM |
256MB |
| CPU |
880Mhz x 2 |
| Mounting |
Desk-type |
| LEDs |
System: SYS (Green) Per RJ45 Ports: LINK/ACT (Green) |
| Reset Buttons |
Yes |
| DC Power Connector Size |
Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Cooling |
Natural cooling |
| Number of Fans |
Fanless |
| Operating Temperature |
0~40℃ |
| Storage Temperature |
-40~70℃ |
| Operating Humidity |
10%~90%(non-condensing) |
| Storage Humidity |
5%~95%(non-condensing) |
| IP Rating |
N/A |
| Power Supply Surge Protection |
Common Mode：±2KV Differential mode： ±1KV |
| Port Surge Protection |
Common Mode：±2KV |
| Recommended Concurrent Clients |
200 |
| Hard Disk Drive |
N/A |
| USB |
N/A |
| Max. Power Consumption |
＜130W |
| PoE |
Support AT/AF, 8 LAN ports support PoE, MAX 110W |
| Max. PoE Power Budget |
110W |
| Max. Number of PoE Ports |
8 |
| Max. Power Output per PoE Port |
30W |
| PoE Power Pins |
1 2+,3 6- |
| Power Supply |
AC input Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Rated current: 2.5A Adapter output Rated voltage range: 54V DC Rated current range: 2.4A |
| Internet Connection Type |
PPPoE DHCP Static IP |
| Access Mode Auto Detection |
Yes |
| Software
Specifications |
|
| PPPoE Username and Password Learning |
Yes |
| Throughput |
1000Mbps(Turbo Mode) 600Mbps(Normal Mode) |
| PPPoE Client |
Yes |
| PPPoE Server |
Yes |
| Max. Number of PPPoE Accounts |
100 |
| PPPoE Concurrent Connection Limit |
65 |
| IP Address Routing based by ISP |
No |
| WAN IP Conflict Avoidance |
Yes |
| MAC Address Cloning |
Yes |
| VLAN |
Yes |
| Max. Number of VLANs |
28 |
| Port-based VLAN |
Yes |
| Super VLAN |
No |
| VLAN Priority |
Yes |
| Bandwidth Aggregation |
Yes |
| default with Multi VLAN |
No |
| In-Room Screen Sharing |
No |
| Port Mapping |
Yes |
| Number of Port Mapping Rule |
256 |
| NAT Loopback |
Yes |
| Link Aggregation |
No |
| LAN Link Aggregation |
No |
| AC Mode |
Yes |
| Behaviour Management |
Yes |
| Cloud Print |
Yes |
| Application Identification |
Yes |
| Application Priority |
Yes |
| Application Cache |
No |
| Application Control ( Yes Time/IP-based Policy) |
Yes |
| Traffic Audit |
Yes |
| Anti Network Sharing(Modify TTL) |
Yes |
| Network-wide Client Management |
Yes |
| Network Supervision |
No |
| Log Retention |
No |
| Log Audit |
Yes |
| Log Upload |
Yes |
| Log Server |
Yes |
| Maintenance and Fault Diagnosis |
Yes |
| Web Authentication |
No |
| SMS Authentication |
Yes |
| Password-based Authentication |
Yes |
| Portal Authentication |
Yes |
| 802.1X |
Yes |
| One-Click Authentication |
Yes |
| Local Portal Authentication |
Yes |
| Voucher Authentication on Ruijie Cloud |
Yes |
| Local Mode of Authentication on Ruijie Cloud |
Yes |
| Custom Portal |
Yes |
| RADIUS Client |
Yes |
| RADIUS Proxy |
Yes |
| Support Authentication Via Radius |
Yes |
| Support duration/traffic Accounting Via Radius |
Yes |
| Support Flowctrl Authorization Via Radius |
Yes |
| Support User Group Authorization Via Radius |
Yes |
| Support duration/traffic quota Via Radius |
Yes |
| Support PAP Authentication |
Yes |
| Support CHAP/MS-CHAPV1/MS-CHAPV2 Authentication |
Yes |
| Support MAC Authentication for Radius |
Yes |
| Third-Party API Integration |
Yes |
| IPTV |
Yes |
| L2TP VPN |
Yes |
| PPTP VPN |
Yes |
| IPsec VPN |
Yes |
| OpenVPN |
Yes |
| Number of Universal VPN Accounts for L2TP, PPTP, and
OpenVPN |
100 |
| IPSec VPN Performance (bi-direction, Typical Packets)
IPV4 |
28Mbps |
| L2TP VPN Performance (bi-direction, Typical Packets) |
190Mbps |
| PPTP VPN Performance (bi-direction, Typical Packets) |
190Mbps |
| OPENVPN Performance (bi-direction, Typical Packets) |
20Mbps |
| Number of IPsec VPN Tunnels |
8 |
| Number of OpenVPN Tunnels |
16 |
| Number of L2TP VPN Tunnels |
8 |
| Number of PPTP VPN Tunnels |
8 |
| VPN HQ/Branch Interconnection |
Yes |
| EasyVPN 1.0 |
No |
| Number of EasyVPN Tunnels |
N/A |
| SSL VPN |
N/A |
| Number of SSL VPN Tunnels |
N/A |
| RIPng |
Yes |
| RIP |
Yes |
| OSPFv2 |
Yes |
| OSPFv3 |
Yes |
| WAN Failover |
Yes |
| Static Routing |
Yes |
| Equal Cost Multi-Path Routing |
N/A |
| Policy-Based Routing (PBR) |
Yes |
| Interface Active/Standby Switchover |
Yes |
| WAN Load Balancing |
Yes |
| IP-based Load Balancing |
Yes |
| Session-based Load Balancing |
Yes |
| Real-Time Load-based Load Balancing |
Yes |
| DHCP Server |
Yes |
| DHCP Client |
Yes |
| DHCP Snooping |
N/A |
| DHCP Relay |
N/A |
| DNS Client |
Yes |
| DNS Server |
Yes |
| DNS Proxy |
Yes |
| NTP Client |
Yes |
| Oray DDNS |
N/A |
| DynDNS |
Yes |
| No-IP DDNS |
Yes |
| Ruijie DDNS |
Yes |
| 3322 DDNS |
Yes |
| Aliyun DDNS |
Yes |
| Cloudflare |
Yes |
| NAT |
Yes |
| NAPT |
Yes |
| UPnP |
Yes |
| SNMP |
Yes |
| ACL |
Yes |
| Time-based ACL |
Yes |
| IPv6 ACL |
Yes |
| Block LAN/WAN Ping |
Yes |
| IP-MAC Binding |
Yes |
| MAC Address Filtering |
Yes |
| Session Limit |
Yes |
| Fraggle Attack Defense |
Yes |
| Teardrop Attack Defense |
Yes |
| Malformed Packet Attack Defense |
Yes |
| Land Attack Defense |
Yes |
| Smurf Attack Defense |
Yes |
| SYN Flood Attack Defense |
Yes |
| Security Zone |
Yes |
| Security Logs |
Yes |
| Upgrade via App |
Yes |
| Reboot via App |
Yes |
| Scheduled Reboot |
Yes |
| HTTPS Login |
Yes |
| Upgrade via eWeb |
Yes |
| Upgrade via Ruijie Cloud |
Yes |
| Configuration Backup |
Yes |
| Factory Reset |
Yes |
| Language |
Yes |
| Self-Organizing Network (SON) |
Yes |
| Device Management |
Yes |
| No. of Devices Managed in Router Mode |
150 |
| No. of Devices Managed in AC Mode |
500 |
| Wireless Intelligent Optimization (WIO |
Yes |
| Flow Control |
Yes |
| NAT ALG |
Yes |
| anyIP |
N/A |
| Remote Check on App |
Yes |
| ARP Table Size |
1024 |
| ARP Binding |
Yes |
| Ping |
Yes |
| Blocklist and Allowlist |
Yes |
| WAN/LAN Conversion |
Yes |
| Link Detection |
Yes |
| Multi WAN with same subnet |
Yes |
| Max. Number of Concurrent Connections |
60000 |
| SIP ALG |
Yes |
| SD-WAN |
Yes |
| Number of SD-WAN Tunnels |
24 |
| Number of branches supported by SD-WAN |
8 |
| SD-WAN performance |
80Mbps |
| IPv6 |
Yes |
| App Management |
Yes |
| Web Management |
Yes |
| Ruijie Cloud Management |
Yes |
| Stateful Firewall |
Yes |
| Website filtering |
Yes |
| Website Auditing |
Yes |
| Package Contents |
|
| Power Adapter |
Yes |
| Mounting Brackets |
Desk-type |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-EG210G-P-V3 Datasheet |
| Ruijie RG-EG210G-P-V3 Installation Guide |
