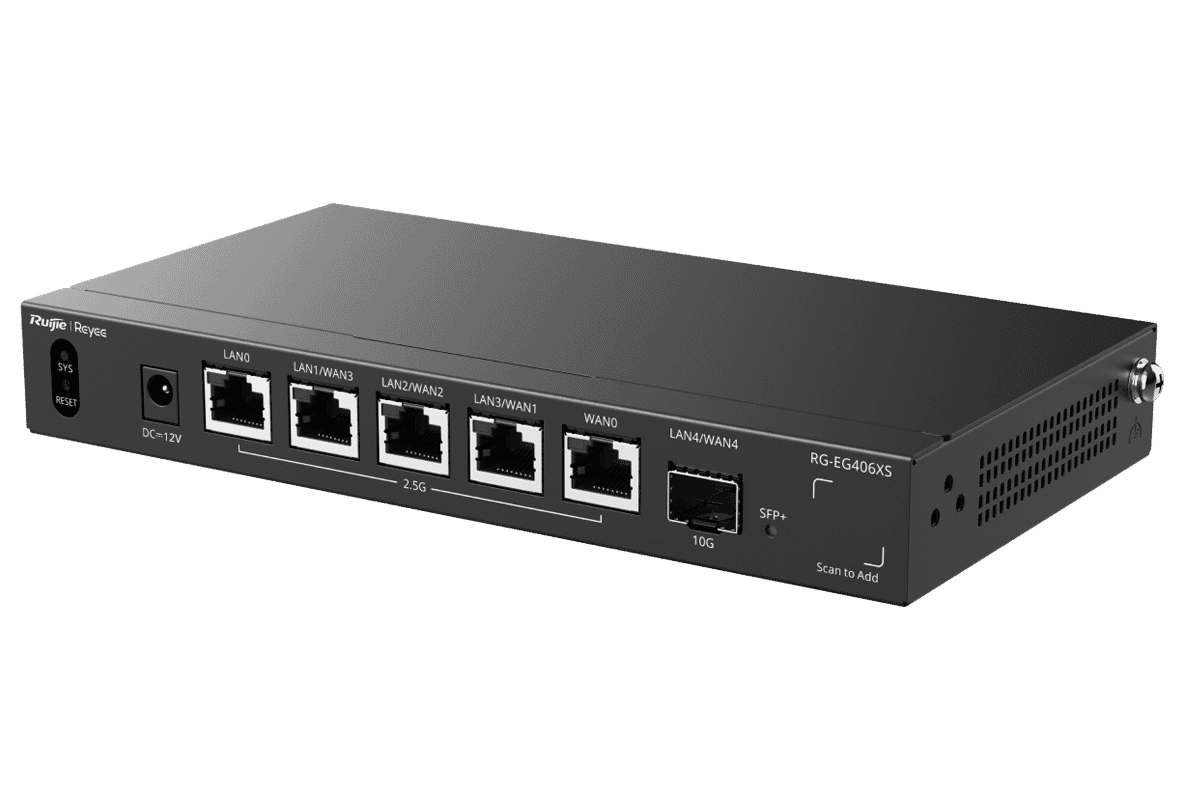

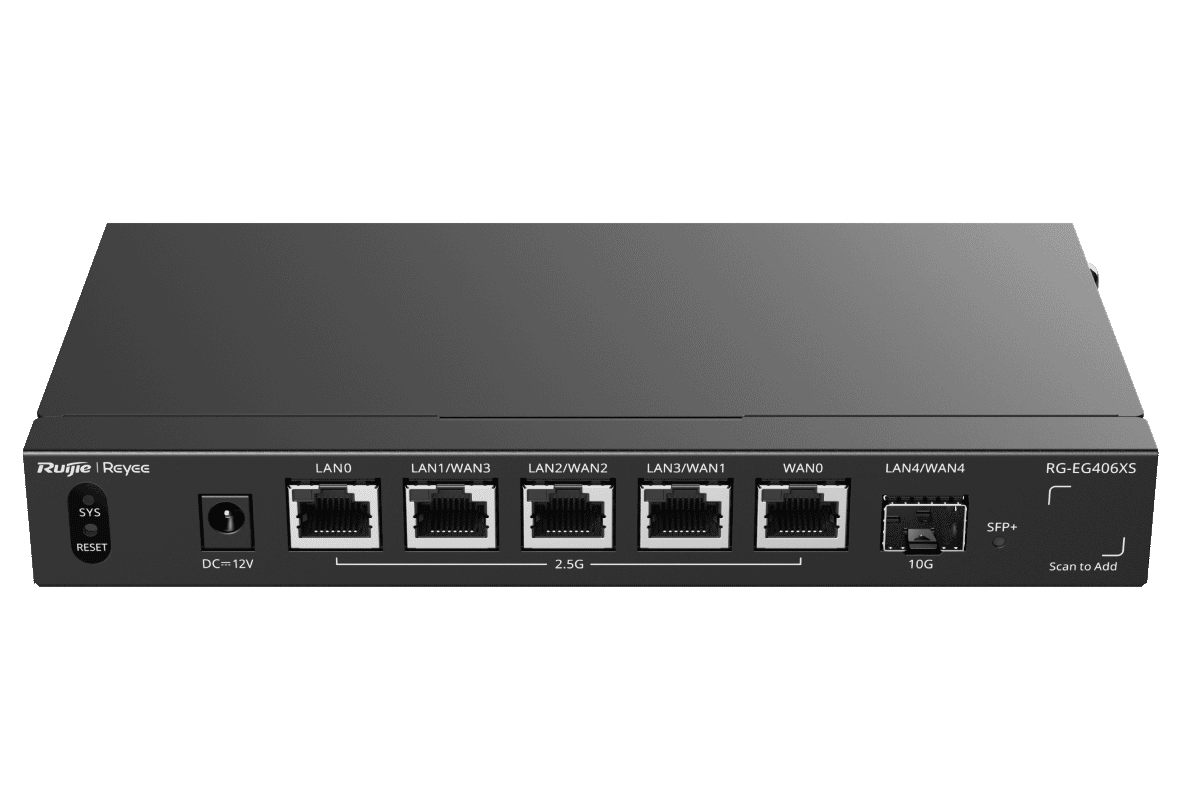

Ruijie RG-EG406XS Reyee Cloud Router, 5 Ports RJ45 2.5G + 1 SFP+ 10Gigabit
Ruijie
- 5 x Gigabit RJ45 Ports
- 10GE SFP Port
- 3 year guarantee
The Ruijie RG-EG406XS is a higher performance smart cloud managed router that features 5 x 2.5 Gigabit RJ45 ports and 1 x 10 Gigabit SFP fibre port. (Read more)
PRODUCT DETAILS
The Ruijie RG-EG406XS Reyee Cloud Router is a powerful 5-port 2.5 Gigabit cloud-managed router designed to deliver high-speed, secure, and intelligent networking for demanding business environments. Ideal for small and medium-sized offices, retail stores, hospitality venues, schools, and multi-branch organisations, it combines multi-gigabit performance with advanced routing features and effortless cloud management. It features five 2.5GbE RJ45 ports and a 10Gb SFP+ uplink port, providing high-speed connectivity for modern network infrastructures and high-bandwidth applications.
Supporting routing throughput of up to 2.5Gbps and up to 400 recommended concurrent users, the RG-EG406XS is built to handle bandwidth-intensive applications including cloud services, VoIP, IP surveillance, video conferencing, and high-density wireless networks. Intelligent traffic management, application-based bandwidth control, and advanced Quality of Service (QoS) help ensure reliable performance across all connected devices.
The router includes comprehensive business networking features such as multi-WAN load balancing, automatic WAN failover, VLAN support, stateful firewall protection, and support for multiple VPN technologies including IPsec, OpenVPN, WireGuard, L2TP, and PPTP, allowing secure remote access and seamless inter-site connectivity.
Integrated with the Ruijie Cloud platform, the RG-EG406XS enables remote configuration, monitoring, troubleshooting, and firmware management through an intuitive web portal or the Ruijie Reyee mobile app. This allows installers and network administrators to manage multiple sites from virtually anywhere without additional licence fees.
Its compact, fanless design provides silent operation and dependable reliability, making it suitable for installation in offices, communications cabinets, and other noise-sensitive environments.
Features:

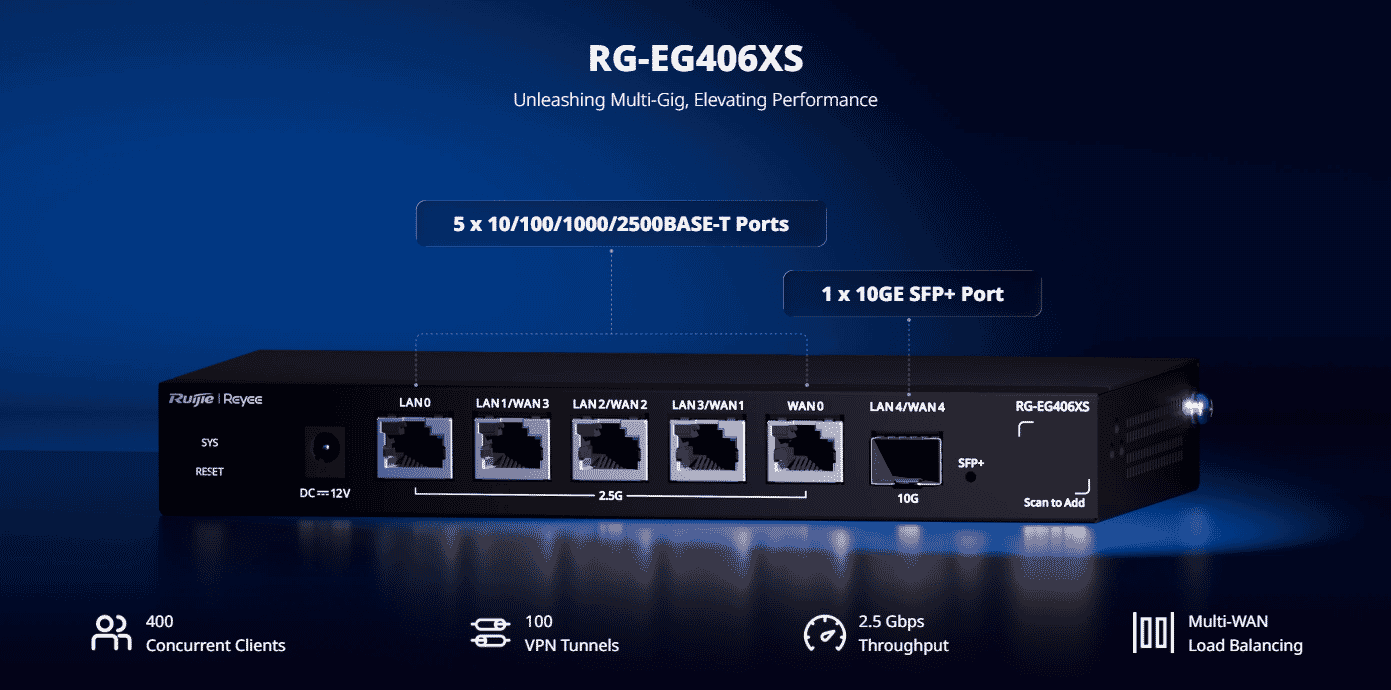

- 5 × 2.5 Gigabit Ethernet ports
- 1 × 10Gb SFP+ uplink port
- Up to 2.5Gbps routing throughput
- Supports up to 400 recommended concurrent users
- Multi-WAN load balancing and automatic failover
- Advanced firewall, VLAN, QoS, and VPN support
- Cloud management via Ruijie Cloud and Reyee App
- Remote monitoring, configuration, and firmware updates
- Fanless design for silent operation
- Ideal for SMBs, hospitality, education, retail, and enterprise branch networks

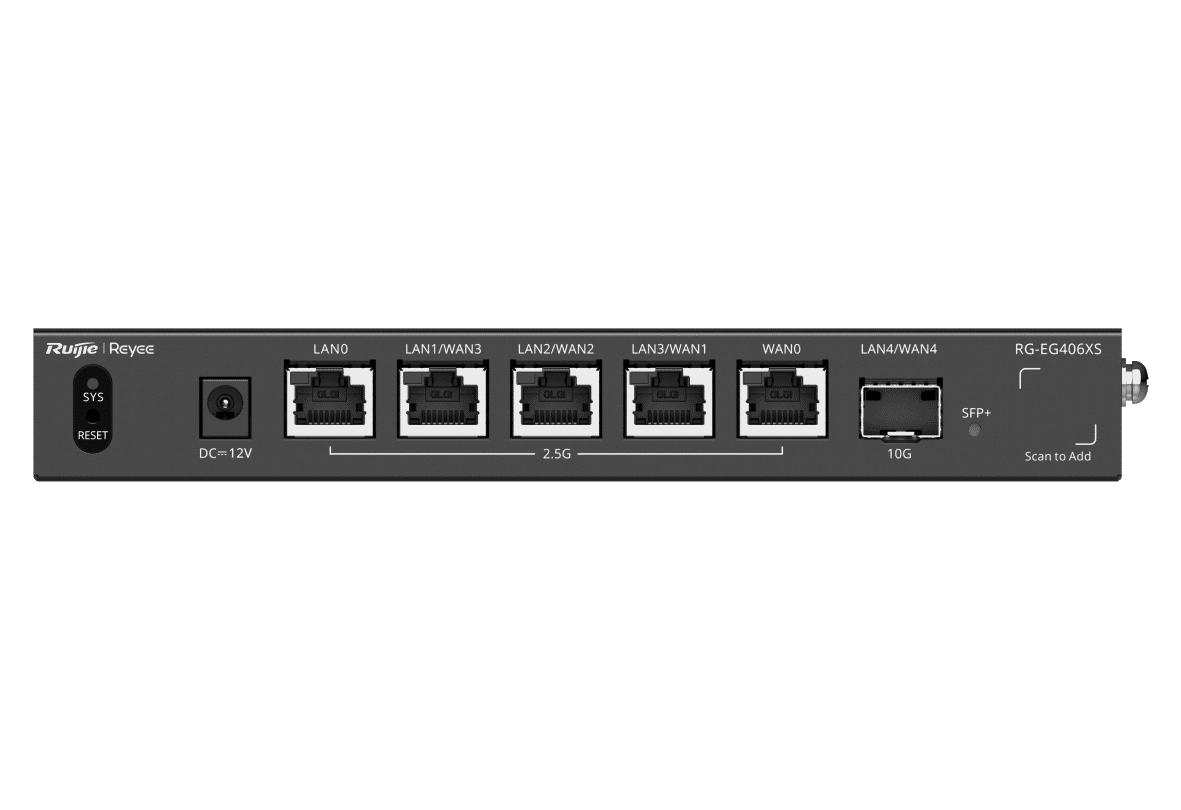

| Port
Specifications |
|
| Total number of optical ports |
1 |
| Total number of RJ45 ports |
5 |
| Number of 10/100/1000/2500BASE-T
ports |
5 |
| Number of 10GE SFP+ ports |
1 |
| Maximum number of LAN ports |
5 |
| Maximum number of WAN ports |
5 |
| Number of fixed LAN ports |
1 |
| Number of fixed WAN ports |
1 |
| Number of LAN/WAN ports |
4 |
| LEDs |
1 x system status LED 6 x Ethernet port LEDs |
| Reset button |
1 |
| System
Specifications |
|
| CPU |
Quad-core processor, 2.0 GHz clock frequency per
core |
| Flash memory |
256 MB |
| RAM |
1 GB |
| Power Supply and
Consumption |
|
| Power supply |
DC power adapter |
| Dimensions of the DC connector |
Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.) |
| Maximum power consumption |
9 W |
| Dimensions and
Weight |
|
| Package dimensions (W x D x H) |
278 mm x 229 mm x 77 mm (10.94 in. x 9.02 in. x 3.03
in.) |
| Product dimensions (W x D x H) |
202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1
in.) |
| Shipping weight |
1.28 kg (2.82 lbs) |
| Weight |
0.61 kg (1.33 lbs) |
| Environment and
Reliability |
|
| Cooling |
Natural cooling |
| Fan |
Fanless design |
| Mounting options |
Desk |
| Operating humidity |
10% RH to 90% RH (non-condensing) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage humidity |
5% RH to 95% RH (non-condensing) |
| Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
| Surge protection |
Service port: ± 4 kV for common mode Power connector: ± 4 kV for common mode and ± 4 kV for differential mode |
| System Performance
Capacity |
|
| Maximum number of concurrent sessions |
120000 |
| Recommended number of concurrent clients |
400 |
| Throughput |
2500 Mbps |
| Basic
Configurations |
|
| AC mode |
Yes |
| Automatically identifying the Internet access mode and
obtaining IP addresses |
Yes |
| Automatically learning the PPPoE username and password of other
routers |
Yes |
| Automatically learning the PPPoE username and password of other
routers |
Yes |
| Configuration backup |
Yes |
| Internet access mode |
Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
| Local upgrade |
Yes |
| Log upload |
Yes |
| Online upgrade |
Yes |
| Restoring factory defaults |
Yes |
| System language |
English, Chinese, Turkish, Arabic, Vietnamese, Thai,
Indonesian, Latin American Spanish, Brazilian Portuguese, Russian,
French, German, European Spanish, Italian, and Polish |
| Authentication |
|
| Portal authentication |
Yes |
| One-click authentication |
Yes |
| Password authentication |
Yes |
| SMS-based authentication |
Yes |
| Voucher authentication supported by Ruijie Cloud portal
page |
Yes |
| Cloud portal authentication |
Yes |
| Local portal authentication |
Yes |
| QR code authentication |
Yes |
| Custom portal page |
Yes |
| Account-based authentication supported by Ruijie Cloud portal
page |
Yes |
| CHAP, MS-CHAPv1, MS-CHAPv2 |
Yes |
| Delivery through Ruijie Cloud portal page |
Yes |
| 802.1X authentication |
Yes |
| MAC address-based authentication |
Yes |
| PPPoE server |
Yes |
| Number of accounts supported by the PPPoE server |
400 |
| Number of concurrent clients supported by the PPPoE
server |
200 |
| RADIUS flow control authorization |
Yes |
| PAP |
Yes |
| RADIUS authentication |
Yes |
| RADIUS client |
Yes |
| RADIUS accounting based on time or traffic |
Yes |
| RADIUS flow control authorization |
Yes |
| RADIUS proxy server |
Yes |
| RADIUS traffic quota authorization |
Yes |
| RADIUS user group authorization |
Yes |
| Third-party authentication |
Yes |
| Ethernet
Interface |
|
| Avoiding IP address conflicts on WAN interfaces |
Yes |
| Load balancing |
Yes |
| MAC address cloning |
Yes |
| Multiple WAN interfaces on the same network segment |
Yes |
| PPPoE clients |
Yes |
| Scheduled PPPoE reconnection |
No |
| Ethernet
Switching |
|
| Configuring multiple VLANs upon configuration
delivery |
No |
| Link aggregation |
No |
| LLDP |
No |
| VLAN |
Yes |
| Maximum number of VLANs |
128 |
| VLAN configuration supported on LAN ports |
Yes |
| Super-VLAN |
No |
| Configuring the same VLAN tag for multiple WAN ports |
No |
| VLAN priority |
Yes |
| Number of MAC address entries to be filtered |
512 |
| Gateway Features |
|
| WAN failover |
Yes |
| Application priority |
Yes |
| Application recognition |
Yes |
| Behaviour management |
Yes |
| QoS |
Yes |
| Time-based blocking policy IP address-based blocking
policy |
Yes |
| Website filtering: custom URL |
Yes |
| Traffic audit |
Yes |
| URL audit log |
Yes |
| Audit log server |
Yes |
| Audit log storage |
No |
| Uploading audit logs to a server |
Yes |
| IP Routing |
|
| Application-based routing |
Yes |
| Bandwidth aggregation |
Yes |
| BGP |
Yes |
| BGP4 |
Yes |
| BGP4+ |
Yes |
| ECMP |
No |
| IPv4 static route |
Yes |
| IPv6 PBR |
Yes |
| Route selection based on national address database |
Yes |
| IPv6 static route |
Yes |
| IS-ISv4 |
No |
| IS-ISv6 |
No |
| Load balancing based on flows |
Yes |
| Load balancing based on source IP addresses |
Yes |
| Load balancing based on the interface weight |
Yes |
| Route selection by link quality |
Yes |
| OSPFv2 |
Yes |
| OSPFv3 |
Yes |
| RIP |
Yes |
| RIPng |
Yes |
| IP Service |
|
| 3322.org |
Yes |
| ALG |
Yes |
| ARP binding |
Yes |
| Maximum number of ARP entries |
1024 |
| Proxy ARP |
No |
| Cloudflare |
Yes |
| DHCP client |
Yes |
| DHCP server |
Yes |
| DHCP relay |
No |
| Option 43 |
Yes |
| Option 138 |
Yes |
| Static/Dynamic NAT |
Yes |
| NAT-PT |
No |
| NAT loopback |
Yes |
| DNS client |
Yes |
| DNS proxy |
Yes |
| DNS server |
Yes |
| No-IP DNS |
Yes |
| GRE tunnel |
No |
| IPTV |
Yes |
| IPv4 ping |
Yes |
| IPv6 |
Yes |
| IPv6 ping |
Yes |
| Number of port mapping entries |
512 |
| Port mapping |
Yes |
| DDNS |
Yes |
| Ruijie DDNS |
Yes |
| Alibaba Cloud DDNS |
Yes |
| UPnP |
Yes |
| MPLS |
|
| MPLS L2VPN |
No |
| Network Management and
Monitoring |
|
| Web management |
Yes |
| Ruijie Cloud management |
Yes |
| Management on Ruijie Reyee App |
Yes |
| Remotely monitoring devices through Ruijie Reyee App |
Yes |
| Restarting devices through Ruijie Reyee App |
Yes |
| Upgrading device software version through Ruijie Reyee
App |
Yes |
| Fault diagnosis |
Yes |
| FTP client (IPv4 address) |
No |
| FTP server (IPv4 address) |
No |
| TFTP client (IPv4 address) |
Yes |
| TFTP server (IPv4 address) |
No |
| HTTPS login |
Yes |
| NTP client |
Yes |
| NTP server |
No |
| Scheduled device restart |
Yes |
| SNMPv1, v2c, and v3 |
Yes |
| SON |
Yes |
| SSH |
No |
| Telnet |
No |
| Web login information |
Default IP Address: 192.168.110.1 Default Password: admin |
| Maximum number of managed devices (router mode) |
AP and NBS series: 200 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Maximum number of managed devices (AC mode) |
AP and NBS series: 750 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Reliability |
|
| Stacking |
No |
| VRRP |
No |
| SD-WAN |
|
| SD-WAN |
Yes |
| SD-WAN performance |
750 Mbps |
| Number of tunnels supported by SD-WAN |
300 |
| Maximum number of SD-WAN branches |
100 |
| Active/Standby mode (automatically switching to the standby
interface when the active interface fails) |
Yes |
| Bypass networking for a device in AP mode |
No |
| Centralized traffic forwarding policy |
Yes |
| Multi-WAN link bundling efficiency (lab data) |
Yes |
| Security |
|
| ACL |
Yes |
| IPv6 ACL |
Yes |
| DHCP snooping |
No |
| Malformed packet attack defence |
Yes |
| Fragmentation attack defence |
Yes |
| Teardrop attack defence |
Yes |
| LAND attack defence |
Yes |
| SYN flood attack defence |
Yes |
| Smurf attack defence |
Yes |
| IP attack defence |
Yes |
| Disabling ping |
Yes |
| Stateful ACL |
Yes |
| IP-MAC binding |
Yes |
| Network sharing prevention |
Yes |
| Security log |
Yes |
| Security zone |
Yes |
| User group-based connection limiting |
Yes |
| VPN |
|
| IPsec VPN |
Yes |
| IPsec VPN bandwidth |
700 Mbps |
| Maximum number of branches in IPsec VPN networking |
100 |
| L2TP VPN |
Yes |
| L2TP VPN bandwidth |
Yes |
| Maximum number of branches in L2TP VPN networking |
100 |
| OpenVPN |
Yes |
| OpenVPN bandwidth |
200 Mbps |
| Maximum number of branches in OpenVPN networking |
100 |
| PPTP VPN |
Yes |
| PPTP VPN bandwidth |
850 Mbps |
| Maximum number of branches in PPTP VPN networking |
100 |
| SSL VPN |
No |
| Easy VPN 1.0 |
No |
| Number of VPN accounts for L2TP, PPTP, and OpenVPN |
400 |
| WireGuard server |
Yes |
| WireGuard client |
Yes |
| WireGuard performance |
750 Mbps |
| Number of concurrent tunnels supported by the WireGuard
server |
100 |
| WLAN |
|
| Maximum number of APs (AC mode) |
750 |
| Maximum number of devices that can be managed |
128 |
| Wireless Intelligent Optimization (WIO) |
Yes |
| Accessories |
|
| Rack-mount bracket |
2 |
| Power adapter |
1 |
| Rubber pad |
4 |
| User Manual |
1 |
| Warranty Card |
1 |
| Videos |
|---|
Ruijie RG-EG406XS Reyee Cloud Router, 5 Ports RJ45 2.5G + 1 SFP+ 10Gigabit
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-EG406XS Datasheet |
| Ruijie RG-EG406XS Installation Guide |
| Ruijie RG-EG406XS User Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.
Get expert answers to questions specific to this product below or for more help visit our Q&A forum
Be the first to ask a question and help others interested in this product
Read customer reviews or submit your review of this product
Your feedback helps us improve our products and services as well as helping other users make informed buying decisions.
There are no reviews for this product.
Why buy from Connectec?
SUPPORT
Our technical support team are experienced professionals with strong product knowledge and project expertise.
SERVICE
Customer service is our top priority. We’re committed to providing first-class support to every customer.
DELIVERY
We offer FREE mainland UK delivery on orders over £75 and FREE next day delivery on orders over £150*.
PARTNERS
We are approved distributors, offering direct access to full manufacturer warranties and support.
* Qualifying products only, subject to terms. For more information view our delivery information.
